Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

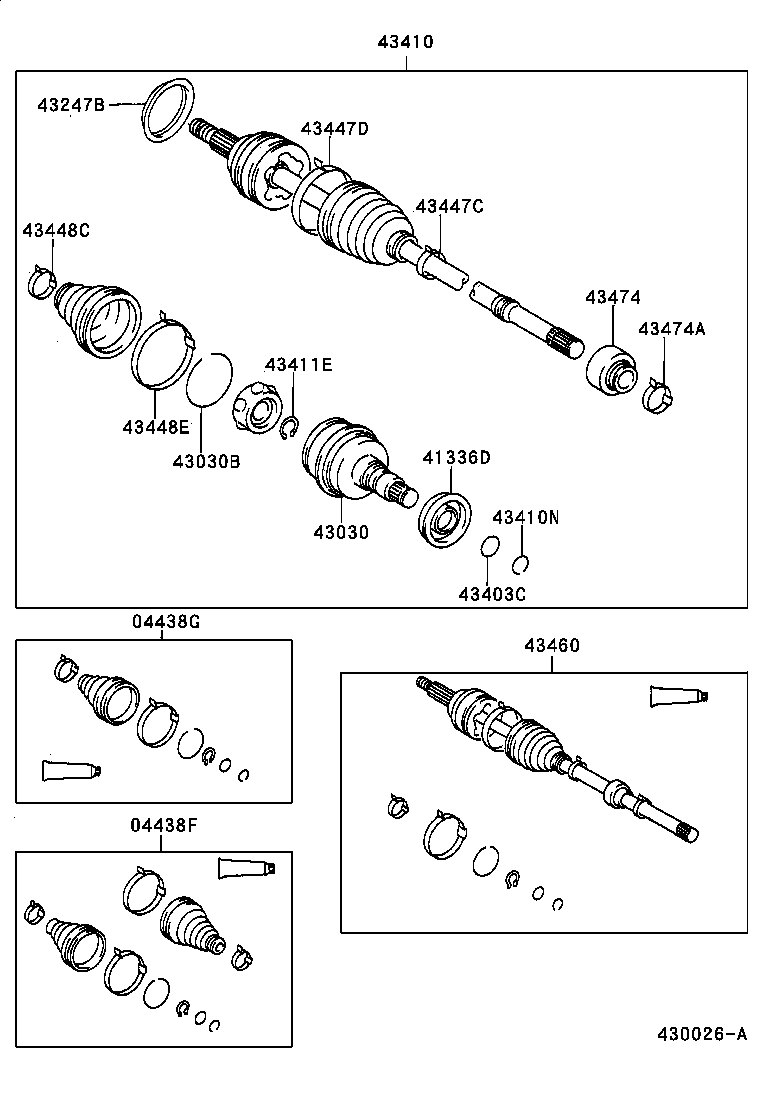

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH | ||||
| 04438-20130 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
1993-11 → 1998-04
ended
|
ST204 ATM | — | |
| 04438-20131 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
1998-04 → —
|
ST204 ATM | — | |
| 04438-20150 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
1993-11 → 1998-05
ended
|
ST202;ST204 MTM | — | |
| 04438-20270 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
1994-02 → 1995-02
ended
|
ST205 | — | |
| 04438-20280 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
1995-02 → —
|
ST205 | — | |
| 04438-20370 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
1998-05 → 1998-09
ended
|
ST202;ST204 MTM | — | |
| 04438-20371 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
1998-09 → —
|
ST202;ST204 MTM | — | |
| 04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH | ||||
| 04438-20120 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
1993-11 → 1998-04
ended
|
ST204 ATM | — | |
| 04438-20121 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
1998-04 → —
|
ST204 ATM | — | |
| 04438-20140 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
1993-11 → 1998-05
ended
|
ST202;ST204 MTM | — | |
| 04438-20260 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
1994-02 → —
|
ST205 | — | |
| 04438-20360 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
1998-05 → 1998-09
ended
|
ST202;ST204 MTM | — | |
| 04438-20361 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
1998-09 → —
|
ST202;ST204 MTM | — | |
| 41336D — Cover, Front Drive Shaft Dust, RH | ||||
| 41336-20011 |
Cover, Front Drive Shaft Dust, RH
1993-11 → 1999-08
ended
|
ST202,204 | — | |
| 41336-20040 |
Cover, Front Drive Shaft Dust, RH
1994-02 → 1999-08
ended
|
ST205 | — | |
| 43030 — Joint Assy, Front Drive Inboard, RH | ||||
| 43030-20030 |
Joint Assy, Front Drive Inboard, RH
1993-11 → 1998-06
ended
|
ST204 ATM | — | |
| 43030-20040 |
Joint Assy, Front Drive Inboard, RH
1993-11 → —
|
ST202;ST204 MTM | — | |
| 43030-20070 |
Joint Assy, Front Drive Inboard, RH
1994-02 → —
|
ST205 | — | |
| 43030-32060 |
Joint Assy, Front Drive Inboard, RH
1998-06 → —
|
ST204 ATM | — | |
| 43030B — Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH) | ||||
| 90521-79001 |
Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
1994-02 → —
|
ST205 | — | |
| 43247B — Deflector, Front Wheel Bearing Dust, RH NO.2 | ||||
| 43247-12010 note |
Deflector, Front Wheel Bearing Dust, RH NO.2
1993-11 → —
|
ST20# | — | |
| 43247-33010 |
Deflector, Front Wheel Bearing Dust, RH NO.2
1993-11 → —
|
ST202,204 | — | |
| 43403C — Ring, O (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90301-26006 |
Ring, O (FOR FRONT DRIVE INBOARD JOINT)
1994-02 → —
|
ST205 | — | |
| 43410 — Shaft Assy, Front Drive, RH | ||||
| 43410-20520 |
Shaft Assy, Front Drive, RH
1995-02 → 1996-04
ended
|
ST205 | — | |
| 43410-20521 |
Shaft Assy, Front Drive, RH
1996-04 → —
|
ST205 | — | |
| 43410-20610 note |
Shaft Assy, Front Drive, RH
1993-11 → 1997-09
ended
|
ST204 ATM | — | |
| 43410-20611 note |
Shaft Assy, Front Drive, RH
1997-09 → 1999-01
ended
|
ST204 ATM | — | |
| 43410-20612 note |
Shaft Assy, Front Drive, RH
1999-01 → —
|
ST204 ATM | — | |
| 43410-20660 |
Shaft Assy, Front Drive, RH
1994-02 → 1995-02
ended
|
ST205 | — | |
| 43410-20670 |
Shaft Assy, Front Drive, RH
1993-11 → 1997-12
ended
|
ST202;ST204 MTM | — | |
| 43410-20671 |
Shaft Assy, Front Drive, RH
1997-12 → 1998-05
ended
|
ST202;ST204 MTM | — | |
| 43410-20672 |
Shaft Assy, Front Drive, RH
1998-05 → —
|
ST202;ST204 MTM | — | |
| 43410-20680 note |
Shaft Assy, Front Drive, RH
1993-11 → 1997-12
ended
|
ST202;ST204 MTM | — | |
| 43410-20681 note |
Shaft Assy, Front Drive, RH
1997-12 → 1998-05
ended
|
ST202;ST204 MTM | — | |
| 43410-20682 note |
Shaft Assy, Front Drive, RH
1998-05 → —
|
ST202;ST204 MTM | — | |
| 43410-20720 |
Shaft Assy, Front Drive, RH
1993-11 → 1997-09
ended
|
ST204 ATM | — | |
| 43410-20721 |
Shaft Assy, Front Drive, RH
1997-09 → 1999-01
ended
|
ST204 ATM | — | |
| 43410-20722 |
Shaft Assy, Front Drive, RH
1999-01 → —
|
ST204 ATM | — | |
| 43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-26004 |
Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
1994-02 → —
|
ST205 | — | |
| 43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1993-11 → —
|
ST204 ATM | — | |
| 90520-25034 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1994-02 → —
|
ST205 | — | |
| 90520-26048 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1993-11 → —
|
ST202;ST204 MTM | — | |
| 43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-16030 note |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-11 → —
|
ST204 ATM | — | |
| 42345-16030 note |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1997-09 → 1999-01
ended
|
ST204 ATM | — | |
| 42345-16030 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-11 → 1997-09
ended
|
ST204 ATM | — | |
| 42345-16040 note |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-11 → —
|
ST204 ATM | — | |
| 42345-16050 note |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-11 → 1998-05
ended
|
ST202;ST204 MTM | — | |
| 42345-16060 note |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-11 → 1998-05
ended
|
ST202;ST204 MTM | — | |
| 42345-20040 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1998-05 → —
|
ST202;ST204 MTM | — | |
| 42345-20090 note |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-01 → —
|
ST204 ATM | — | |
| 42345-20100 note |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-01 → —
|
ST204 ATM | — | |
| 90949-01938 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1994-02 → —
|
ST205 | — | |
| 43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-16040 note |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-11 → 1999-01
ended
|
ST204 ATM | — | |
| 42345-16060 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-11 → 1998-05
ended
|
ST202;ST204 MTM | — | |
| 42345-20030 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1998-05 → —
|
ST202;ST204 MTM | — | |
| 42345-20110 note |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-01 → —
|
ST204 ATM | — | |
| 42345-20120 note |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-01 → —
|
ST204 ATM | — | |
| 90949-01937 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1994-02 → —
|
ST205 | — | |
| 43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16010 note |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-11 → —
|
ST204 ATM | — | |
| 42345-16040 note |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-11 → —
|
ST204 ATM | — | |
| 42345-16050 note |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-11 → 1998-05
ended
|
ST202;ST204 MTM | — | |
| 42345-16050 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-11 → —
|
ST202;ST204 MTM | — | |
| 42345-16090 note |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-11 → —
|
ST202;ST204 MTM | — | |
| 90949-01108 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1994-02 → —
|
ST205 | — | |
| 43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16040 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-11 → 1999-08
ended
|
ST204 ATM | — | |
| 42345-30010 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-11 → 1999-08
ended
|
ST202;ST204 MTM | — | |
| 42346-22010 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1994-02 → 1999-08
ended
|
ST205 | — | |
| 43460 — Shaft Assy, Front Drive Outboard Joint, RH | ||||
| 43470-29325 note |
Shaft Assy, Front Drive Outboard Joint, RH
1993-11 → 1997-12
ended
|
ST202;ST204 MTM | — | |
| 43470-29326 note |
Shaft Assy, Front Drive Outboard Joint, RH
1997-12 → 1998-05
ended
|
ST202;ST204 MTM | — | |
| 43470-29327 note |
Shaft Assy, Front Drive Outboard Joint, RH
1998-05 → 1998-06
ended
|
ST202;ST204 MTM | — | |
| 43470-29328 note |
Shaft Assy, Front Drive Outboard Joint, RH
1998-06 → —
|
ST202;ST204 MTM | — | |
| 43470-29335 note |
Shaft Assy, Front Drive Outboard Joint, RH
1993-11 → 1997-09
ended
|
ST204 ATM | — | |
| 43470-29336 note |
Shaft Assy, Front Drive Outboard Joint, RH
1997-09 → 1998-04
ended
|
ST204 ATM | — | |
| 43470-29337 note |
Shaft Assy, Front Drive Outboard Joint, RH
1998-04 → 1999-01
ended
|
ST204 ATM | — | |
| 43470-29338 note |
Shaft Assy, Front Drive Outboard Joint, RH
1999-01 → —
|
ST204 ATM | — | |
| 43470-29365 |
Shaft Assy, Front Drive Outboard Joint, RH
1993-11 → 1997-12
ended
|
ST202;ST204 MTM | — | |
| 43470-29366 |
Shaft Assy, Front Drive Outboard Joint, RH
1997-12 → 1998-05
ended
|
ST202;ST204 MTM | — | |
| 43470-29367 |
Shaft Assy, Front Drive Outboard Joint, RH
1998-05 → 1998-06
ended
|
ST202;ST204 MTM | — | |
| 43470-29368 |
Shaft Assy, Front Drive Outboard Joint, RH
1998-06 → —
|
ST202;ST204 MTM | — | |
| 43470-29375 |
Shaft Assy, Front Drive Outboard Joint, RH
1993-11 → 1997-09
ended
|
ST204 ATM | — | |
| 43470-29376 |
Shaft Assy, Front Drive Outboard Joint, RH
1997-09 → 1998-04
ended
|
ST204 ATM | — | |
| 43470-29377 |
Shaft Assy, Front Drive Outboard Joint, RH
1998-04 → 1999-01
ended
|
ST204 ATM | — | |
| 43470-29378 |
Shaft Assy, Front Drive Outboard Joint, RH
1999-01 → —
|
ST204 ATM | — | |
| 43470-29455 |
Shaft Assy, Front Drive Outboard Joint, RH
1994-02 → 1995-02
ended
|
ST205 | — | |
| 43470-29465 |
Shaft Assy, Front Drive Outboard Joint, RH
1995-02 → 1996-04
ended
|
ST205 | — | |
| 43470-29466 |
Shaft Assy, Front Drive Outboard Joint, RH
1996-04 → —
|
ST205 | — | |
| 43474 — Damper, Drive Shaft | ||||
| 43474-20080 |
Damper, Drive Shaft
1994-02 → 1995-02
ended
|
ST205 | — | |
| 43474-20090 |
Damper, Drive Shaft
1993-11 → 1995-02
ended
|
ST202;ST204 MTM | — | |
| 43474-20090 |
Damper, Drive Shaft
1995-02 → —
|
ST202,205;ST204 MTM | — | |
| 43474A — Clamp (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-16010 |
Clamp (FOR DRIVE SHAFT DAMPER SETTING)
1994-02 → 1995-02
ended
|
ST205 | — | |
| 90949-01696 |
Clamp (FOR DRIVE SHAFT DAMPER SETTING)
1993-11 → 1995-02
ended
|
ST202;ST204 MTM | — | |
| 90949-01696 |
Clamp (FOR DRIVE SHAFT DAMPER SETTING)
1995-02 → —
|
ST202,205;ST204 MTM | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
