Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

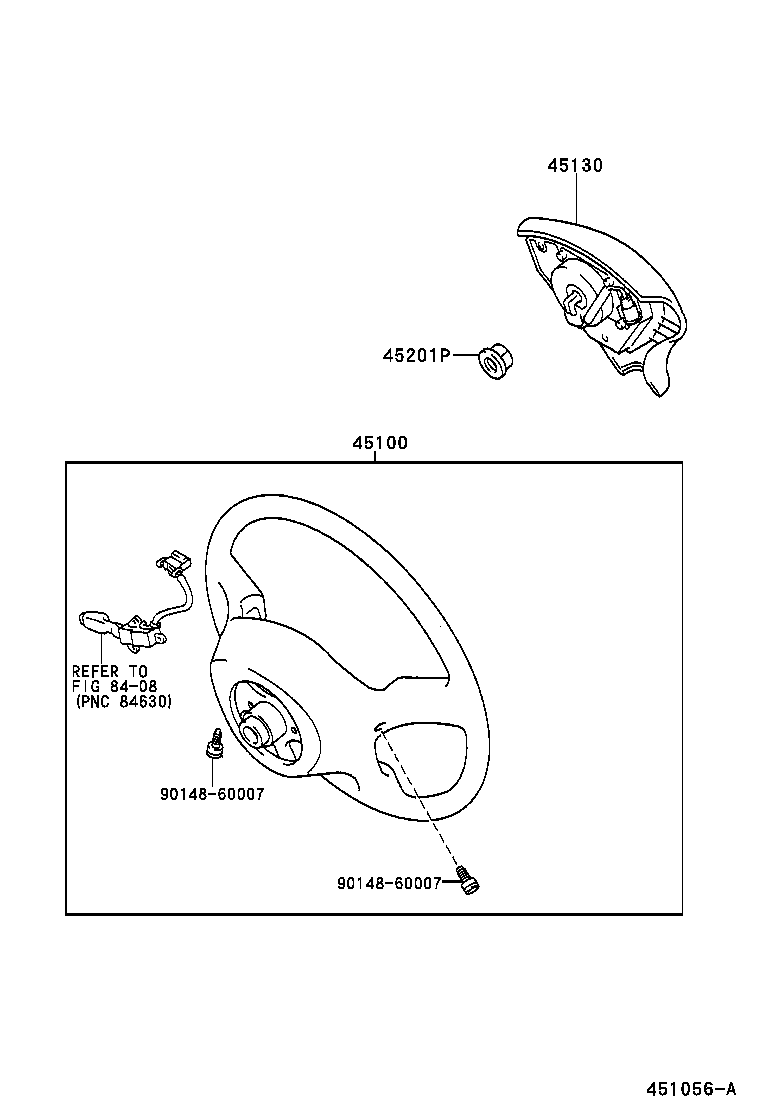

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45100 — Wheel Assy, Steering | ||||
| 45100-12891-C1 note |
Wheel Assy, Steering
1997-12 → —
|
ST205 | — | |
| 45100-12891-C2 note |
Wheel Assy, Steering
1997-12 → —
|
ST205 | — | |
| 45100-14640-C0 note |
Wheel Assy, Steering
1997-12 → —
|
ST202 GCC | — | |
| 45100-14650-C1 note |
Wheel Assy, Steering
1997-12 → —
|
ST204 | — | |
| 45100-2B260-C0 note |
Wheel Assy, Steering
1995-08 → 1996-07
ended
|
ST204 | — | |
| 45100-2B290-C0 note |
Wheel Assy, Steering
1995-08 → —
|
ST202,204 ARL,GEN | — | |
| 45100-2B290-C0 note |
Wheel Assy, Steering
1993-11 → 1995-08
ended
|
ST202,204 | — | |
| 45100-2B310-C0 note |
Wheel Assy, Steering
1993-11 → 1995-08
ended
|
ST204,205 | — | |
| 45100-2B310-C0 note |
Wheel Assy, Steering
1995-08 → —
|
ST204 | — | |
| 45100-2B330-C0 note |
Wheel Assy, Steering
1993-11 → —
|
ST204 | — | |
| 45100-2B340-C0 note |
Wheel Assy, Steering
1993-11 → 1995-08
ended
|
ST204 | — | |
| 45100-2B360-C0 note |
Wheel Assy, Steering
1993-11 → 1995-08
ended
|
ST204,205 | — | |
| 45100-2B380-C0 note |
Wheel Assy, Steering
1993-11 → 1995-08
ended
|
ST204 | — | |
| 45100-2B430-C0 note |
Wheel Assy, Steering
1995-08 → 1996-07
ended
|
ST204 | — | |
| 45100-2B460-C0 note |
Wheel Assy, Steering
1995-08 → 1996-12
ended
|
ST202 GCC | — | |
| 45100-2B480-C0 note |
Wheel Assy, Steering
1995-08 → 1996-12
ended
|
ST205 | — | |
| 45100-2B490-C0 note |
Wheel Assy, Steering
1995-08 → 1997-12
ended
|
ST204 | — | |
| 45100-2B520-C0 note |
Wheel Assy, Steering
1995-08 → 1996-07
ended
|
ST204 | — | |
| 45100-2B590-C0 note |
Wheel Assy, Steering
1996-12 → 1997-12
ended
|
ST202 GCC | — | |
| 45100-2B610-C0 note |
Wheel Assy, Steering
1996-12 → 1997-12
ended
|
ST205 | — | |
| 45100-2B640-C0 note |
Wheel Assy, Steering
1996-08 → 1997-12
ended
|
ST204 | — | |
| 45100-2B650-C0 note |
Wheel Assy, Steering
1996-08 → 1997-12
ended
|
ST204 | — | |
| 45100-2B660-C0 note |
Wheel Assy, Steering
1996-08 → 1997-12
ended
|
ST204 | — | |
| 45130 — Button Assy, Horn | ||||
| 45130-14360-C0 note |
Button Assy, Horn
1997-12 → —
|
ST20# ARL,GCC | — | |
| 45130-2B230-C0 note |
Button Assy, Horn
1995-08 → 1997-12
ended
|
ST20# ARL,GCC | — | |
| 45130-2B270-C0 note |
Button Assy, Horn
1993-11 → 1995-08
ended
|
ST20# | — | |
| 45130-2B270-C0 note |
Button Assy, Horn
1995-08 → —
|
ST202,204 ARL,GEN | — | |
| 45130-2B290-C0 note |
Button Assy, Horn
1993-11 → 1995-08
ended
|
ST204,205 | — | |
| 45130-2B400-C0 note |
Button Assy, Horn
1996-07 → 1997-12
ended
|
ST204 | — | |
| 45130-42020-C0 note |
Button Assy, Horn
1995-08 → 1996-07
ended
|
ST204 | — | |
| 45201P — Nut, Steering Wheel Set | ||||
| 90179-12071 |
Nut, Steering Wheel Set
1993-11 → —
|
ST20# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
