Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

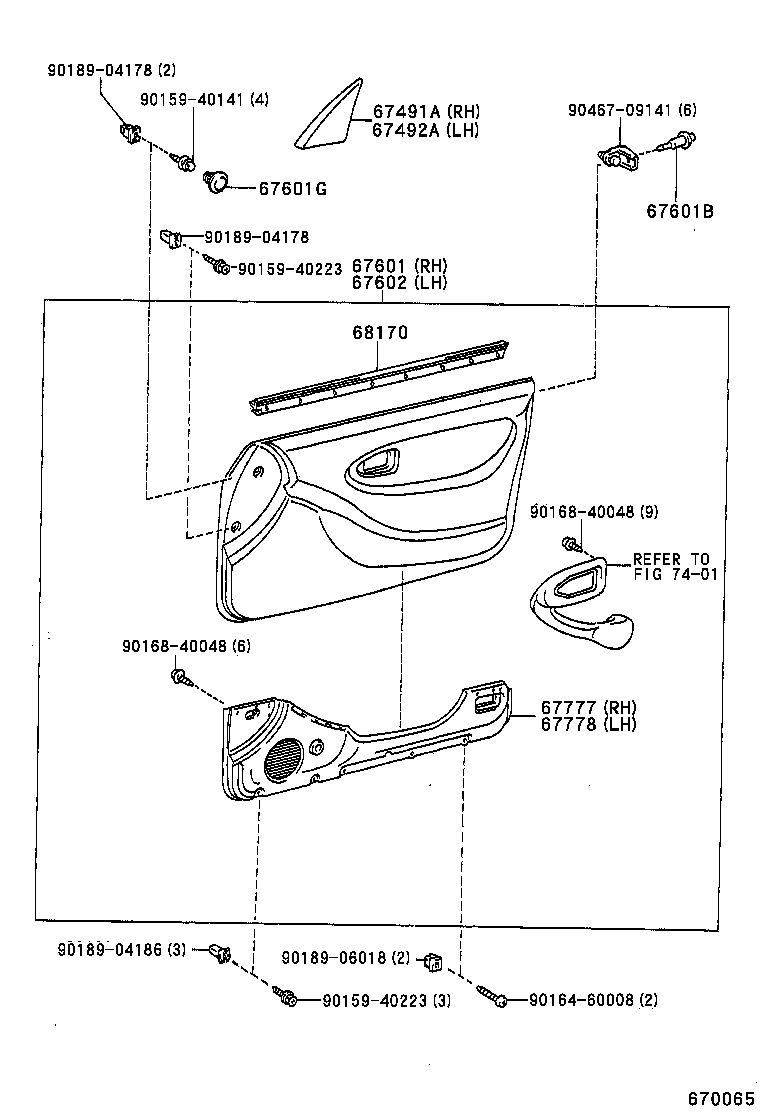

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67491A — Garnish, Front Door Lower Frame Bracket, RH | ||||
| 67491-20320 |
Garnish, Front Door Lower Frame Bracket, RH
1995-08 → —
|
ST202 | — | |
| 67491-20320 |
Garnish, Front Door Lower Frame Bracket, RH
1993-11 → 1995-08
ended
|
ST20# | — | |
| 67491-20330 |
Garnish, Front Door Lower Frame Bracket, RH
1995-08 → —
|
ST204,205 | — | |
| 67492A — Garnish, Front Door Lower Frame Bracket, LH | ||||
| 67492-20320 |
Garnish, Front Door Lower Frame Bracket, LH
1993-11 → 1995-08
ended
|
ST20# | — | |
| 67492-20320 |
Garnish, Front Door Lower Frame Bracket, LH
1995-08 → —
|
ST202 | — | |
| 67492-20330 |
Garnish, Front Door Lower Frame Bracket, LH
1995-08 → —
|
ST204,205 | — | |
| 67601 — Board Sub-assy, Front Door Trim, RH | ||||
| 67610-2G090-C1 note |
Board Sub-assy, Front Door Trim, RH
1993-11 → 1995-08
ended
|
ST202 | — | |
| 67610-2G100-C1 note |
Board Sub-assy, Front Door Trim, RH
1993-11 → 1995-08
ended
|
ST202 | — | |
| 67610-2G120-C1 note |
Board Sub-assy, Front Door Trim, RH
1993-11 → 1995-08
ended
|
ST204,205 | — | |
| 67610-2G130-C1 note |
Board Sub-assy, Front Door Trim, RH
1994-02 → 1995-08
ended
|
ST205 | — | |
| 67650-2D820-C0 note |
Board Sub-assy, Front Door Trim, RH
1995-08 → 1996-09
ended
|
ST202 | — | |
| 67650-2D821-C1 note |
Board Sub-assy, Front Door Trim, RH
1996-09 → —
|
ST202 | — | |
| 67650-2D830-C0 note |
Board Sub-assy, Front Door Trim, RH
1995-08 → 1996-09
ended
|
ST204,205 | — | |
| 67650-2D831-C1 note |
Board Sub-assy, Front Door Trim, RH
1996-09 → —
|
ST204,205 | — | |
| 67650-2D840-C0 note |
Board Sub-assy, Front Door Trim, RH
1995-08 → 1996-09
ended
|
ST205 | — | |
| 67650-2D841-C0 note |
Board Sub-assy, Front Door Trim, RH
1996-09 → —
|
ST205 | — | |
| 67601B — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07066-22 note |
Clip(FOR FRONT DOOR TRIM BOARD)
1993-11 → —
|
ST20# | — | |
| 67601G — Plug, Hole(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800-C0 note |
Plug, Hole(FOR FRONT DOOR TRIM BOARD)
1994-08 → —
|
ST20# | — | |
| 90950-01800-C0 note |
Plug, Hole(FOR FRONT DOOR TRIM BOARD)
1994-02 → 1994-08
ended
|
ST20# RHD | — | |
| 90950-01800-C0 note |
Plug, Hole(FOR FRONT DOOR TRIM BOARD)
1993-11 → 1994-02
ended
|
ST20# | — | |
| 67602 — Board Sub-assy, Front Door Trim, LH | ||||
| 67620-2L090-C1 note |
Board Sub-assy, Front Door Trim, LH
1993-11 → 1995-08
ended
|
ST202 | — | |
| 67620-2L100-C1 note |
Board Sub-assy, Front Door Trim, LH
1993-11 → 1995-08
ended
|
ST202 | — | |
| 67620-2L120-C1 note |
Board Sub-assy, Front Door Trim, LH
1993-11 → 1995-08
ended
|
ST204,205 | — | |
| 67620-2L130-C1 note |
Board Sub-assy, Front Door Trim, LH
1994-02 → 1995-08
ended
|
ST205 | — | |
| 67620-2L590-C0 note |
Board Sub-assy, Front Door Trim, LH
1995-08 → 1996-09
ended
|
ST202 | — | |
| 67620-2L591-C1 note |
Board Sub-assy, Front Door Trim, LH
1996-09 → —
|
ST202 | — | |
| 67620-2L600-C0 note |
Board Sub-assy, Front Door Trim, LH
1995-08 → 1996-09
ended
|
ST204,205 | — | |
| 67620-2L601-C1 note |
Board Sub-assy, Front Door Trim, LH
1996-09 → —
|
ST204,205 | — | |
| 67620-2L610-C0 note |
Board Sub-assy, Front Door Trim, LH
1995-08 → 1996-09
ended
|
ST205 | — | |
| 67620-2L611-C0 note |
Board Sub-assy, Front Door Trim, LH
1996-09 → —
|
ST205 | — | |
| 67777 — Pocket, Front Door Trim, RH | ||||
| 67777-20220-C0 note |
Pocket, Front Door Trim, RH
1993-11 → 1995-08
ended
|
ST202 | — | |
| 67777-20230-C0 note |
Pocket, Front Door Trim, RH
1993-11 → —
|
ST20# | — | |
| 67778 — Pocket, Front Door Trim, LH | ||||
| 67778-20220-C0 note |
Pocket, Front Door Trim, LH
1993-11 → 1995-08
ended
|
ST202 | — | |
| 67778-20230-C0 note |
Pocket, Front Door Trim, LH
1993-11 → —
|
ST20# | — | |
| 68170 — Weatherstrip Assy, Front Door Glass, Inner | ||||
| 68170-20400 note |
Weatherstrip Assy, Front Door Glass, Inner
1993-11 → —
|
ST20# | — | |
| 68220-20300 note |
Weatherstrip Assy, Front Door Glass, Inner
1993-11 → —
|
ST20# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
