Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

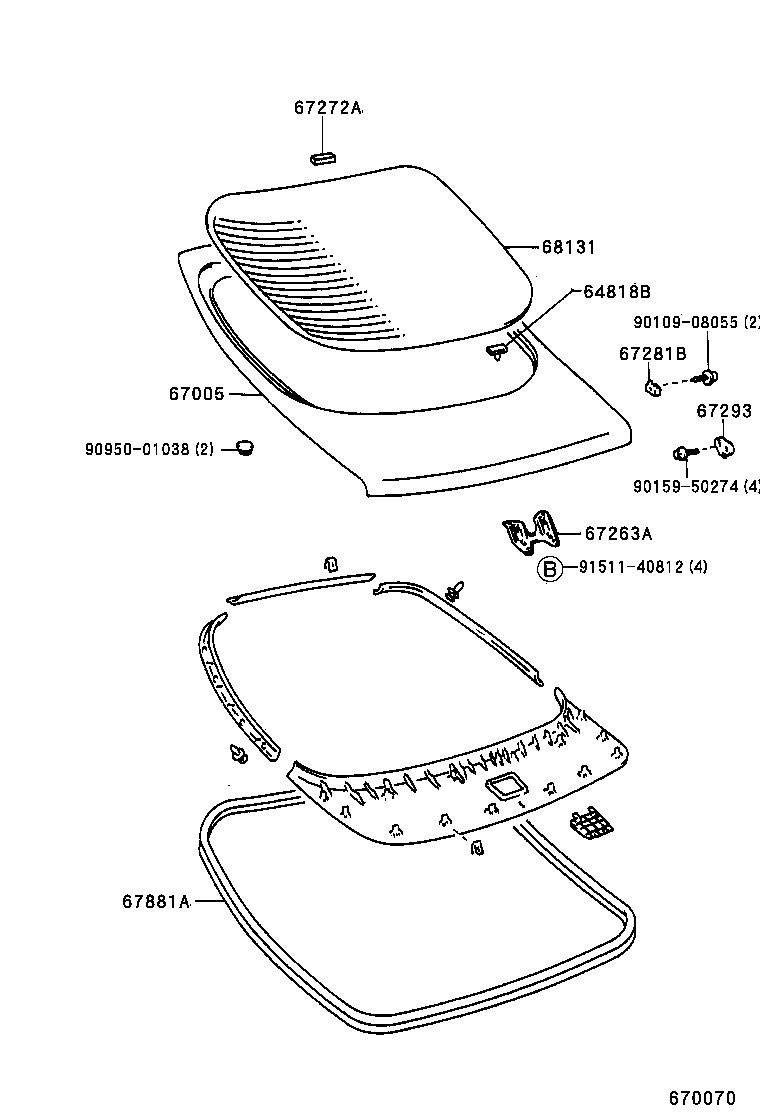

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64818B — Spacer, Back Door Glass, NO.1 | ||||
| 64818-20120 |
Spacer, Back Door Glass, NO.1
1993-11 → —
|
ST20# | — | |
| 67005 — Panel Sub-assy, Back Door | ||||
| 67005-2B520 note |
Panel Sub-assy, Back Door
1995-08 → —
|
ST202,204 | — | |
| 67005-2B530 note |
Panel Sub-assy, Back Door
1993-11 → 1995-08
ended
|
ST202 GEN | — | |
| 67005-2B550 note |
Panel Sub-assy, Back Door
1995-08 → —
|
ST20# | — | |
| 67005-2B560 note |
Panel Sub-assy, Back Door
1993-11 → 1995-08
ended
|
ST202,204 | — | |
| 67005-2B580 |
Panel Sub-assy, Back Door
1995-08 → —
|
ST202 GEN | — | |
| 67005-2B590 note |
Panel Sub-assy, Back Door
1993-11 → 1995-08
ended
|
ST20# | — | |
| 67005-2B610 note |
Panel Sub-assy, Back Door
1995-08 → —
|
ST202 GEN | — | |
| 67005-2B620 |
Panel Sub-assy, Back Door
1993-11 → 1995-08
ended
|
ST202 GEN | — | |
| 67263A — Plate, Back Door Reinforcement, NO.2 RH | ||||
| 67263-20020 |
Plate, Back Door Reinforcement, NO.2 RH
1993-11 → —
|
ST20# | — | |
| 67272A — Cushion, Back Door Stopper, NO.2 | ||||
| 67272-20010 |
Cushion, Back Door Stopper, NO.2
1993-11 → —
|
ST20# | — | |
| 67281B — Stopper, Back Door, Lower | ||||
| 67281-20050 |
Stopper, Back Door, Lower
1993-11 → —
|
ST20# | — | |
| 67293 — Cushion, Back Door Lower Stopper | ||||
| 67293-20040 |
Cushion, Back Door Lower Stopper
1993-11 → —
|
ST20# | — | |
| 67881A — Weatherstrip, Back Door | ||||
| 67881-20130 |
Weatherstrip, Back Door
1993-11 → —
|
ST20# | — | |
| 68131 — Glass, Back Door | ||||
| 68131-20620 note |
Glass, Back Door
1993-11 → 1995-08
ended
|
ST20# | — | |
| 68131-20650 note |
Glass, Back Door
1995-08 → —
|
ST20# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
