Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

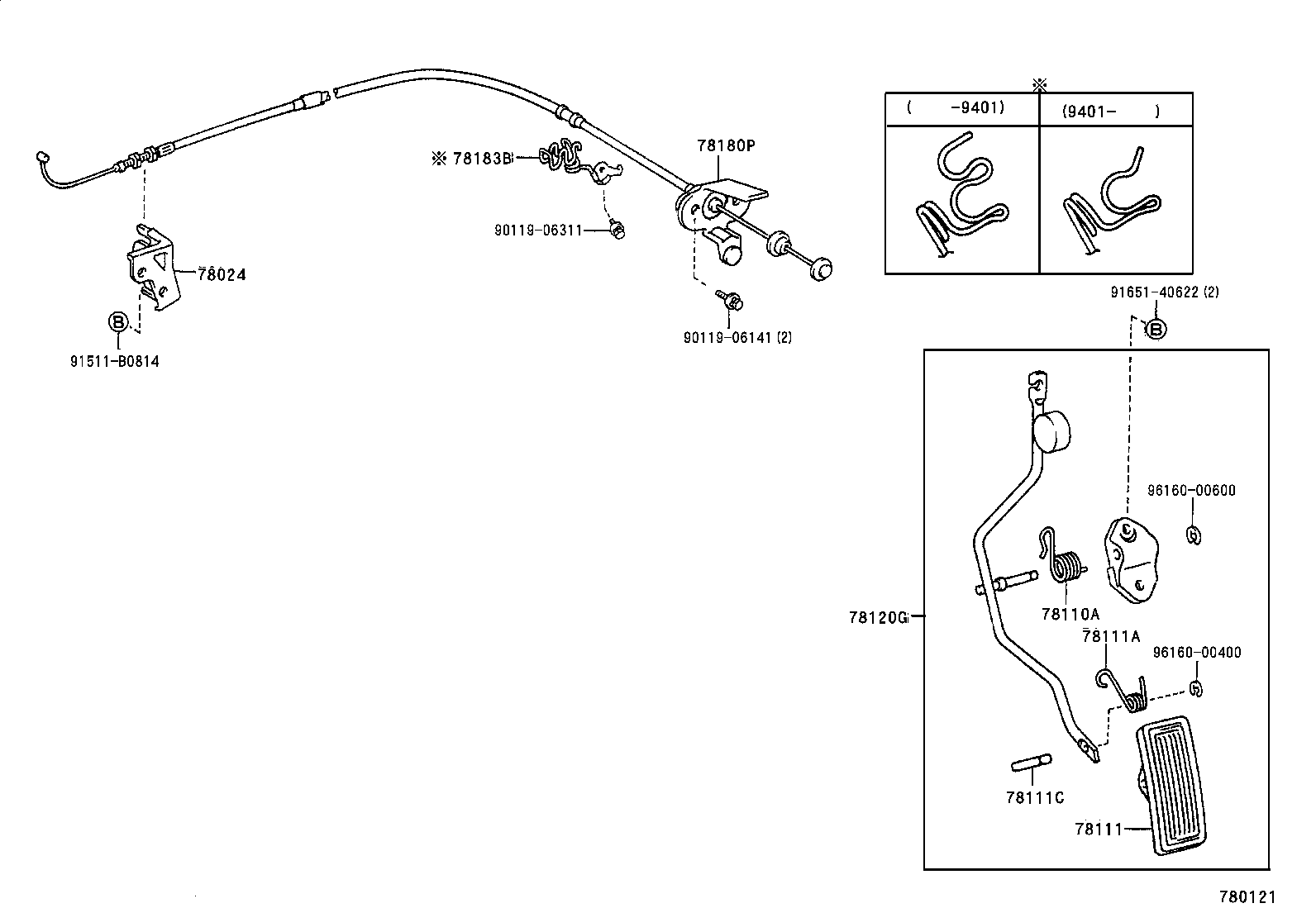

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78024 — Bracket Sub-assy, Accelerator Control Cable | ||||
| 78024-20090 |
Bracket Sub-assy, Accelerator Control Cable
1993-11 → —
|
ST202,204 | — | |
| 78024-88480 |
Bracket Sub-assy, Accelerator Control Cable
1994-02 → —
|
ST205 | — | |
| 78110A — Spring (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18048 |
Spring (FOR ACCELERATOR PEDAL ROD)
1993-11 → —
|
ST204 ATM | — | |
| 90508-26054 |
Spring (FOR ACCELERATOR PEDAL ROD)
1993-11 → —
|
ST20# RHD MTM | — | |
| 90959-03038 |
Spring (FOR ACCELERATOR PEDAL ROD)
1993-11 → —
|
ST202 ATM | — | |
| 90959-03039 |
Spring (FOR ACCELERATOR PEDAL ROD)
1993-11 → —
|
ST202 LHD MTM | — | |
| 78111 — Pedal, Accelerator | ||||
| 78111-20030 |
Pedal, Accelerator
1993-11 → 1995-08
ended
|
ST20# | — | |
| 78111A — Spring (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
Spring (FOR ACCELERATOR PEDAL)
1993-11 → 1995-08
ended
|
ST20# | — | |
| 78111C — Pin (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
Pin (FOR ACCELERATOR PEDAL)
1993-11 → 1995-08
ended
|
ST20# | — | |
| 90249-05001 |
Pin (FOR ACCELERATOR PEDAL)
1995-08 → —
|
ST202 ATM | — | |
| 78120G — Rod Assy, Accelerator Pedal | ||||
| 78120-20590 |
Rod Assy, Accelerator Pedal
1993-11 → 1995-08
ended
|
ST20# RHD MTM | — | |
| 78120-20600 |
Rod Assy, Accelerator Pedal
1993-11 → 1995-08
ended
|
ST204 ATM | — | |
| 78120-20610 |
Rod Assy, Accelerator Pedal
1993-11 → 1995-08
ended
|
ST202 LHD MTM | — | |
| 78120-20620 |
Rod Assy, Accelerator Pedal
1993-11 → 1995-08
ended
|
ST202 ATM | — | |
| 78120-20630 |
Rod Assy, Accelerator Pedal
1995-08 → —
|
ST20# RHD MTM | — | |
| 78120-20640 |
Rod Assy, Accelerator Pedal
1995-08 → —
|
ST204 ATM | — | |
| 78120-20650 |
Rod Assy, Accelerator Pedal
1995-08 → —
|
ST202 LHD MTM | — | |
| 78120-20660 |
Rod Assy, Accelerator Pedal
1995-08 → —
|
ST202 ATM | — | |
| 78180P — Cable Assy, Accelerator Control | ||||
| 78180-2D280 |
Cable Assy, Accelerator Control
1993-11 → 1995-08
ended
|
ST202,204 RHD | — | |
| 78180-2D280 note |
Cable Assy, Accelerator Control
1994-01 → 1995-08
ended
|
ST204 | — | |
| 78180-2D300 |
Cable Assy, Accelerator Control
1994-02 → 1995-08
ended
|
ST205 | — | |
| 78180-2D340 |
Cable Assy, Accelerator Control
1993-11 → 1995-08
ended
|
ST202 LHD | — | |
| 78180-2D390 |
Cable Assy, Accelerator Control
1995-08 → —
|
ST205 | — | |
| 78180-2D400 |
Cable Assy, Accelerator Control
1995-08 → —
|
ST202,204 RHD | — | |
| 78180-2D450 |
Cable Assy, Accelerator Control
1995-08 → —
|
ST202 LHD | — | |
| 78183B — Clamp, Accelerator Control Cable | ||||
| 78183-20310 |
Clamp, Accelerator Control Cable
1993-11 → 1994-01
ended
|
ST20# RHD | — | |
| 78183-20330 |
Clamp, Accelerator Control Cable
1994-01 → —
|
ST20# RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
