Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

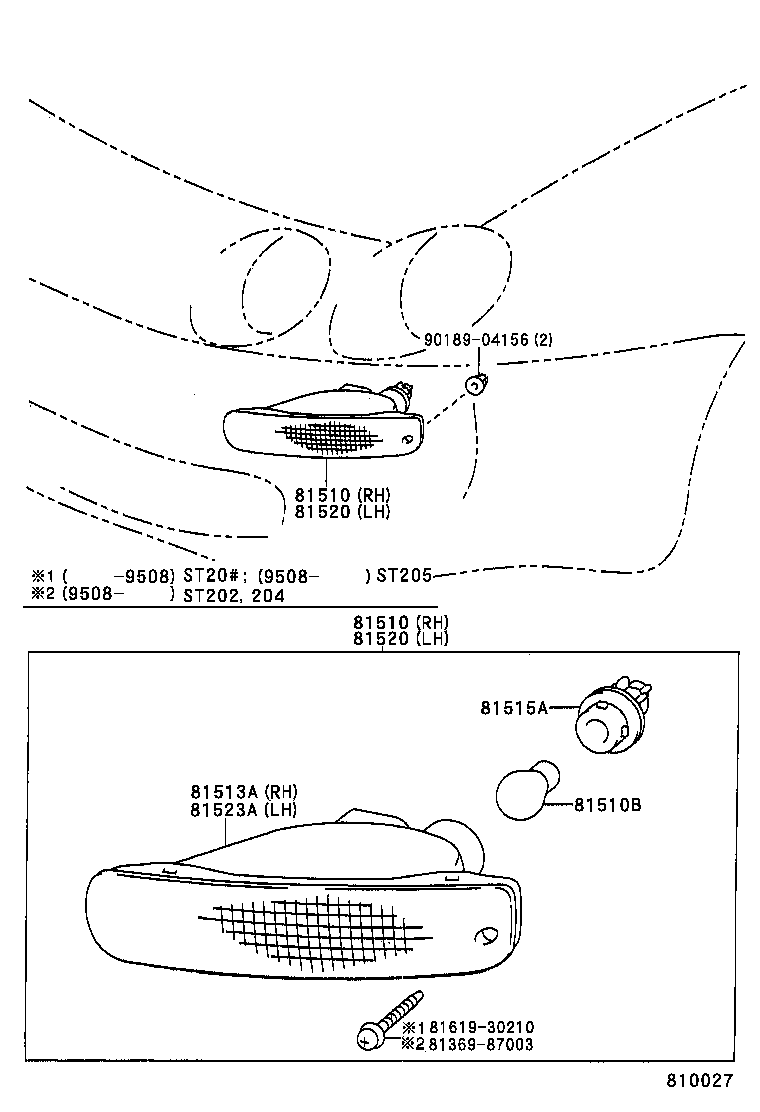

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81510 — Lamp Assy, Front Turn Signal, RH | ||||
| 81510-20680 |
Lamp Assy, Front Turn Signal, RH
1995-08 → —
|
ST202,204 | — | |
| 81510-20730 |
Lamp Assy, Front Turn Signal, RH
1993-11 → 1995-08
ended
|
ST202,204 | — | |
| 81510-20750 |
Lamp Assy, Front Turn Signal, RH
1994-02 → —
|
ST205 | — | |
| 81510B — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
1993-11 → —
|
ST20# | — | |
| 81513A — Unit Assy, Front Turn Signal Lamp, RH | ||||
| 81511-20680 |
Unit Assy, Front Turn Signal Lamp, RH
1995-08 → —
|
ST202,204 | — | |
| 81511-20730 |
Unit Assy, Front Turn Signal Lamp, RH
1993-11 → 1995-08
ended
|
ST202,204 | — | |
| 81511-20750 |
Unit Assy, Front Turn Signal Lamp, RH
1994-02 → —
|
ST205 | — | |
| 81515A — Plug Assy, Front Turn Signal Lamp | ||||
| 90075-99078 |
Plug Assy, Front Turn Signal Lamp
1993-11 → —
|
ST20# | — | |
| 81520 — Lamp Assy, Front Turn Signal, LH | ||||
| 81520-20660 |
Lamp Assy, Front Turn Signal, LH
1995-08 → —
|
ST202,204 | — | |
| 81520-20730 |
Lamp Assy, Front Turn Signal, LH
1993-11 → 1995-08
ended
|
ST202,204 | — | |
| 81520-20750 |
Lamp Assy, Front Turn Signal, LH
1994-02 → —
|
ST205 | — | |
| 81523A — Unit Assy, Front Turn Signal Lamp, LH | ||||
| 81521-20660 |
Unit Assy, Front Turn Signal Lamp, LH
1995-08 → —
|
ST202,204 | — | |
| 81521-20730 |
Unit Assy, Front Turn Signal Lamp, LH
1993-11 → 1995-08
ended
|
ST202,204 | — | |
| 81521-20750 |
Unit Assy, Front Turn Signal Lamp, LH
1994-02 → —
|
ST205 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
