Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

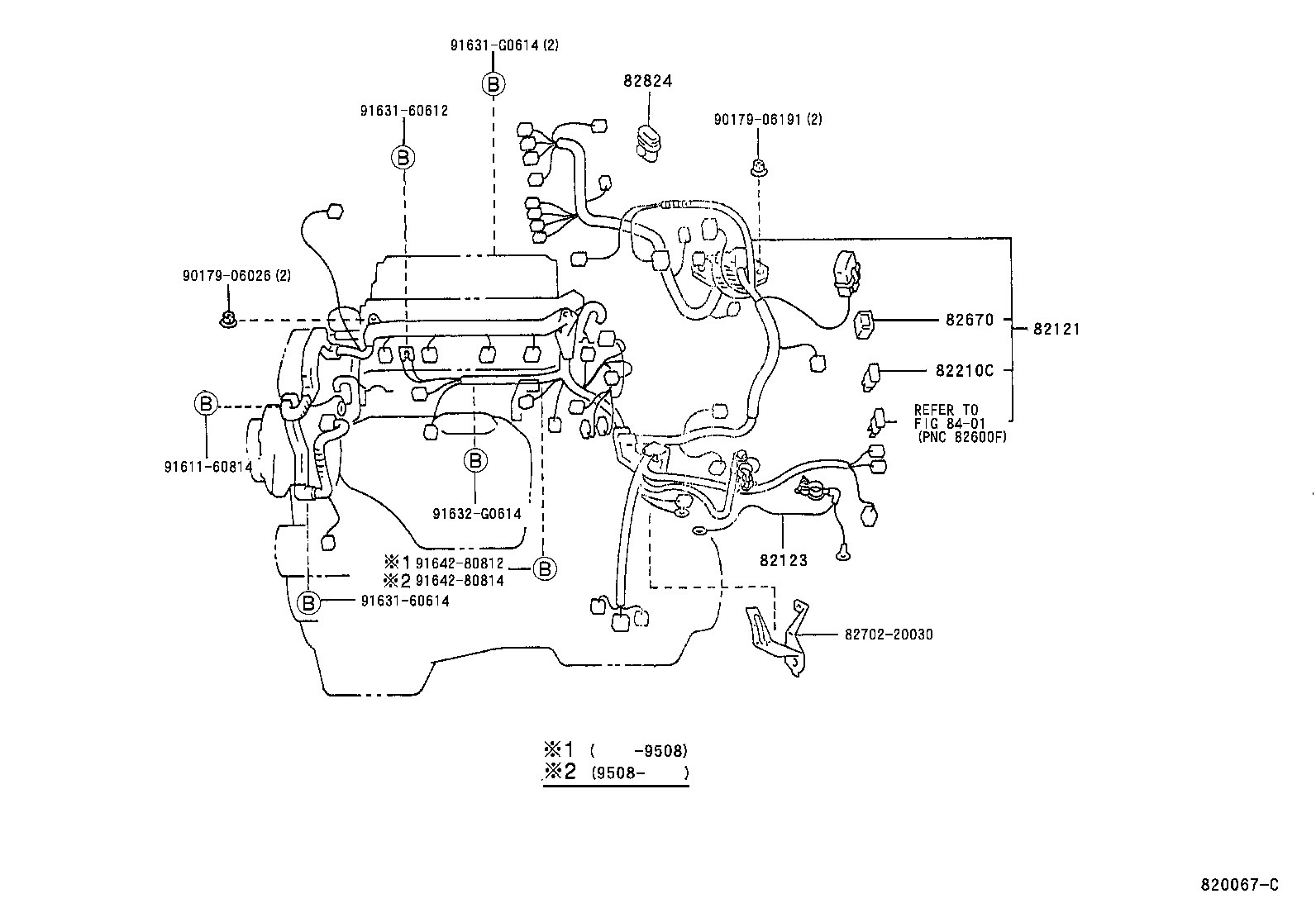

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-2H640 |
Wire, Engine
1993-11 → 1995-08
ended
|
ST204 ATM | — | |
| 82121-2H750 |
Wire, Engine
1993-11 → 1995-08
ended
|
ST204 MTM | — | |
| 82121-2H760 |
Wire, Engine
1993-11 → 1995-08
ended
|
ST202 RHD | — | |
| 82121-2H770 |
Wire, Engine
1994-02 → 1995-08
ended
|
ST205 | — | |
| 82121-2H810 |
Wire, Engine
1993-11 → 1995-08
ended
|
ST202 ATM | — | |
| 82121-2L020 |
Wire, Engine
1993-11 → 1995-08
ended
|
ST202 LHD MTM | — | |
| 82121-2L040 note |
Wire, Engine
1994-02 → 1994-10
ended
|
ST205 | — | |
| 82121-2L730 |
Wire, Engine
1995-08 → 1997-12
ended
|
ST202 LHD MTM | — | |
| 82121-2L731 |
Wire, Engine
1997-12 → —
|
ST202 LHD MTM | — | |
| 82121-2L740 |
Wire, Engine
1995-08 → 1997-12
ended
|
ST202 ATM | — | |
| 82121-2L741 |
Wire, Engine
1997-12 → —
|
ST202 ATM | — | |
| 82121-2L750 |
Wire, Engine
1995-08 → 1997-12
ended
|
ST202 RHD | — | |
| 82121-2L751 |
Wire, Engine
1997-12 → —
|
ST202 RHD | — | |
| 82121-2L760 |
Wire, Engine
1995-08 → 1997-12
ended
|
ST204 MTM | — | |
| 82121-2L761 |
Wire, Engine
1997-12 → —
|
ST204 MTM | — | |
| 82121-2L770 |
Wire, Engine
1995-08 → 1997-12
ended
|
ST204 ATM | — | |
| 82121-2L771 |
Wire, Engine
1997-12 → —
|
ST204 ATM | — | |
| 82121-2L830 |
Wire, Engine
1995-08 → 1997-12
ended
|
ST205 | — | |
| 82121-2L831 |
Wire, Engine
1997-12 → —
|
ST205 | — | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-20240 note |
Wire, Engine, NO.3
1993-11 → —
|
ST20# | — | |
| 82123-20250 note |
Wire, Engine, NO.3
1993-11 → —
|
ST202 | — | |
| 82210C — Fusible Link | ||||
| 90982-08189 note |
Fusible Link
1993-11 → —
|
ST20# | — | |
| 90982-08190 note |
Fusible Link
1993-11 → —
|
ST20# | — | |
| 90982-08227 note |
Fusible Link
1993-11 → —
|
ST20# | — | |
| 90982-08246 note |
Fusible Link
1993-11 → —
|
ST20# | — | |
| 82670 — Block Assy, Junction, NO.1 | ||||
| 82670-2B010 |
Block Assy, Junction, NO.1
1993-11 → —
|
ST20# | — | |
| 82824 — Connector, Wiring Harness | ||||
| 82824-20050 |
Connector, Wiring Harness
1993-11 → —
|
ST204,205 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
