Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

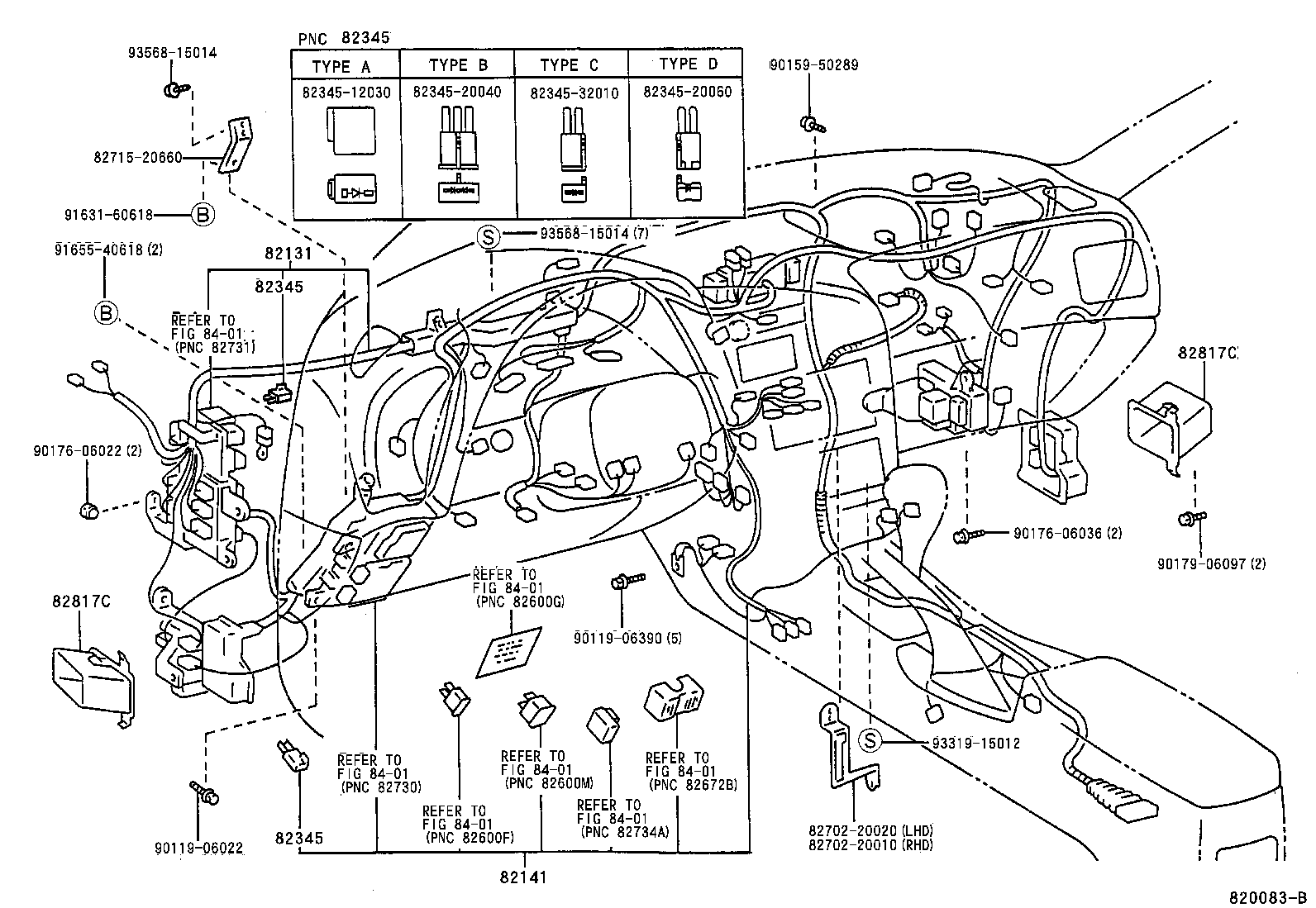

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82131 — Wire, Cowl | ||||
| 82131-2M620 note |
Wire, Cowl
1993-11 → 1995-08
ended
|
ST204 | — | |
| 82131-2M650 |
Wire, Cowl
1993-11 → 1995-08
ended
|
ST202 LHD | — | |
| 82131-2M660 note |
Wire, Cowl
1993-11 → 1995-08
ended
|
ST202 LHD | — | |
| 82131-2M730 |
Wire, Cowl
1993-11 → 1995-08
ended
|
ST202,204 RHD | — | |
| 82131-2M740 note |
Wire, Cowl
1993-11 → 1995-08
ended
|
ST20# RHD | — | |
| 82135-20350 |
Wire, Cowl
1995-08 → —
|
ST202,204 RHD | — | |
| 82135-20360 note |
Wire, Cowl
1995-08 → 1997-12
ended
|
ST202 RHD | — | |
| 82135-20361 note |
Wire, Cowl
1997-12 → —
|
ST202 RHD | — | |
| 82135-20370 note |
Wire, Cowl
1995-08 → —
|
ST204 | — | |
| 82135-20380 note |
Wire, Cowl
1995-08 → —
|
ST204 | — | |
| 82135-20390 |
Wire, Cowl
1995-08 → 1997-12
ended
|
ST205 | — | |
| 82135-20391 |
Wire, Cowl
1997-12 → —
|
ST205 | — | |
| 82135-20400 note |
Wire, Cowl
1995-08 → 1997-12
ended
|
ST204 | — | |
| 82135-20401 note |
Wire, Cowl
1997-12 → —
|
ST204 | — | |
| 82135-20430 |
Wire, Cowl
1995-08 → —
|
ST202 LHD GEN | — | |
| 82135-20440 note |
Wire, Cowl
1995-08 → 1997-12
ended
|
ST202 LHD GEN | — | |
| 82135-20441 note |
Wire, Cowl
1997-12 → —
|
ST202 LHD GEN | — | |
| 82135-20450 |
Wire, Cowl
1995-08 → 1996-06
ended
|
ST202 GCC | — | |
| 82135-20451 |
Wire, Cowl
1996-06 → —
|
ST202 GCC | — | |
| 82135-20460 note |
Wire, Cowl
1995-08 → 1996-06
ended
|
ST202 GCC | — | |
| 82135-20461 note |
Wire, Cowl
1996-06 → 1997-12
ended
|
ST202 GCC | — | |
| 82135-20462 note |
Wire, Cowl
1997-12 → —
|
ST202 GCC | — | |
| 82141 — Wire, Instrument Panel | ||||
| 82141-2D120 |
Wire, Instrument Panel
1993-11 → 1995-08
ended
|
ST202 RHD | — | |
| 82141-2D240 |
Wire, Instrument Panel
1993-11 → 1995-08
ended
|
ST202 LHD GEN | — | |
| 82141-2D280 |
Wire, Instrument Panel
1993-11 → 1995-08
ended
|
ST202 GCC | — | |
| 82141-2D290 |
Wire, Instrument Panel
1993-11 → 1995-08
ended
|
ST204,205 | — | |
| 82141-2G310 |
Wire, Instrument Panel
1995-08 → —
|
ST202 RHD | — | |
| 82141-2G320 |
Wire, Instrument Panel
1995-08 → —
|
ST202 LHD GEN | — | |
| 82141-2G330 |
Wire, Instrument Panel
1995-08 → —
|
ST202 GCC | — | |
| 82141-2G340 |
Wire, Instrument Panel
1995-08 → 1996-06
ended
|
ST204,205 | — | |
| 82141-2G341 |
Wire, Instrument Panel
1996-06 → —
|
ST204,205 | — | |
| 82345 — Diode | ||||
| 82345-20040 note |
Diode
1993-11 → —
|
ST20# | — | |
| 82345-20060 note |
Diode
1993-11 → 1995-08
ended
|
ST202 GEN | — | |
| 82345-20060 note |
Diode
1995-08 → —
|
ST202 | — | |
| 82345-32010 note |
Diode
1993-11 → 1995-08
ended
|
ST202 LHD | — | |
| 82345-32010 note |
Diode
1993-11 → —
|
ST204,205 | — | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-2D710 note |
Protector, Wiring Harness, NO.4
1993-11 → —
|
ST20# | — | |
| 82817-2D720 note |
Protector, Wiring Harness, NO.4
1993-11 → —
|
ST20# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
