Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

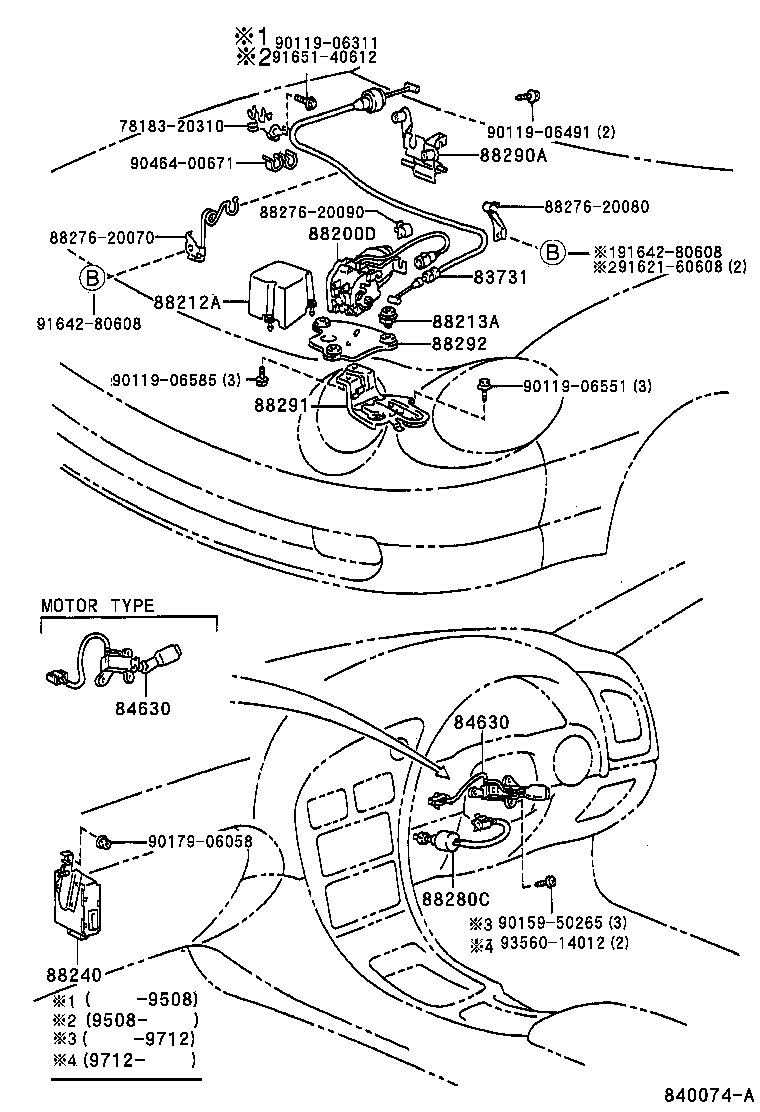

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83731 — Cable, Cruise Control | ||||
| 83731-20180 |
Cable, Cruise Control
1993-11 → —
|
ST204 | — | |
| 84630 — Switch Assy, Cruise Control Main | ||||
| 84630-14120 |
Switch Assy, Cruise Control Main
1993-11 → —
|
ST204 | — | |
| 84630-14130 note |
Switch Assy, Cruise Control Main
1997-12 → —
|
ST204 | — | |
| 84630-33020 note |
Switch Assy, Cruise Control Main
1993-11 → 1997-12
ended
|
ST204 | — | |
| 88200D — Actuator Assy, Cruise Control | ||||
| 88200-20150 |
Actuator Assy, Cruise Control
1993-11 → —
|
ST204 | — | |
| 88212A — Cover, Cruise Control Actuator | ||||
| 88212-20060 |
Cover, Cruise Control Actuator
1993-11 → —
|
ST204 | — | |
| 88213A — Grommet, Cruise Control Actuator Cover | ||||
| 88213-22150 |
Grommet, Cruise Control Actuator Cover
1993-11 → —
|
ST204 | — | |
| 88240 — Computer Assy, Cruise Control | ||||
| 88240-20430 |
Computer Assy, Cruise Control
1993-11 → 1995-08
ended
|
ST204 | — | |
| 88240-20440 |
Computer Assy, Cruise Control
1995-08 → —
|
ST204 | — | |
| 88280C — Switch Assy, Clutch | ||||
| 88280-20030 |
Switch Assy, Clutch
1993-11 → —
|
ST204 MTM | — | |
| 88290A — Bellcrank Assy, Cruise Control | ||||
| 88290-20060 |
Bellcrank Assy, Cruise Control
1993-11 → —
|
ST204 | — | |
| 88291 — Bracket, Cruise Control(AUTO DRIVE), NO.1 | ||||
| 88291-20100 |
Bracket, Cruise Control(AUTO DRIVE), NO.1
1993-11 → —
|
ST204 | — | |
| 88292 — Bracket, Cruise Control(AUTO DRIVE), NO.2 | ||||
| 88292-20050 |
Bracket, Cruise Control(AUTO DRIVE), NO.2
1993-11 → —
|
ST204 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
