Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

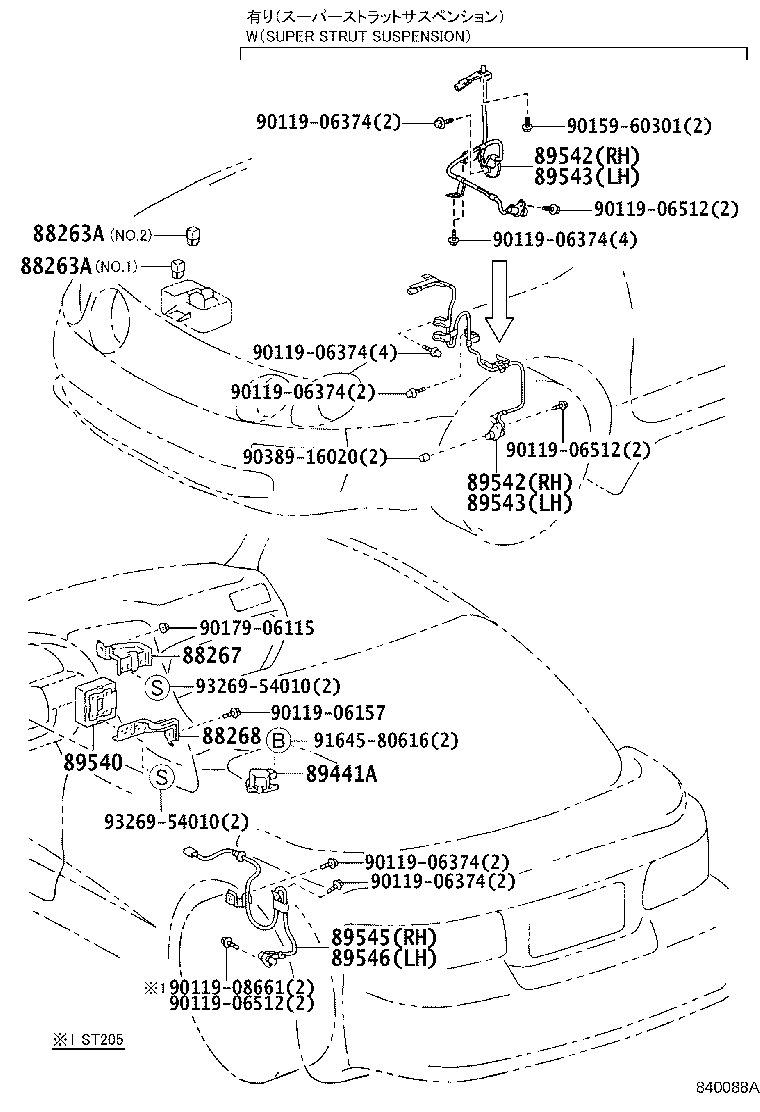

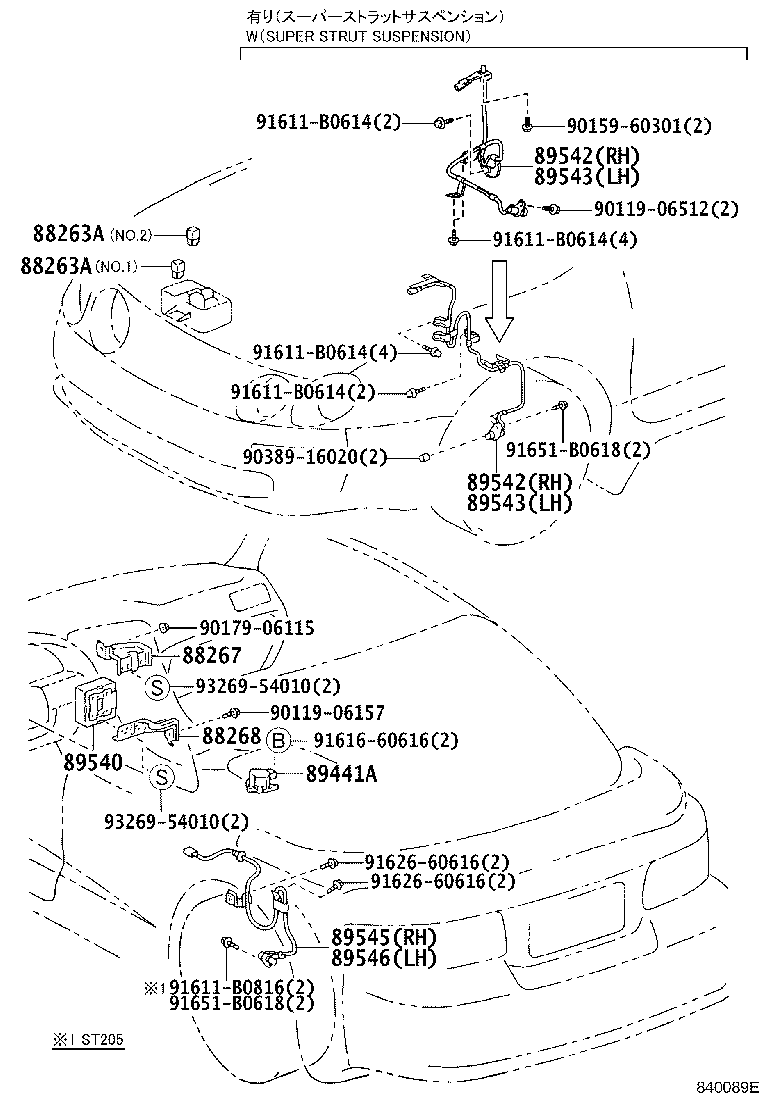

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88263A — Relay, Skid Control | ||||
| 88263-14110 note |
Relay, Skid Control
1995-08 → —
|
ST20# | — | |
| 88263-24020 note |
Relay, Skid Control
1993-11 → 1995-08
ended
|
ST20# | — | |
| 88263-24030 note |
Relay, Skid Control
1993-11 → —
|
ST20# | — | |
| 88267 — Bracket, Skid Control Computer, NO.1 | ||||
| 88267-20140 |
Bracket, Skid Control Computer, NO.1
1993-11 → 1995-05
ended
|
ST20# RHD | — | |
| 88267-20140 |
Bracket, Skid Control Computer, NO.1
1995-05 → 1995-08
ended
|
ST202,204 RHD | — | |
| 88267-20150 |
Bracket, Skid Control Computer, NO.1
1993-11 → 1995-08
ended
|
ST202 LHD | — | |
| 88267-20160 |
Bracket, Skid Control Computer, NO.1
1995-05 → 1995-08
ended
|
ST205 | — | |
| 88267-20160 |
Bracket, Skid Control Computer, NO.1
1995-08 → —
|
ST20# RHD | — | |
| 88267-20170 |
Bracket, Skid Control Computer, NO.1
1995-08 → —
|
ST202 LHD | — | |
| 88268 — Bracket, Skid Control Computer, NO.2 | ||||
| 88268-20120 |
Bracket, Skid Control Computer, NO.2
1993-11 → 1995-05
ended
|
ST20# RHD | — | |
| 88268-20120 |
Bracket, Skid Control Computer, NO.2
1995-05 → 1995-08
ended
|
ST202,204 RHD | — | |
| 88268-20130 |
Bracket, Skid Control Computer, NO.2
1993-11 → 1995-08
ended
|
ST202 LHD | — | |
| 88268-20140 |
Bracket, Skid Control Computer, NO.2
1995-05 → 1995-08
ended
|
ST205 | — | |
| 88268-20140 |
Bracket, Skid Control Computer, NO.2
1995-08 → —
|
ST20# RHD | — | |
| 88268-20150 |
Bracket, Skid Control Computer, NO.2
1995-08 → —
|
ST202 LHD | — | |
| 89441A — Sensor, Deceleration | ||||
| 89441-20050 |
Sensor, Deceleration
1994-02 → 1997-12
ended
|
ST205 | — | |
| 89441-42010 |
Sensor, Deceleration
1997-12 → —
|
ST205 | — | |
| 89540 — Computer Assy, Skid Control | ||||
| 89541-20130 |
Computer Assy, Skid Control
1993-11 → 1995-08
ended
|
ST202,204 | — | |
| 89541-20150 |
Computer Assy, Skid Control
1994-02 → 1997-12
ended
|
ST205 | — | |
| 89541-20160 |
Computer Assy, Skid Control
1995-08 → 1997-12
ended
|
ST202,204 | — | |
| 89541-20190 |
Computer Assy, Skid Control
1997-12 → —
|
ST202,204 | — | |
| 89541-20210 |
Computer Assy, Skid Control
1997-12 → —
|
ST205 | — | |
| 89542 — Sensor, Speed, Front RH | ||||
| 89542-20090 |
Sensor, Speed, Front RH
1993-11 → 1995-08
ended
|
ST202,204 | — | |
| 89542-20100 |
Sensor, Speed, Front RH
1994-02 → 1995-08
ended
|
ST205 | — | |
| 89542-20110 |
Sensor, Speed, Front RH
1995-08 → —
|
ST202,204 | — | |
| 89542-20120 |
Sensor, Speed, Front RH
1995-08 → —
|
ST205 | — | |
| 89543 — Sensor, Speed, Front LH | ||||
| 89543-20090 |
Sensor, Speed, Front LH
1993-11 → 1995-08
ended
|
ST202,204 | — | |
| 89543-20100 |
Sensor, Speed, Front LH
1994-02 → 1995-08
ended
|
ST205 | — | |
| 89543-20110 |
Sensor, Speed, Front LH
1995-08 → —
|
ST202,204 | — | |
| 89543-20120 |
Sensor, Speed, Front LH
1995-08 → —
|
ST205 | — | |
| 89545 — Sensor, Speed, Rear RH | ||||
| 89545-20090 |
Sensor, Speed, Rear RH
1993-11 → 1995-08
ended
|
ST202,204 | — | |
| 89545-20100 |
Sensor, Speed, Rear RH
1994-02 → —
|
ST205 | — | |
| 89545-20120 |
Sensor, Speed, Rear RH
1995-08 → —
|
ST202,204 | — | |
| 89546 — Sensor, Speed, Rear LH | ||||
| 89546-20090 |
Sensor, Speed, Rear LH
1993-11 → 1995-08
ended
|
ST202,204 | — | |
| 89546-20100 |
Sensor, Speed, Rear LH
1994-02 → —
|
ST205 | — | |
| 89546-20120 |
Sensor, Speed, Rear LH
1995-08 → —
|
ST202,204 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
