Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

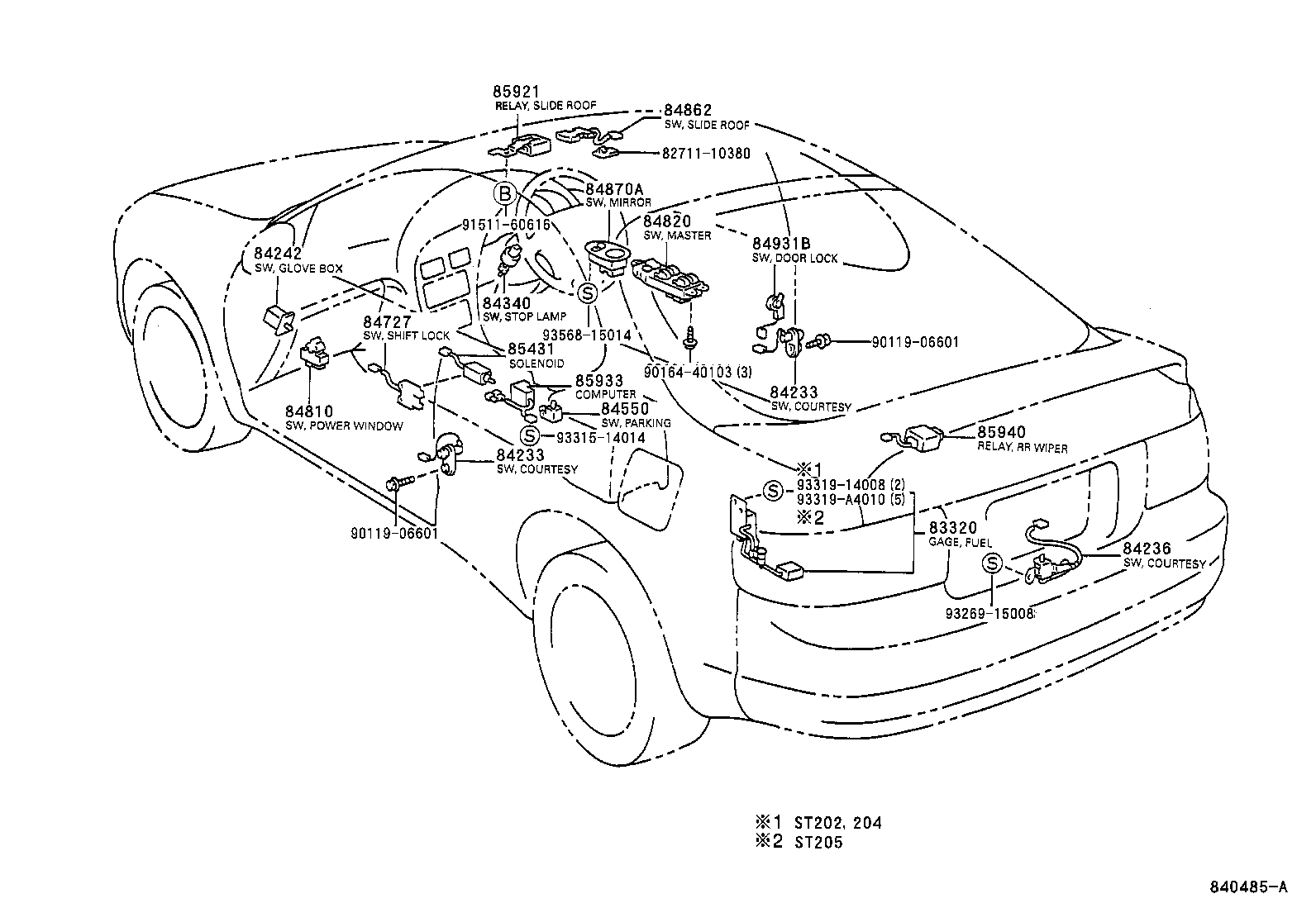

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-80142 |
Gage Assy, Fuel Sender
1994-02 → —
|
ST205 | — | |
| 83320-80285 |
Gage Assy, Fuel Sender
1993-11 → —
|
ST204 | — | |
| 83320-80295 |
Gage Assy, Fuel Sender
1993-11 → —
|
ST202 | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-32050 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1993-11 → —
|
ST20# | — | |
| 84236 — Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84231-20370 |
Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
1993-11 → —
|
ST20# | — | |
| 84242 — Switch, Glove Box Lamp | ||||
| 84242-20030 |
Switch, Glove Box Lamp
1993-11 → —
|
ST20# | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-32090 |
Switch Assy, Stop Lamp
1993-11 → —
|
ST20# | — | |
| 84340-32110 note |
Switch Assy, Stop Lamp
1993-11 → —
|
ST204 | — | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-16060 |
Switch Assy, Parking Brake
1993-11 → —
|
ST202 LHD | — | |
| 84550-33010 |
Switch Assy, Parking Brake
1993-11 → —
|
ST20# RHD | — | |
| 84727 — Switch, Shift Lock Control | ||||
| 84727-20070 |
Switch, Shift Lock Control
1993-11 → —
|
ST202 ATM | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-14110 |
Switch Assy, Power Window Regulator
1993-11 → —
|
ST20# | — | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-20420 |
Master Switch Assy, Power Window Regulator
1993-11 → —
|
ST20# RHD | — | |
| 84820-20440 |
Master Switch Assy, Power Window Regulator
1993-11 → —
|
ST202 LHD | — | |
| 84862 — Switch, Slide Roof Motor | ||||
| 84862-20050-B0 note |
Switch, Slide Roof Motor
1993-11 → 1995-08
ended
|
ST20# | — | |
| 84862-20050-B2 note |
Switch, Slide Roof Motor
1995-08 → —
|
ST20# | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84870-20110 note |
Switch Assy, Outer Mirror
1993-11 → —
|
ST20# | — | |
| 84870-20160 |
Switch Assy, Outer Mirror
1993-11 → 1995-08
ended
|
ST202 | — | |
| 84931B — Switch, Door Control | ||||
| 84931-20130 note |
Switch, Door Control
1993-11 → —
|
ST20# | — | |
| 84931-20180 note |
Switch, Door Control
1993-11 → —
|
ST20# | — | |
| 85431 — Solenoid, Shift Lock | ||||
| 85431-20070 |
Solenoid, Shift Lock
1993-11 → —
|
ST202 ATM | — | |
| 85921 — Relay, Sliding Roof Control | ||||
| 85921-20100 |
Relay, Sliding Roof Control
1993-11 → —
|
ST20# | — | |
| 85933 — Computer, Shift Lock Control | ||||
| 85933-20090 |
Computer, Shift Lock Control
1993-11 → 1996-06
ended
|
ST202 ATM | — | |
| 85933-20091 |
Computer, Shift Lock Control
1996-06 → —
|
ST202 ATM | — | |
| 85940 — Relay Assy, Windshield Wiper | ||||
| 85940-14100 |
Relay Assy, Windshield Wiper
1993-11 → —
|
ST20# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
