Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

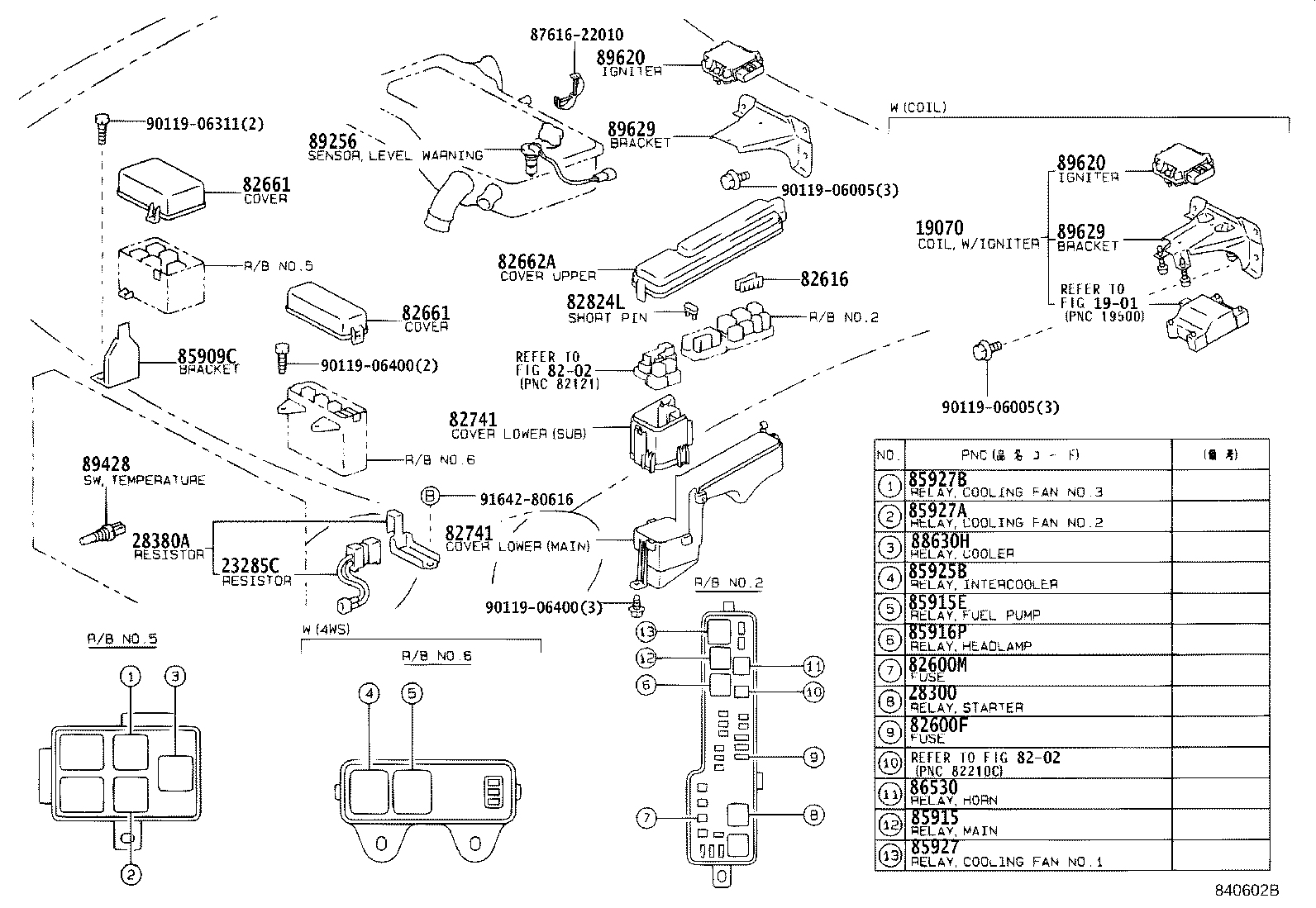

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19070 — Coil Assy, W/Igniter | ||||
| 19070-74170 |
Coil Assy, W/Igniter
1994-02 → —
|
3SGTE ST205 | — | |
| 23285C — Resistor, Fuel Pump | ||||
| 23285-74010 |
Resistor, Fuel Pump
1994-02 → —
|
3SGTE ST205 | — | |
| 28300 — Relay Assy, Starter | ||||
| 28300-10020 |
Relay Assy, Starter
1994-03 → —
|
3S#,5SFE ST20# | — | |
| 28300-10020 |
Relay Assy, Starter
1993-11 → 1994-03
ended
|
3SFE,5SFE ST202,204 ATM | — | |
| 28341-11010 |
Relay Assy, Starter
1993-11 → 1994-03
ended
|
3S#,5SFE ST20# MTM | — | |
| 28380A — Resister, Fuel Pump | ||||
| 23080-74030 |
Resister, Fuel Pump
1994-02 → —
|
3SGTE ST205 | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09008 note |
Fuse, Fuse Block
1993-11 → —
|
ST20# | — | |
| 90982-09009 note |
Fuse, Fuse Block
1993-11 → —
|
ST20# | — | |
| 90982-09010 note |
Fuse, Fuse Block
1993-11 → —
|
ST20# | — | |
| 90982-09011 note |
Fuse, Fuse Block
1993-11 → —
|
ST20# | — | |
| 90982-09013 note |
Fuse, Fuse Block
1993-11 → —
|
ST20# | — | |
| 82600M — Fuse, Medium Current | ||||
| 90982-10001 note |
Fuse, Medium Current
1993-11 → —
|
ST20# | — | |
| 90982-10002 note |
Fuse, Medium Current
1993-11 → —
|
ST20# | — | |
| 82616 — Puller, Fuse | ||||
| 82616-20010 |
Puller, Fuse
1995-08 → —
|
ST20# | — | |
| 82661 — Cover, Relay Block, NO.1 | ||||
| 82662-20120 |
Cover, Relay Block, NO.1
1993-11 → 1994-08
ended
|
ST202,204 RHD | — | |
| 82662-20120 note |
Cover, Relay Block, NO.1
1993-11 → 1994-08
ended
|
ST205;ST202 LHD | — | |
| 82662-20120 note |
Cover, Relay Block, NO.1
1994-08 → —
|
ST20# | — | |
| 82662-20170 note |
Cover, Relay Block, NO.1
1994-02 → 1996-06
ended
|
ST205 | — | |
| 82662-20171 |
Cover, Relay Block, NO.1
1996-06 → —
|
ST205 | — | |
| 82662A — Cover, Relay Block, Upper, NO.1 | ||||
| 82662-20150 |
Cover, Relay Block, Upper, NO.1
1993-11 → —
|
ST20# | — | |
| 82741 — Block, Engine Room Relay | ||||
| 82741-20010 note |
Block, Engine Room Relay
1993-11 → —
|
ST20# | — | |
| 82741-20020 note |
Block, Engine Room Relay
1993-11 → —
|
ST20# | — | |
| 82824L — Pin, Short | ||||
| 82824-20140 |
Pin, Short
1993-11 → —
|
ST20# | — | |
| 85909C — Bracket Sub-assy, Relay, NO.1 | ||||
| 85909-20020 |
Bracket Sub-assy, Relay, NO.1
1993-11 → —
|
ST20# | — | |
| 85915 — Relay, Main | ||||
| 90987-04002 |
Relay, Main
1993-11 → —
|
ST20# | — | |
| 85915E — Relay | ||||
| 90987-04002 |
Relay
1994-02 → —
|
ST205 | — | |
| 85916P — Relay, Headlamp | ||||
| 90987-02006 |
Relay, Headlamp
1993-11 → —
|
ST20# | — | |
| 85925B — Relay, Intercooler | ||||
| 90987-02006 |
Relay, Intercooler
1994-02 → —
|
ST205 | — | |
| 85927 — Relay, Cooling Fan | ||||
| 90987-03003 |
Relay, Cooling Fan
1993-11 → —
|
ST20# | — | |
| 85927A — Relay, Cooling Fan, NO.2 | ||||
| 90987-02009 |
Relay, Cooling Fan, NO.2
1993-11 → —
|
ST20# | — | |
| 85927B — Relay, Cooling Fan, NO.3 | ||||
| 90987-04003 |
Relay, Cooling Fan, NO.3
1993-11 → —
|
ST20# | — | |
| 86530 — Relay Assy, Horn | ||||
| 86530-20070 |
Relay Assy, Horn
1993-11 → —
|
ST20# | — | |
| 88630H — Relay Assy, Cooler | ||||
| 90987-02009 |
Relay Assy, Cooler
1993-11 → 1999-08
ended
|
ST20# | — | |
| 89256 — Sensor, Level Warning | ||||
| 89256-20010 |
Sensor, Level Warning
1994-02 → —
|
ST205 | — | |
| 89428 — Switch, Temperature Detect, NO.2 | ||||
| 89428-33010 |
Switch, Temperature Detect, NO.2
1993-11 → —
|
ST20# | — | |
| 89620 — Igniter Assy | ||||
| 89621-26010 |
Igniter Assy
1993-11 → —
|
ST20# | — | |
| 89629 — Bracket, Igniter Assy | ||||
| 89629-20160 |
Bracket, Igniter Assy
1994-02 → —
|
ST205 | — | |
| 89629-20170 |
Bracket, Igniter Assy
1993-11 → —
|
ST202,204 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
