Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

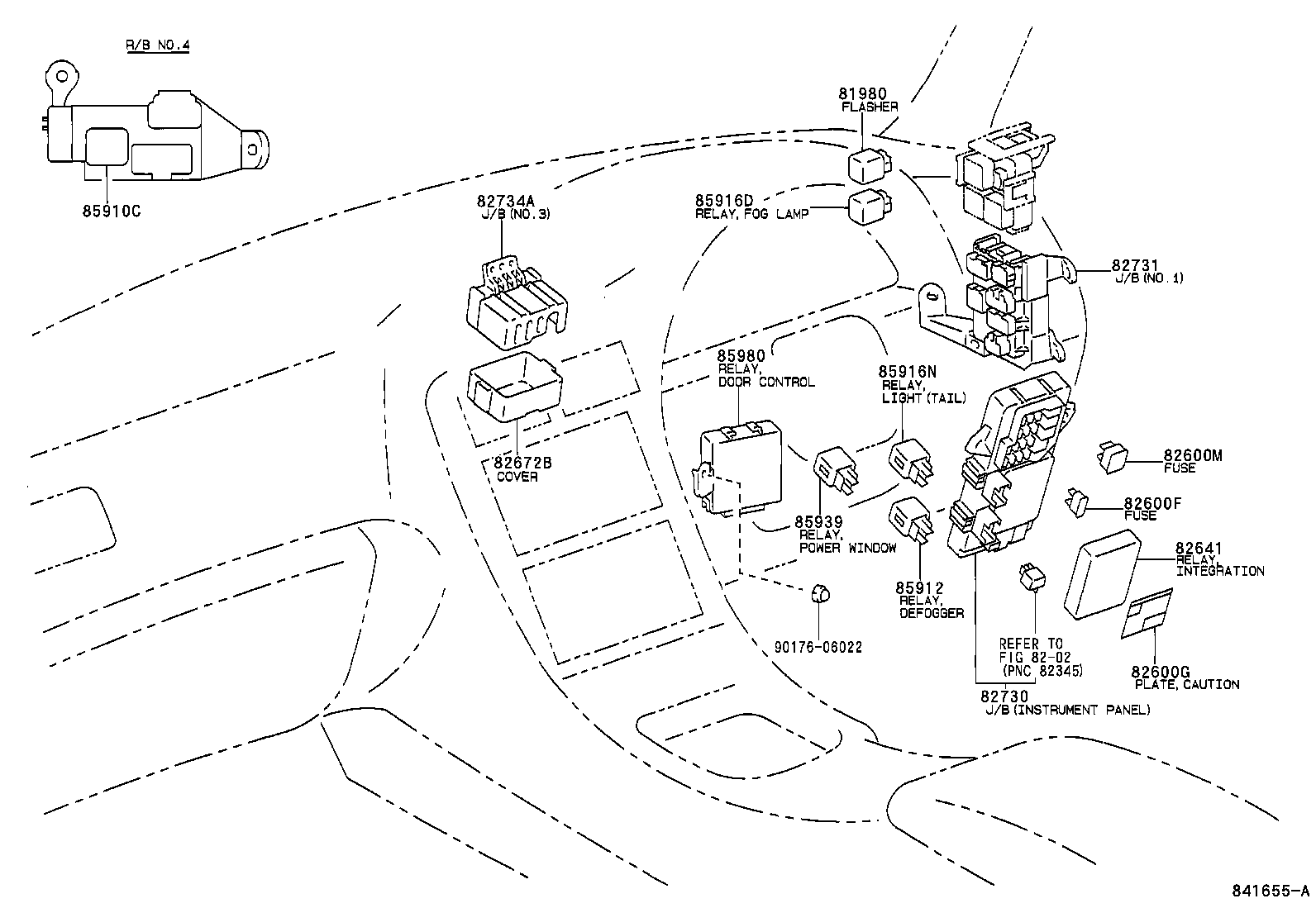

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81980 — Flasher Assy, Turn Signal | ||||
| 81980-12070 |
Flasher Assy, Turn Signal
1993-11 → 1997-05
ended
|
ST20# | — | |
| 81980-12110 |
Flasher Assy, Turn Signal
1997-05 → —
|
ST20# | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09008 note |
Fuse, Fuse Block
1993-11 → —
|
ST20# | — | |
| 90982-09009 note |
Fuse, Fuse Block
1993-11 → —
|
ST20# | — | |
| 90982-09010 note |
Fuse, Fuse Block
1993-11 → —
|
ST20# | — | |
| 90982-09011 note |
Fuse, Fuse Block
1993-11 → —
|
ST20# | — | |
| 90982-09013 note |
Fuse, Fuse Block
1993-11 → —
|
ST20# | — | |
| 82600G — Plate, Caution(FOR FUSE) | ||||
| 82683-20120 |
Plate, Caution(FOR FUSE)
1993-11 → 1996-06
ended
|
ST20# | — | |
| 82683-20121 |
Plate, Caution(FOR FUSE)
1996-06 → —
|
ST20# | — | |
| 82600M — Fuse, Medium Current | ||||
| 90982-10001 note |
Fuse, Medium Current
1993-11 → —
|
ST20# | — | |
| 90982-10002 note |
Fuse, Medium Current
1993-11 → —
|
ST20# | — | |
| 82641 — Relay, Integration NO.1 | ||||
| 82641-33010 |
Relay, Integration NO.1
1993-11 → —
|
ST204,205 | — | |
| 82641-33041 |
Relay, Integration NO.1
1993-11 → —
|
ST202 GCC | — | |
| 82672B — Cover, Junction Block | ||||
| 82672-2B110 |
Cover, Junction Block
1993-11 → —
|
ST20# | — | |
| 82730 — Block Assy, Instrument Panel Junction | ||||
| 82730-20010 |
Block Assy, Instrument Panel Junction
1993-11 → —
|
ST20# RHD | — | |
| 82730-20020 |
Block Assy, Instrument Panel Junction
1993-11 → —
|
ST202 LHD | — | |
| 82731 — Block, Driver Side Junction | ||||
| 82731-20010 |
Block, Driver Side Junction
1993-11 → 1995-08
ended
|
ST20# RHD | — | |
| 82731-20020 |
Block, Driver Side Junction
1993-11 → —
|
ST202 LHD | — | |
| 82731-20030 |
Block, Driver Side Junction
1995-08 → —
|
ST20# RHD | — | |
| 82734A — Block, Center Junction | ||||
| 82734-20020 |
Block, Center Junction
1993-11 → —
|
ST20# | — | |
| 85910C — Relay Assy (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
Relay Assy (FOR HEATER BLOWER MOTOR)
1993-11 → —
|
ST20# | — | |
| 85912 — Relay, Defogger | ||||
| 90987-02009 |
Relay, Defogger
1993-11 → 1999-08
ended
|
ST20# | — | |
| 85916D — Relay, Fog Lamp | ||||
| 90987-02009 |
Relay, Fog Lamp
1993-11 → —
|
ST20# ARL,GEN | — | |
| 85916N — Relay, Taillamp | ||||
| 90987-02009 |
Relay, Taillamp
1993-11 → —
|
ST20# | — | |
| 85939 — Relay, Power Window | ||||
| 90987-02009 |
Relay, Power Window
1993-11 → —
|
ST20# | — | |
| 85980 — Relay Assy, Door Control | ||||
| 85980-20360 |
Relay Assy, Door Control
1993-11 → —
|
ST20# RHD | — | |
| 85980-20370 |
Relay Assy, Door Control
1993-11 → —
|
ST202 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
