Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

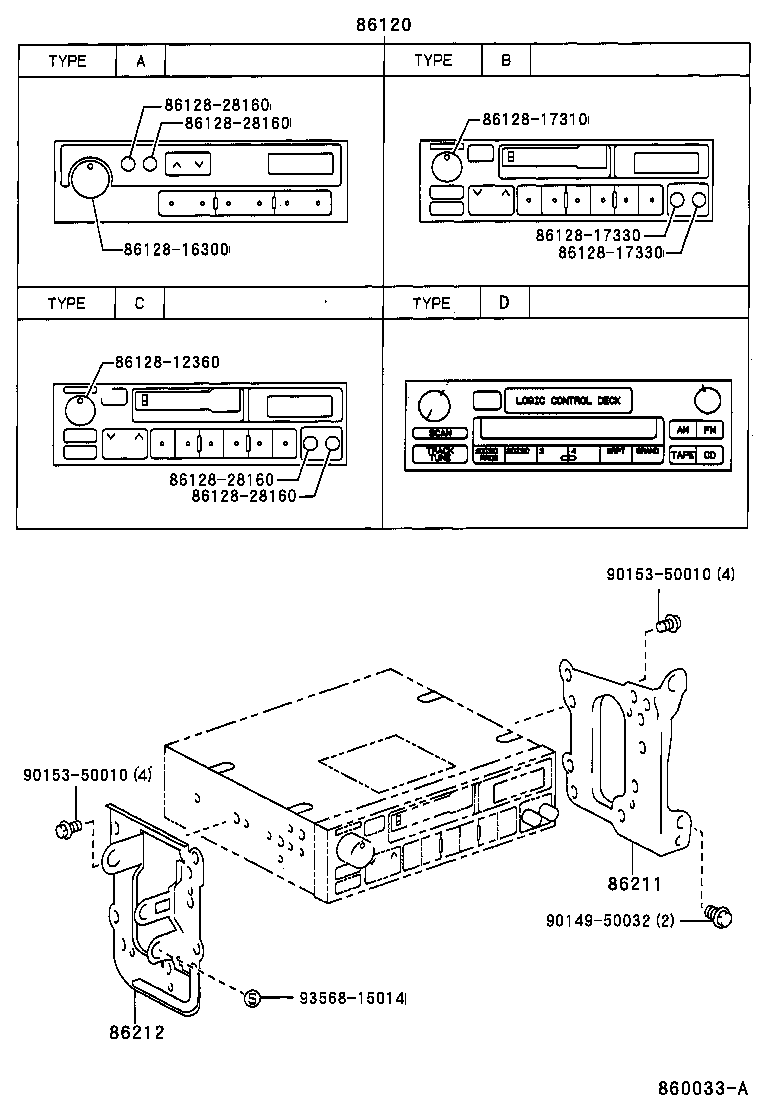

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120 — Receiver Assy, Radio | ||||
| 86120-2B350 note |
Receiver Assy, Radio
1993-11 → 1995-08
ended
|
ST202 GEN | — | |
| 86120-2B360 note |
Receiver Assy, Radio
1993-11 → 1997-12
ended
|
ST202 GEN | — | |
| 86120-2B400 note |
Receiver Assy, Radio
1993-11 → 1997-12
ended
|
ST202 | — | |
| 86120-2B610 note |
Receiver Assy, Radio
1997-12 → —
|
ST202 | — | |
| 86120-2B620 note |
Receiver Assy, Radio
1997-12 → —
|
ST202 GEN | — | |
| 86211 — Bracket, Radio, NO.1 | ||||
| 86211-20360 |
Bracket, Radio, NO.1
1993-11 → —
|
ST20# RHD | — | |
| 86211-20370 |
Bracket, Radio, NO.1
1993-11 → —
|
ST202 LHD | — | |
| 86212 — Bracket, Radio, NO.2 | ||||
| 86212-20360 |
Bracket, Radio, NO.2
1993-11 → —
|
ST20# RHD | — | |
| 86212-20370 |
Bracket, Radio, NO.2
1993-11 → —
|
ST202 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
