Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

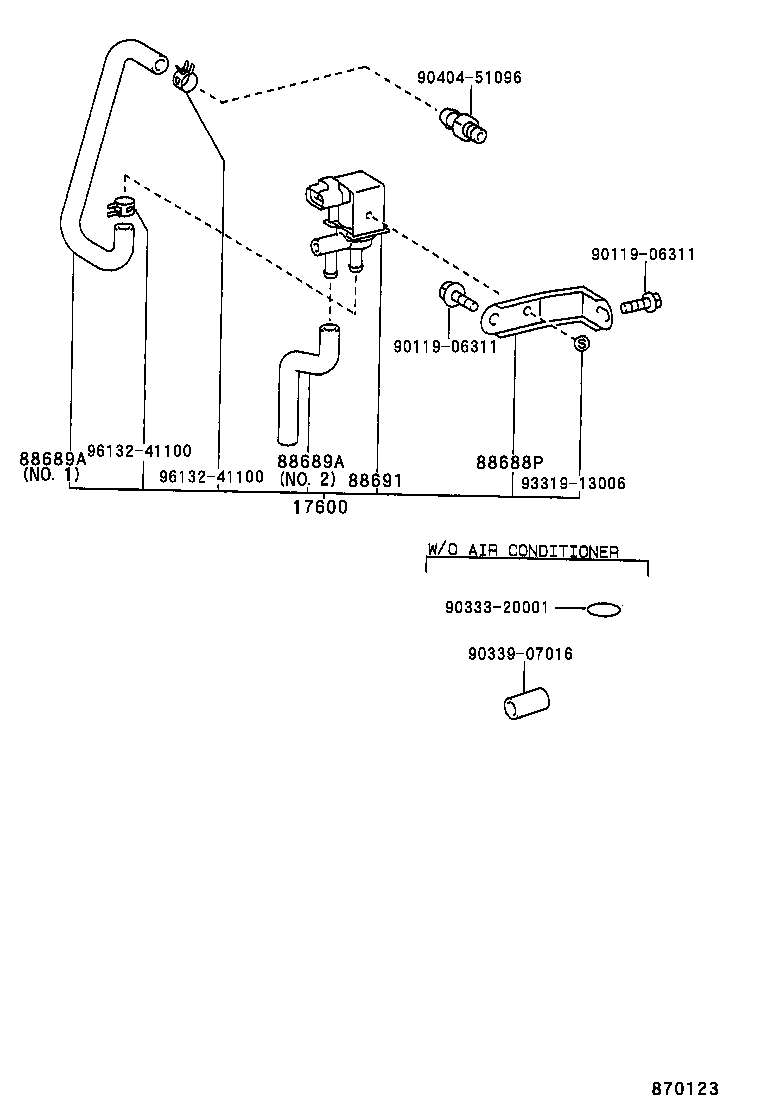

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17600 — Valve Assy, Air By-pass W/Hose | ||||
| 17600-74190 |
Valve Assy, Air By-pass W/Hose
1994-02 → —
|
3SGTE ST205 | — | |
| 17600-74210 |
Valve Assy, Air By-pass W/Hose
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 88688P — Bracket (FOR MAGNET VALVE) | ||||
| 88688-2D570 |
Bracket (FOR MAGNET VALVE)
1994-02 → —
|
ST205 | — | |
| 88688-2D590 |
Bracket (FOR MAGNET VALVE)
1993-11 → —
|
ST202,204 | — | |
| 88689A — Hose, Cooler Vacuum NO.1 | ||||
| 17346-74060 note |
Hose, Cooler Vacuum NO.1
1993-11 → —
|
ST202,204 | — | |
| 17346-74080 note |
Hose, Cooler Vacuum NO.1
1994-02 → —
|
ST205 | — | |
| 17347-74050 note |
Hose, Cooler Vacuum NO.1
1993-11 → —
|
ST202,204 | — | |
| 17347-74070 note |
Hose, Cooler Vacuum NO.1
1994-02 → —
|
ST205 | — | |
| 88691 — Valve, Magnet (FOR IDLE UP DEVICE) | ||||
| 90910-13001 |
Valve, Magnet (FOR IDLE UP DEVICE)
1994-02 → —
|
ST205 | — | |
| 90910-13007 |
Valve, Magnet (FOR IDLE UP DEVICE)
1993-11 → —
|
ST202,204 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
