Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

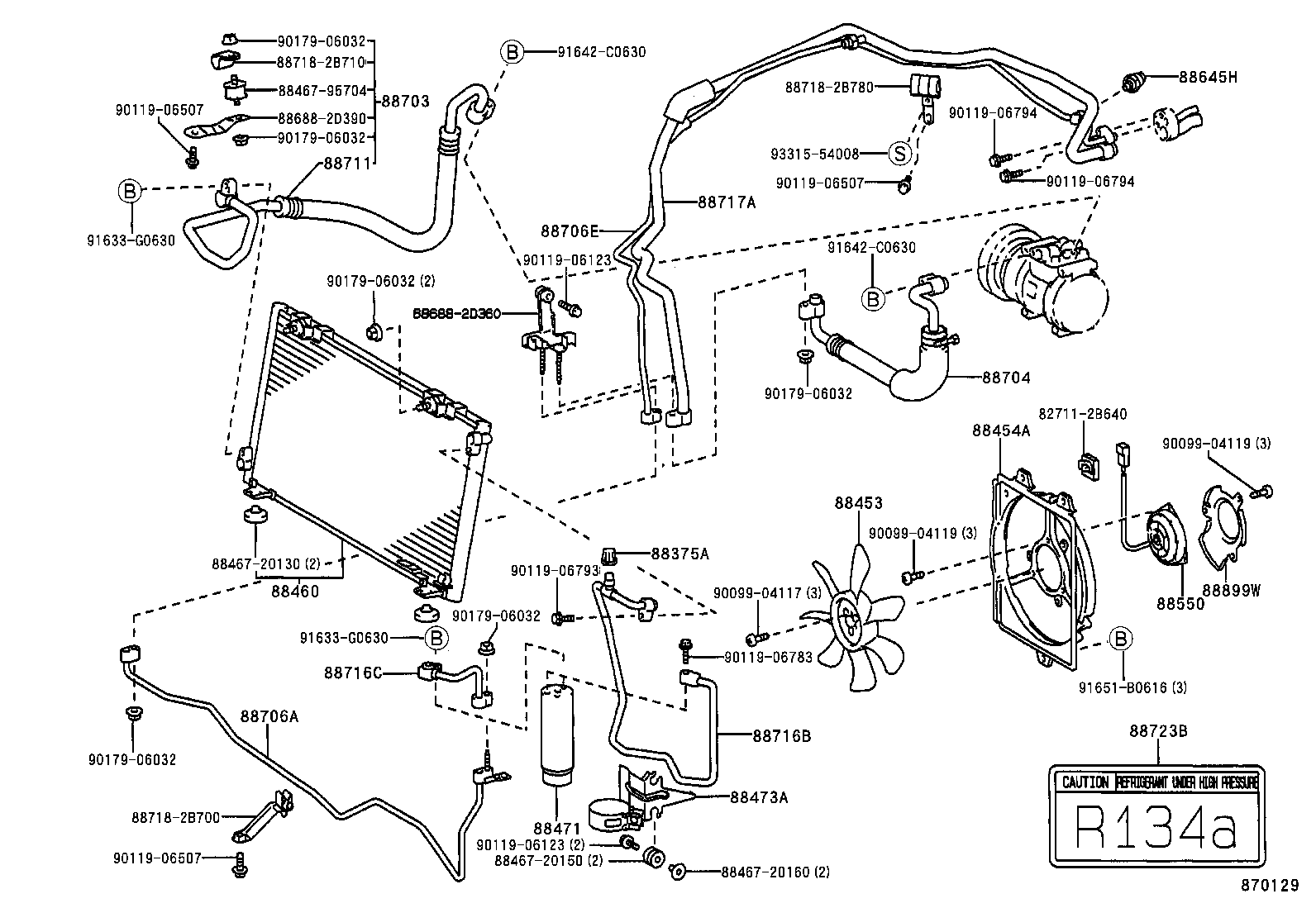

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88375A — Cap, Service Valve (FOR COOLER PIPE) | ||||
| 88375-30280 |
Cap, Service Valve (FOR COOLER PIPE)
1993-11 → —
|
ST20# | — | |
| 88453 — Fan, Cooling (FOR CONDENSER) | ||||
| 88453-20070 |
Fan, Cooling (FOR CONDENSER)
1993-11 → —
|
ST20# | — | |
| 88454A — Shroud, Fan | ||||
| 88454-20140 |
Shroud, Fan
1993-11 → —
|
ST20# | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 88450-20210 |
Condenser Assy, Cooler
1993-11 → 1995-08
ended
|
ST204 ATM | — | |
| 88460-20440 |
Condenser Assy, Cooler
1993-11 → 1995-08
ended
|
ST202,205;ST204 MTM | — | |
| 88460-20470 |
Condenser Assy, Cooler
1995-08 → —
|
ST202 | — | |
| 88460-20490 |
Condenser Assy, Cooler
1995-08 → —
|
ST204,205 | — | |
| 88471 — Tank, Receiver Air Conditioner | ||||
| 88471-20050 |
Tank, Receiver Air Conditioner
1993-11 → —
|
ST20# | — | |
| 88473A — Holder, Receiver | ||||
| 88472-20170 |
Holder, Receiver
1993-11 → —
|
ST20# | — | |
| 88550 — Motor Assy, Blower (FOR CONDENSER) | ||||
| 16363-46030 |
Motor Assy, Blower (FOR CONDENSER)
1994-09 → —
|
ST20# | — | |
| 88550-12130 |
Motor Assy, Blower (FOR CONDENSER)
1993-11 → 1994-08
ended
|
ST20# | — | |
| 88645H — Switch, Pressure NO.1 | ||||
| 88645-20050 |
Switch, Pressure NO.1
1993-11 → —
|
ST20# | — | |
| 88703 — Hose Sub-assy, Discharge | ||||
| 88703-20120 |
Hose Sub-assy, Discharge
1993-11 → —
|
ST202,204 | — | |
| 88703-20150 |
Hose Sub-assy, Discharge
1994-02 → —
|
ST205 | — | |
| 88704 — Hose Sub-assy, Suction | ||||
| 88704-20150 |
Hose Sub-assy, Suction
1993-11 → —
|
ST202,204 RHD | — | |
| 88704-20160 |
Hose Sub-assy, Suction
1994-02 → —
|
ST205 | — | |
| 88712-2B440 |
Hose Sub-assy, Suction
1993-11 → —
|
ST202 LHD | — | |
| 88706A — Tube Sub-assy, Liquid, A | ||||
| 88706-20140 |
Tube Sub-assy, Liquid, A
1993-11 → —
|
ST202 LHD | — | |
| 88706E — Tube Sub-assy, Liquid, E | ||||
| 88716-2D310 |
Tube Sub-assy, Liquid, E
1993-11 → —
|
ST202 LHD | — | |
| 88711 — Hose, Cooler Refrigerant Discharge, NO.1 | ||||
| 88711-2B130 |
Hose, Cooler Refrigerant Discharge, NO.1
1993-11 → —
|
ST202,204 | — | |
| 88711-2B280 |
Hose, Cooler Refrigerant Discharge, NO.1
1994-02 → —
|
ST205 | — | |
| 88716B — Pipe, Cooler Refrigerant Liquid, B | ||||
| 88706-20130 |
Pipe, Cooler Refrigerant Liquid, B
1993-11 → —
|
ST20# | — | |
| 88716C — Pipe, Cooler Refrigerant Liquid, C | ||||
| 88706-20170 |
Pipe, Cooler Refrigerant Liquid, C
1993-11 → —
|
ST202 LHD | — | |
| 88717A — Pipe, Cooler Refrigerant Suction, A | ||||
| 88717-2B460 |
Pipe, Cooler Refrigerant Suction, A
1993-11 → —
|
ST20# RHD | — | |
| 88717-2B480 |
Pipe, Cooler Refrigerant Suction, A
1993-11 → —
|
ST202 LHD | — | |
| 88723B — Label, Cooler Service Caution | ||||
| 88723-20040 |
Label, Cooler Service Caution
1993-11 → —
|
ST20# | — | |
| 88899W — Support Sub-assy, B | ||||
| 88899-20270 |
Support Sub-assy, B
1993-11 → —
|
ST202,204 | — | |
| 88899-20280 |
Support Sub-assy, B
1994-02 → —
|
ST205 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
