Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

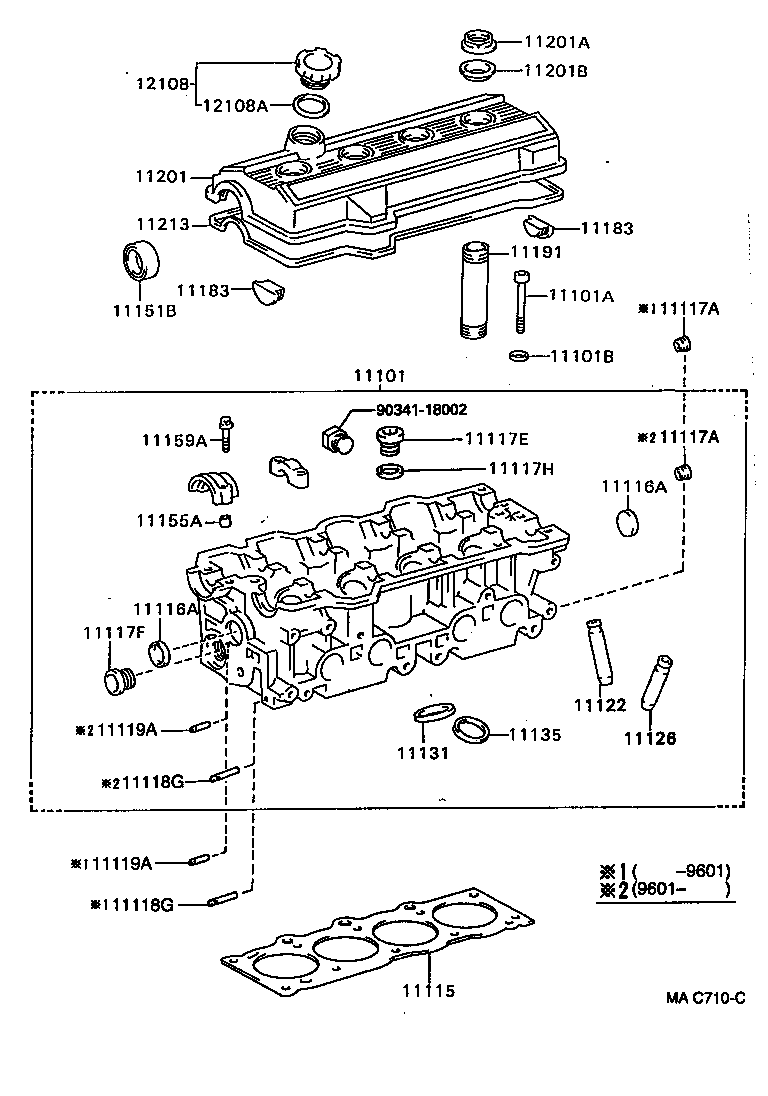

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-74151 |
Head Sub-assy, Cylinder
1993-11 → 1996-01
ended
|
3SFE ST202 | — | |
| 11101-74900 |
Head Sub-assy, Cylinder
1993-11 → 1996-01
ended
|
5SFE ST204 | — | |
| 11101-79115 |
Head Sub-assy, Cylinder
1996-01 → —
|
3SFE ST202 | — | |
| 11101-79165 |
Head Sub-assy, Cylinder
1996-01 → —
|
5SFE ST204 | — | |
| 11101-88480 |
Head Sub-assy, Cylinder
1994-02 → 1997-04
ended
|
3SGTE ST205 | — | |
| 11101-88482 |
Head Sub-assy, Cylinder
1997-04 → —
|
3SGTE ST205 | — | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90109-10132 |
Bolt(FOR CYLINDER HEAD SET)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 90910-02094 |
Bolt(FOR CYLINDER HEAD SET)
1994-02 → —
|
3SGTE ST205 | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-10060 |
Washer, Plate(FOR CYLINDER HEAD SET)
1994-02 → —
|
3SGTE ST205 | — | |
| 90201-11026 |
Washer, Plate(FOR CYLINDER HEAD SET)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-74070 note |
Gasket, Cylinder Head
1993-11 → 1996-01
ended
|
3SFE ST202 | — | |
| 11115-74080 note |
Gasket, Cylinder Head
1993-11 → 1996-12
ended
|
5SFE ST204 | — | |
| 11115-74110 |
Gasket, Cylinder Head
1996-01 → —
|
3SFE ST202 | — | |
| 11115-74120 |
Gasket, Cylinder Head
1996-12 → —
|
5SFE ST204 | — | |
| 11115-88480 |
Gasket, Cylinder Head
1994-02 → —
|
3SGTE ST205 | — | |
| 11116A — Plug, Tight, NO.1 | ||||
| 96411-41800 |
Plug, Tight, NO.1
1994-02 → —
|
3SGTE ST205 | — | |
| 96411-42800 |
Plug, Tight, NO.1
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11117A — Plug, W/Head Taper Screw, NO.1 | ||||
| 90344-53011 |
Plug, W/Head Taper Screw, NO.1
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11117E — Plug, W/Head Straight Screw, NO.1 | ||||
| 90341-24090 |
Plug, W/Head Straight Screw, NO.1
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11117F — Plug, W/Head Straight Screw, NO.2 | ||||
| 90341-32031 |
Plug, W/Head Straight Screw, NO.2
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11117H — Gasket(FOR WATER HOLE) | ||||
| 90430-24246 |
Gasket(FOR WATER HOLE)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11118G — Pin, Slotted Spring, NO.1 | ||||
| 90249-06084 |
Pin, Slotted Spring, NO.1
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11119A — Pin, Straight, NO.1 | ||||
| 90250-06003 note |
Pin, Straight, NO.1
1993-11 → —
|
3S#,5SFE ST20# | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-74030 note |
Bush, Intake Valve Guide
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11122-88460 note |
Bush, Intake Valve Guide
1994-02 → —
|
3SGTE ST205 | — | |
| 11123-74030 note |
Bush, Intake Valve Guide
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11123-88460 note |
Bush, Intake Valve Guide
1994-02 → —
|
3SGTE ST205 | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11122-16010 note |
Bush, Exhaust Valve Guide
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11122-88460 note |
Bush, Exhaust Valve Guide
1994-02 → —
|
3SGTE ST205 | — | |
| 11123-16010 note |
Bush, Exhaust Valve Guide
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11123-88460 note |
Bush, Exhaust Valve Guide
1994-02 → —
|
3SGTE ST205 | — | |
| 11131 — Seat, Intake Valve | ||||
| 11131-74020 note |
Seat, Intake Valve
1993-11 → —
|
5SFE ST204 | — | |
| 11131-74040 note |
Seat, Intake Valve
1993-11 → —
|
3SFE ST202 | — | |
| 11132-74020 note |
Seat, Intake Valve
1993-11 → —
|
5SFE ST204 | — | |
| 11132-74040 note |
Seat, Intake Valve
1993-11 → —
|
3SFE ST202 | — | |
| 11135 — Seat, Exhaust Valve | ||||
| 11135-74030 note |
Seat, Exhaust Valve
1993-11 → —
|
5SFE ST204 | — | |
| 11135-74041 note |
Seat, Exhaust Valve
1993-11 → —
|
3SFE ST202 | — | |
| 11136-74030 note |
Seat, Exhaust Valve
1993-11 → —
|
5SFE ST204 | — | |
| 11136-74041 note |
Seat, Exhaust Valve
1993-11 → —
|
3SFE ST202 | — | |
| 11151B — Seal, Oil(FOR CAMSHAFT SETTING) | ||||
| 90311-35022 |
Seal, Oil(FOR CAMSHAFT SETTING)
1994-02 → 1997-01
ended
|
3SGTE ST205 | — | |
| 90311-35035 |
Seal, Oil(FOR CAMSHAFT SETTING)
1997-02 → 1999-08
ended
|
3SGTE ST205 | — | |
| 90311-38046 |
Seal, Oil(FOR CAMSHAFT SETTING)
1993-11 → 1997-08
ended
|
3SFE,5SFE ST202,204 | — | |
| 90311-38067 |
Seal, Oil(FOR CAMSHAFT SETTING)
1997-08 → 1999-08
ended
|
3SFE,5SFE ST202,204 | — | |
| 11155A — Pin, Ring W/Head | ||||
| 90253-10004 |
Pin, Ring W/Head
1993-11 → —
|
3S#,5SFE ST20# | — | |
| 11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07001 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1994-02 → —
|
3SGTE ST205 | — | |
| 90119-07002 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1994-02 → —
|
3SGTE ST205 | — | |
| 90119-07003 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1994-02 → —
|
3SGTE ST205 | — | |
| 90119-07009 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11183 — Plug, Semicircular | ||||
| 11183-74010 |
Plug, Semicircular
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11191 — Tube, Spark Plug | ||||
| 11191-74030 |
Tube, Spark Plug
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-74050 |
Cover Sub-assy, Cylinder Head
1993-11 → 1999-01
ended
|
3SFE,5SFE ST202,204 | — | |
| 11201-74051 |
Cover Sub-assy, Cylinder Head
1999-01 → —
|
3SFE,5SFE ST202,204 | — | |
| 11201-88480 |
Cover Sub-assy, Cylinder Head
1994-02 → —
|
3SGTE ST205 | — | |
| 11201A — Nut, Cap(FOR CYLINDER HEAD COVER) | ||||
| 90179-28004 |
Nut, Cap(FOR CYLINDER HEAD COVER)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11201B — Washer, Seal(FOR CYLINDER HEAD COVER) | ||||
| 90210-06012 |
Washer, Seal(FOR CYLINDER HEAD COVER)
1994-02 → —
|
3SGTE ST205 | — | |
| 90480-30025 |
Washer, Seal(FOR CYLINDER HEAD COVER)
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-74020 |
Gasket, Cylinder Head Cover
1993-11 → —
|
3SFE,5SFE ST202,204 | — | |
| 11213-88480 |
Gasket, Cylinder Head Cover
1994-02 → —
|
3SGTE ST205 | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-13030 |
Cap Sub-assy, Oil Filler
1993-11 → 1993-12
ended
|
3SFE,5SFE ST20# | — | |
| 12180-13030 |
Cap Sub-assy, Oil Filler
1994-02 → 1995-08
ended
|
3SGTE ST205 | — | |
| 12180-55010 |
Cap Sub-assy, Oil Filler
1993-12 → 1995-08
ended
|
3SFE,5SFE ST202,204 | — | |
| 12180-55010 |
Cap Sub-assy, Oil Filler
1995-08 → —
|
3S#,5SFE ST20# | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
1993-11 → —
|
3S#,5SFE ST20# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
