Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

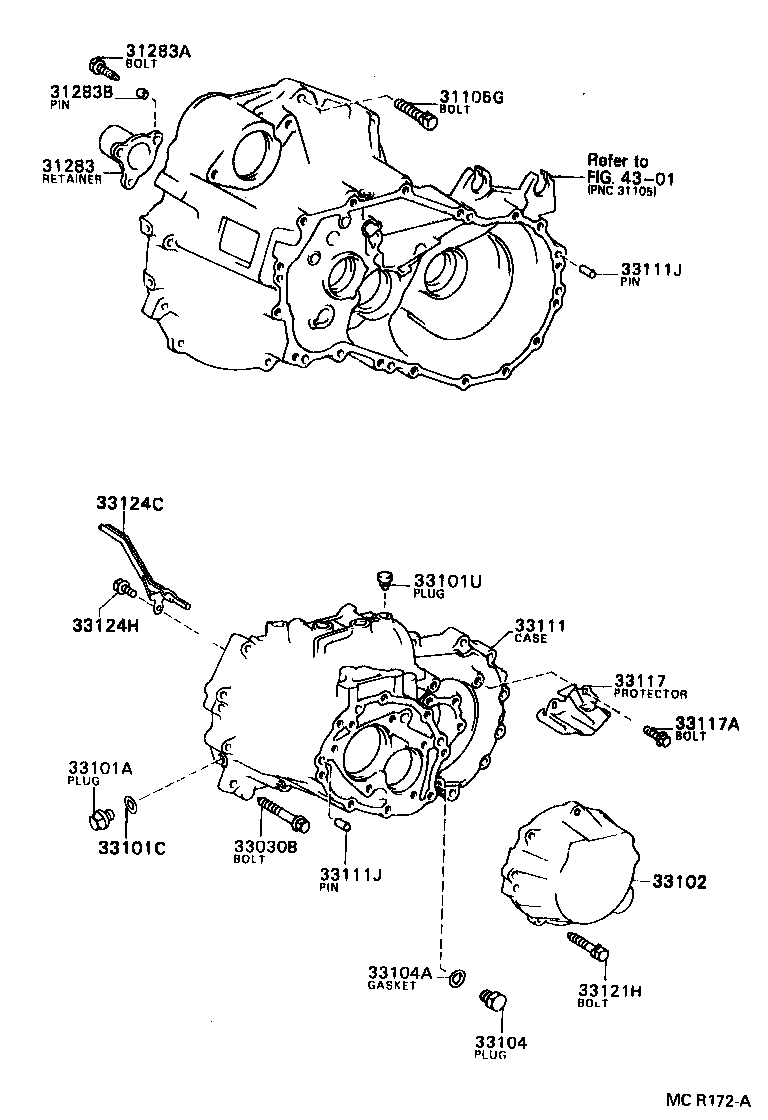

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31105G — Bolt(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-08040 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
1993-11 → —
|
ST202,204 MTM | — | |
| 90105-10077 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
1993-11 → —
|
ST20# MTM | — | |
| 90119-12168 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
1993-11 → —
|
ST20# MTM | — | |
| 91651-41022 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
1993-11 → —
|
ST20# MTM | — | |
| 31283 — Retainer, Clutch Release Bearing Hub | ||||
| 31283-32010 |
Retainer, Clutch Release Bearing Hub
1993-11 → —
|
ST202,204 MTM | — | |
| 31283A — Bolt(FOR CLUTCH RELEASE BEARING HUB RETAINER) | ||||
| 90105-06023 |
Bolt(FOR CLUTCH RELEASE BEARING HUB RETAINER)
1993-11 → —
|
ST202,204 MTM | — | |
| 31283B — Pin, Ring(FOR CLUTCH RELEASE BEARING HUB RETAINER) | ||||
| 90253-08002 |
Pin, Ring(FOR CLUTCH RELEASE BEARING HUB RETAINER)
1993-11 → —
|
ST202,204 MTM | — | |
| 33030B — Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08042 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
1993-11 → —
|
ST202,204 MTM | — | |
| 90105-08126 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
1994-02 → —
|
ST205 | — | |
| 33101A — Plug(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
Plug(FOR MANUAL TRANSMISSION FILLER)
1993-11 → —
|
ST202,204 MTM | — | |
| 90341-18033 |
Plug(FOR MANUAL TRANSMISSION FILLER)
1994-02 → —
|
ST205 | — | |
| 33101C — Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
1993-11 → —
|
ST20# MTM | — | |
| 33101U — Plug, Breather(FOR MANUAL TRANSMISSION) | ||||
| 90930-03111 |
Plug, Breather(FOR MANUAL TRANSMISSION)
1994-02 → 1996-08
ended
|
ST205 | — | |
| 90930-03133 |
Plug, Breather(FOR MANUAL TRANSMISSION)
1993-11 → —
|
ST202,204 MTM | — | |
| 90930-03148 |
Plug, Breather(FOR MANUAL TRANSMISSION)
1996-08 → —
|
ST205 | — | |
| 33102 — Cover Sub-assy, Manual Transmission Case | ||||
| 33102-33010 |
Cover Sub-assy, Manual Transmission Case
1994-02 → —
|
ST205 | — | |
| 33102-33020 |
Cover Sub-assy, Manual Transmission Case
1993-11 → —
|
ST202,204 MTM | — | |
| 33104 — Plug Sub-assy, Drain(MTM) | ||||
| 90341-18006 |
Plug Sub-assy, Drain(MTM)
1993-11 → —
|
ST20# MTM | — | |
| 33104A — Gasket, Drain Plug(MTM) | ||||
| 90430-18008 |
Gasket, Drain Plug(MTM)
1993-11 → —
|
ST20# MTM | — | |
| 33111 — Case, Manual Transmission | ||||
| 33101-20050 |
Case, Manual Transmission
1994-02 → —
|
ST205 | — | |
| 33111-32030 |
Case, Manual Transmission
1997-04 → —
|
ST202,204 MTM | — | |
| 33111-33030 |
Case, Manual Transmission
1993-11 → 1994-11
ended
|
ST202,204 MTM | — | |
| 33111-33031 |
Case, Manual Transmission
1994-11 → 1997-04
ended
|
ST202,204 MTM | — | |
| 33111J — Pin, Straight(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
1993-11 → —
|
ST20# MTM | — | |
| 33117 — Protector, Manual Transmission Case | ||||
| 33117-20020 |
Protector, Manual Transmission Case
1994-02 → —
|
ST205 | — | |
| 33117-32011 |
Protector, Manual Transmission Case
1993-11 → —
|
ST202,204 MTM | — | |
| 33117A — Bolt(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
Bolt(FOR MANUAL TRANSMISSION CASE PROTECTOR)
1993-11 → —
|
ST20# MTM | — | |
| 33121H — Bolt, W/Washer(FOR TRANSMISSION CASE COVER) | ||||
| 90105-08273 |
Bolt, W/Washer(FOR TRANSMISSION CASE COVER)
1993-11 → —
|
ST202,204 MTM | — | |
| 90105-08273 |
Bolt, W/Washer(FOR TRANSMISSION CASE COVER)
1994-02 → —
|
ST205 | — | |
| 33124C — Pipe, Oil Receiver, NO.1(MTM) | ||||
| 33124-20020 |
Pipe, Oil Receiver, NO.1(MTM)
1994-02 → —
|
ST205 | — | |
| 33124-33010 |
Pipe, Oil Receiver, NO.1(MTM)
1993-11 → —
|
ST202,204 MTM | — | |
| 33124H — Bolt(FOR OIL RECEIVER PIPE) | ||||
| 90119-08648 |
Bolt(FOR OIL RECEIVER PIPE)
1994-02 → —
|
ST205 | — | |
| 91651-60618 |
Bolt(FOR OIL RECEIVER PIPE)
1993-11 → —
|
ST202,204 MTM | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
