Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

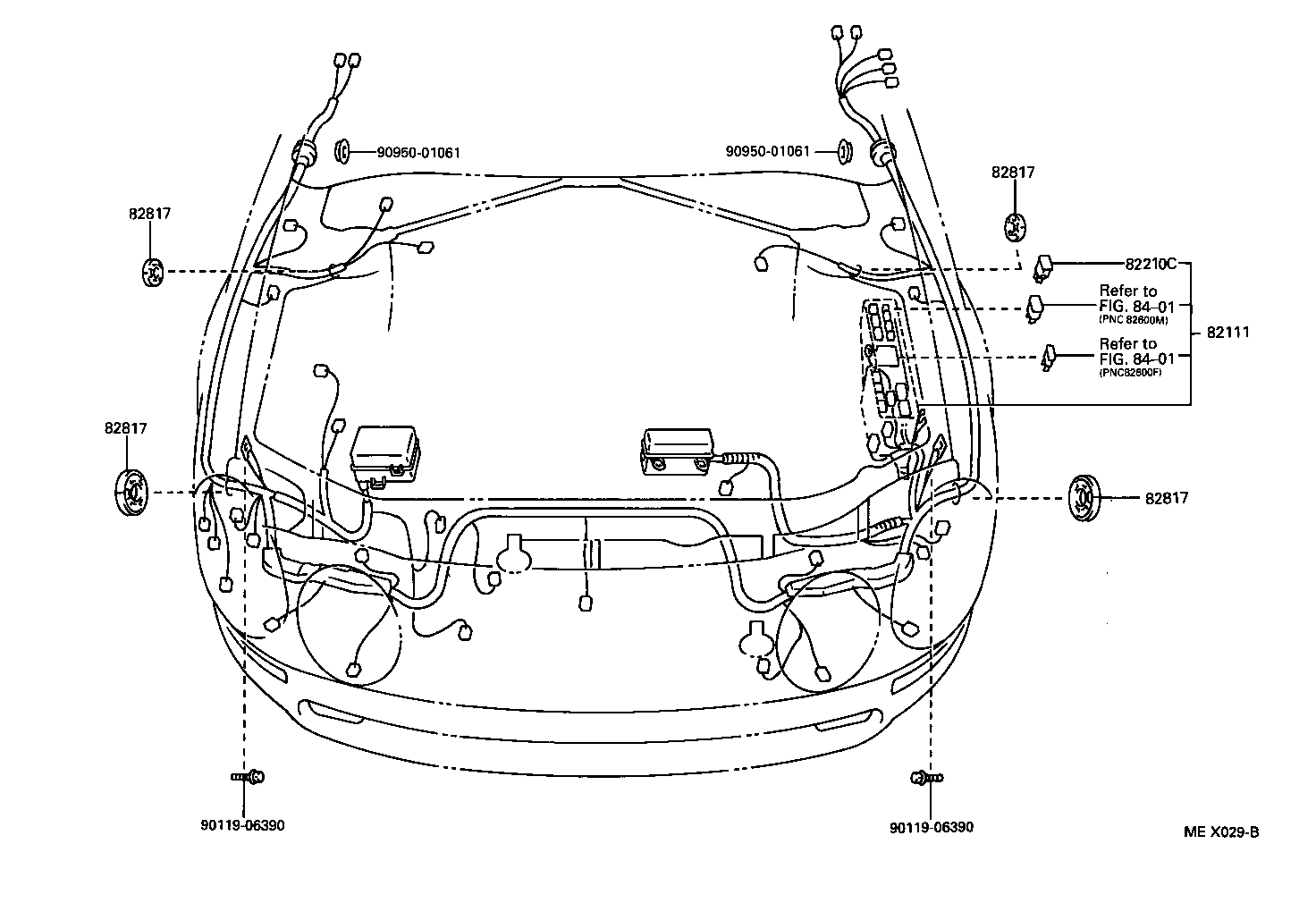

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82111 — Wire, Engine Room Main | ||||
| 82111-2G760 |
Wire, Engine Room Main
1993-11 → 1995-08
ended
|
ST202,204 RHD | — | |
| 82111-2G770 note |
Wire, Engine Room Main
1993-11 → 1995-08
ended
|
ST202,204 RHD | — | |
| 82111-2G780 |
Wire, Engine Room Main
1994-02 → 1995-08
ended
|
ST205 | — | |
| 82111-2H020 |
Wire, Engine Room Main
1993-11 → 1995-08
ended
|
ST202 LHD | — | |
| 82111-2H030 note |
Wire, Engine Room Main
1993-11 → 1995-08
ended
|
ST202 LHD | — | |
| 82111-2H810 |
Wire, Engine Room Main
1995-08 → 1997-11
ended
|
ST202,204 RHD | — | |
| 82111-2H811 |
Wire, Engine Room Main
1997-11 → —
|
ST202,204 RHD | — | |
| 82111-2H820 note |
Wire, Engine Room Main
1995-08 → 1996-06
ended
|
ST202,204 RHD | — | |
| 82111-2H821 note |
Wire, Engine Room Main
1996-06 → 1997-12
ended
|
ST202,204 RHD | — | |
| 82111-2H822 note |
Wire, Engine Room Main
1997-12 → —
|
ST202,204 RHD | — | |
| 82111-2H830 |
Wire, Engine Room Main
1995-08 → 1996-06
ended
|
ST205 | — | |
| 82111-2H831 |
Wire, Engine Room Main
1996-06 → 1997-12
ended
|
ST205 | — | |
| 82111-2H832 |
Wire, Engine Room Main
1997-12 → —
|
ST205 | — | |
| 82111-2H860 |
Wire, Engine Room Main
1995-08 → 1996-06
ended
|
ST202 LHD | — | |
| 82111-2H861 |
Wire, Engine Room Main
1996-06 → 1997-11
ended
|
ST202 LHD | — | |
| 82111-2H862 |
Wire, Engine Room Main
1997-11 → —
|
ST202 LHD | — | |
| 82111-2H870 note |
Wire, Engine Room Main
1995-08 → 1996-06
ended
|
ST202 LHD | — | |
| 82111-2H871 note |
Wire, Engine Room Main
1996-06 → 1997-12
ended
|
ST202 LHD | — | |
| 82111-2H872 note |
Wire, Engine Room Main
1997-12 → —
|
ST202 LHD | — | |
| 82210C — Fusible Link | ||||
| 90982-08189 note |
Fusible Link
1993-11 → —
|
ST20# | — | |
| 90982-08190 note |
Fusible Link
1993-11 → —
|
ST20# | — | |
| 90982-08227 note |
Fusible Link
1993-11 → —
|
ST20# | — | |
| 90982-08246 note |
Fusible Link
1993-11 → —
|
ST20# | — | |
| 82817 — Protector, Wiring Harness, NO.1 | ||||
| 82817-2B730 note |
Protector, Wiring Harness, NO.1
1993-11 → —
|
ST20# | — | |
| 82817-2D840 note |
Protector, Wiring Harness, NO.1
1993-11 → —
|
ST20# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
