Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

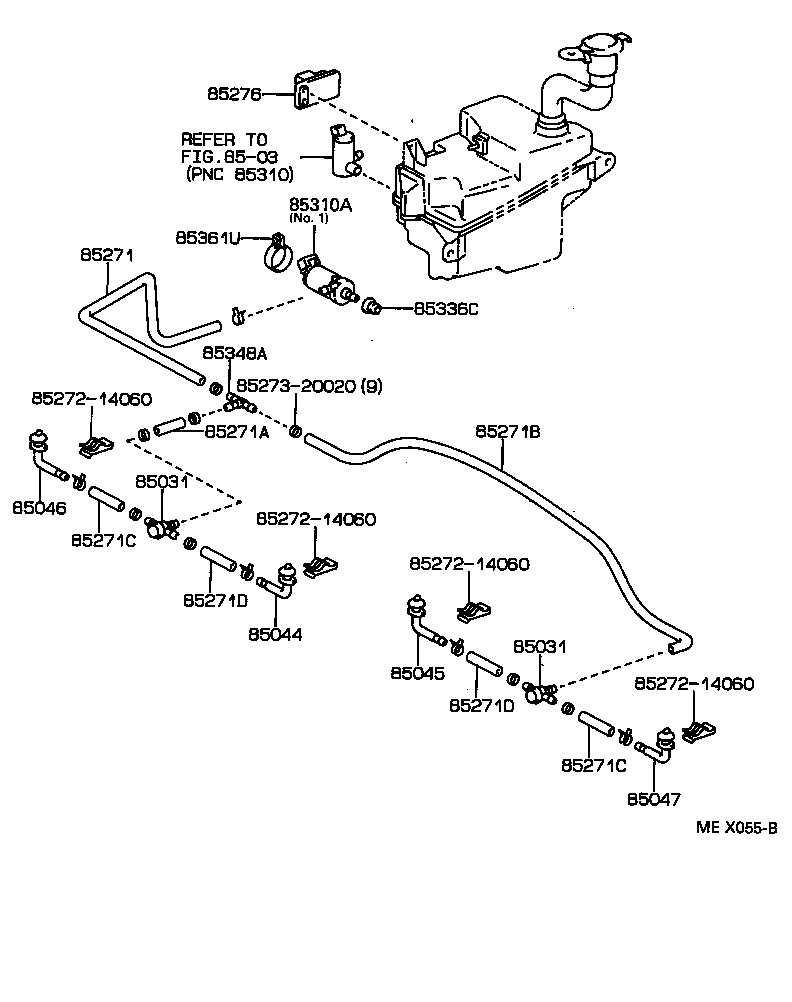

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85031 — Valve, Headlamp Cleaner Washer Hose | ||||
| 85031-12010 |
Valve, Headlamp Cleaner Washer Hose
1994-02 → 1995-08
ended
|
ST205 | — | |
| 85044 — Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH | ||||
| 85044-20060 |
Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH
1994-02 → —
|
ST205 | — | |
| 85045 — Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH | ||||
| 85045-20050 |
Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH
1994-02 → —
|
ST205 | — | |
| 85046 — Nozzle Sub-assy, TYPE2 H/Lamp Washer, RH | ||||
| 85046-20010 |
Nozzle Sub-assy, TYPE2 H/Lamp Washer, RH
1994-02 → —
|
ST205 | — | |
| 85047 — Nozzle Sub-assy, TYPE2 H/Lamp Washer, LH | ||||
| 85047-20010 |
Nozzle Sub-assy, TYPE2 H/Lamp Washer, LH
1994-02 → —
|
ST205 | — | |
| 85271 — Hose, Headlamp Cleaner, NO.1 | ||||
| 85277-20030 |
Hose, Headlamp Cleaner, NO.1
1994-02 → 1995-08
ended
|
ST205 | — | |
| 85376-12380 note |
Hose, Headlamp Cleaner, NO.1
1994-02 → 1994-10
ended
|
ST205 | — | |
| 85271A — Hose, Headlamp Cleaner, NO.2 | ||||
| 85275-42010 note |
Hose, Headlamp Cleaner, NO.2
1994-02 → 1995-08
ended
|
ST205 | — | |
| 85271B — Hose, Headlamp Cleaner, NO.3 | ||||
| 85275-20030 note |
Hose, Headlamp Cleaner, NO.3
1994-02 → 1995-08
ended
|
ST205 | — | |
| 85271C — Hose, Headlamp Cleaner, NO.4 | ||||
| 90445-14048 note |
Hose, Headlamp Cleaner, NO.4
1994-02 → 1995-08
ended
|
ST205 | — | |
| 85271D — Hose, Headlamp Cleaner, NO.5 | ||||
| 90445-14055 note |
Hose, Headlamp Cleaner, NO.5
1994-02 → 1995-08
ended
|
ST205 | — | |
| 90445-14071 note |
Hose, Headlamp Cleaner, NO.5
1994-02 → 1995-08
ended
|
ST205 | — | |
| 85276 — Relay, Cleaner Control | ||||
| 85942-33010 |
Relay, Cleaner Control
1994-02 → —
|
ST205 | — | |
| 85310A — Motor And Pump Assy, Headlamp Cleaner Washer | ||||
| 85310-12190 |
Motor And Pump Assy, Headlamp Cleaner Washer
1994-02 → 1995-08
ended
|
ST205 | — | |
| 85336C — Packing, Headlamp Cleaner Motor | ||||
| 85336-10010 note |
Packing, Headlamp Cleaner Motor
1994-02 → 1994-10
ended
|
ST205 | — | |
| 85336-10010 |
Packing, Headlamp Cleaner Motor
1994-02 → —
|
ST205 | — | |
| 85348A — Joint, Headlamp Cleaner Hose, NO.1 | ||||
| 85352-12010 |
Joint, Headlamp Cleaner Hose, NO.1
1994-02 → 1995-08
ended
|
ST205 | — | |
| 85361U — Bracket, Headlamp Cleaner Washer | ||||
| 85361-33020 note |
Bracket, Headlamp Cleaner Washer
1994-02 → 1994-10
ended
|
ST205 | — | |
| 85361-33020 |
Bracket, Headlamp Cleaner Washer
1994-02 → —
|
ST205 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
