Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

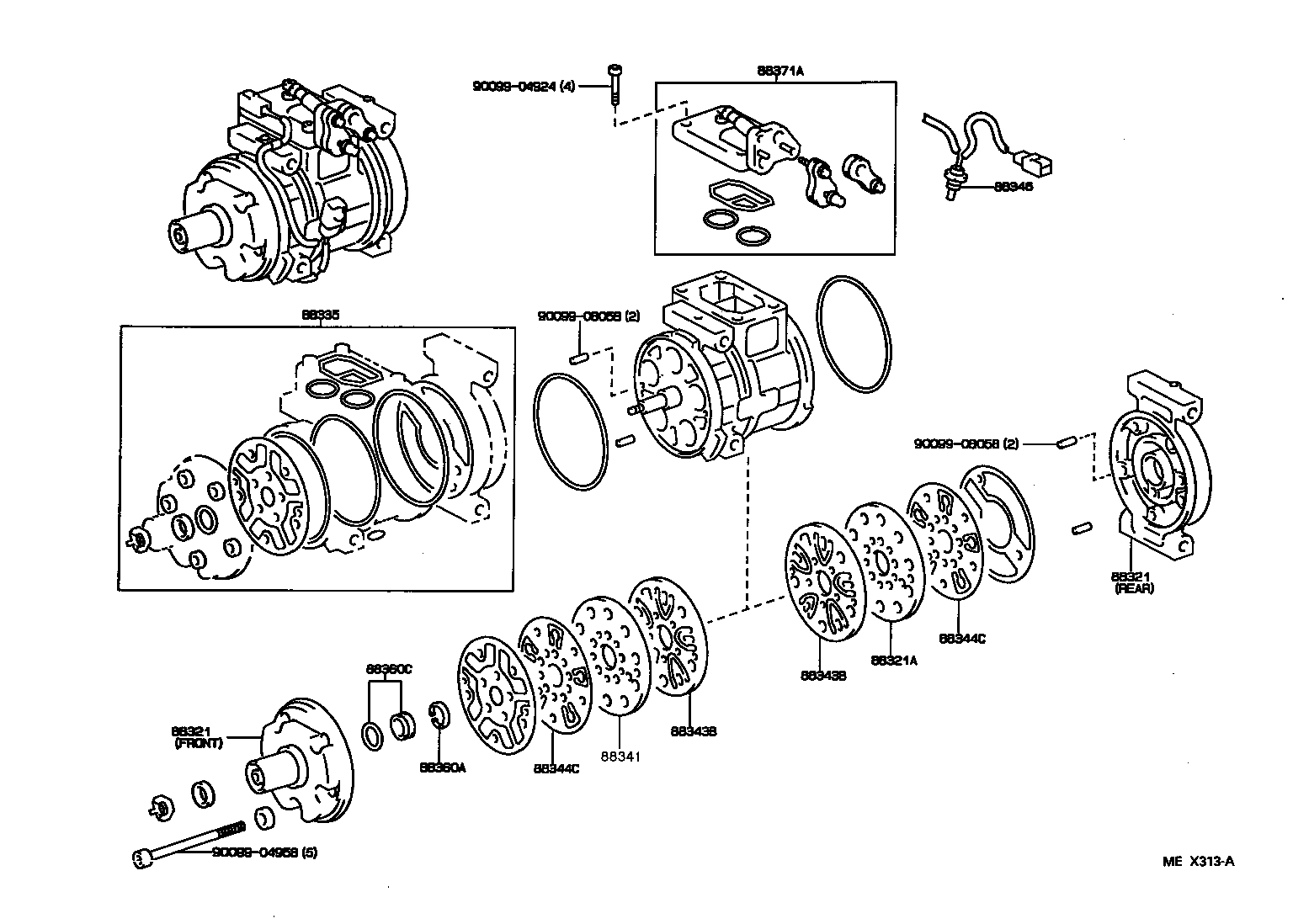

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88321 — Head, Cooler Compressor Cylinder | ||||
| 88321-2B010 note |
Head, Cooler Compressor Cylinder
1993-11 → 1996-01
ended
|
ST202 | — | |
| 88321-2B010 note |
Head, Cooler Compressor Cylinder
1996-01 → —
|
ST202 GCC | — | |
| 88321-32010 note |
Head, Cooler Compressor Cylinder
1993-11 → —
|
ST204,205 | — | |
| 88322-2B010 note |
Head, Cooler Compressor Cylinder
1993-11 → 1995-08
ended
|
ST202 GEN | — | |
| 88322-2B020 note |
Head, Cooler Compressor Cylinder
1993-11 → 1995-08
ended
|
ST205;ST204 ATM | — | |
| 88322-2B020 note |
Head, Cooler Compressor Cylinder
1995-08 → —
|
ST205 | — | |
| 88322-32040 note |
Head, Cooler Compressor Cylinder
1993-11 → 1995-08
ended
|
ST202,204 MTM (ARL,GCC) | — | |
| 88322-32040 note |
Head, Cooler Compressor Cylinder
1995-08 → 1996-01
ended
|
ST202,204 | — | |
| 88322-32040 note |
Head, Cooler Compressor Cylinder
1996-01 → —
|
ST202,204 ARL,GCC | — | |
| 88321A — Plate Sub-assy, Valve | ||||
| 88342-20030 |
Plate Sub-assy, Valve
1995-08 → —
|
ST205 | — | |
| 88342-20030 |
Plate Sub-assy, Valve
1993-11 → 1995-08
ended
|
ST204 ATM;ST202,205 ARL,GEN | — | |
| 88342-22010 |
Plate Sub-assy, Valve
1993-11 → 1995-08
ended
|
ST202,204 MTM (ARL,GCC) | — | |
| 88342-22010 |
Plate Sub-assy, Valve
1995-08 → 1996-01
ended
|
ST202,204 | — | |
| 88342-22010 |
Plate Sub-assy, Valve
1996-01 → —
|
ST202,204 ARL,GCC | — | |
| 88335 — Gasket Kit, Overhaul | ||||
| 88335-2B010 |
Gasket Kit, Overhaul
1993-11 → 1995-08
ended
|
ST202 GCC | — | |
| 88335-2B020 |
Gasket Kit, Overhaul
1993-11 → 1995-08
ended
|
ST202 GEN;ST204 ATM | — | |
| 88335-2B030 |
Gasket Kit, Overhaul
1993-11 → 1995-08
ended
|
ST204 MTM | — | |
| 88335-2B030 |
Gasket Kit, Overhaul
1995-08 → 1996-01
ended
|
ST202,204 | — | |
| 88335-2B030 |
Gasket Kit, Overhaul
1996-01 → —
|
ST202,204 ARL,GCC | — | |
| 88335-2B040 |
Gasket Kit, Overhaul
1994-02 → —
|
ST205 | — | |
| 88341 — Plate, Front Valve | ||||
| 88341-22010 |
Plate, Front Valve
1993-11 → 1996-01
ended
|
ST20# | — | |
| 88341-22010 |
Plate, Front Valve
1996-01 → —
|
ST20# ARL,GCC | — | |
| 88343B — Reed, Suction Valve | ||||
| 88343-14020 |
Reed, Suction Valve
1993-11 → 1995-08
ended
|
ST202,205;ST204 ATM | — | |
| 88343-14020 |
Reed, Suction Valve
1995-08 → —
|
ST20# ARL,GCC | — | |
| 88343-14020 |
Reed, Suction Valve
1993-11 → 1995-08
ended
|
ST204 MTM | — | |
| 88343-14020 |
Reed, Suction Valve
1995-08 → 1996-01
ended
|
ST202 GEN | — | |
| 88344C — Reed, Discharge Valve | ||||
| 88344-22010 |
Reed, Discharge Valve
1993-11 → 1995-08
ended
|
ST204 ATM;ST202,205 ARL,GEN | — | |
| 88344-22010 |
Reed, Discharge Valve
1993-11 → 1995-08
ended
|
ST202,204 MTM (ARL,GCC) | — | |
| 88344-22010 |
Reed, Discharge Valve
1995-08 → 1996-01
ended
|
ST202,204 | — | |
| 88344-22010 |
Reed, Discharge Valve
1995-08 → —
|
ST205 | — | |
| 88344-22010 |
Reed, Discharge Valve
1996-01 → —
|
ST202,204 ARL,GCC | — | |
| 88346 — Sensor,Compressor | ||||
| 88336-2B100 |
Sensor,Compressor
1993-11 → —
|
ST202 GCC | — | |
| 88336-2B110 |
Sensor,Compressor
1996-01 → —
|
ST204 | — | |
| 88336-2B110 |
Sensor,Compressor
1995-08 → 1996-01
ended
|
ST202,204 ARL,GEN | — | |
| 88336-2B110 |
Sensor,Compressor
1993-11 → 1995-08
ended
|
ST204 MTM | — | |
| 88360A — Ring, Compressor Seal Plate Snap | ||||
| 90096-90022 |
Ring, Compressor Seal Plate Snap
1993-11 → 1996-01
ended
|
ST20# | — | |
| 90096-90022 |
Ring, Compressor Seal Plate Snap
1996-01 → —
|
ST20# ARL,GCC | — | |
| 88360C — Seal Assy, Shaft | ||||
| 88360-2B010 |
Seal Assy, Shaft
1993-11 → 1995-08
ended
|
ST202,204 ARL,GCC | — | |
| 88360-2B010 |
Seal Assy, Shaft
1995-08 → —
|
ST202 GCC | — | |
| 88360-2B020 |
Seal Assy, Shaft
1994-02 → 1995-08
ended
|
ST205 | — | |
| 88360-2B020 |
Seal Assy, Shaft
1995-08 → 1996-01
ended
|
ST20# ARL,GEN | — | |
| 88360-2B020 |
Seal Assy, Shaft
1996-01 → —
|
ST204,205 | — | |
| 88371A — Valve, Suction | ||||
| 88371-2B120 |
Valve, Suction
1993-11 → 1996-01
ended
|
ST20# ARL,GEN | — | |
| 88371-2B120 |
Valve, Suction
1996-01 → —
|
ST204,205 | — | |
| 88371-2B130 |
Valve, Suction
1993-11 → —
|
ST202 GCC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
