Toyota Celica
1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General
Discontinued model
Data version 2000-03

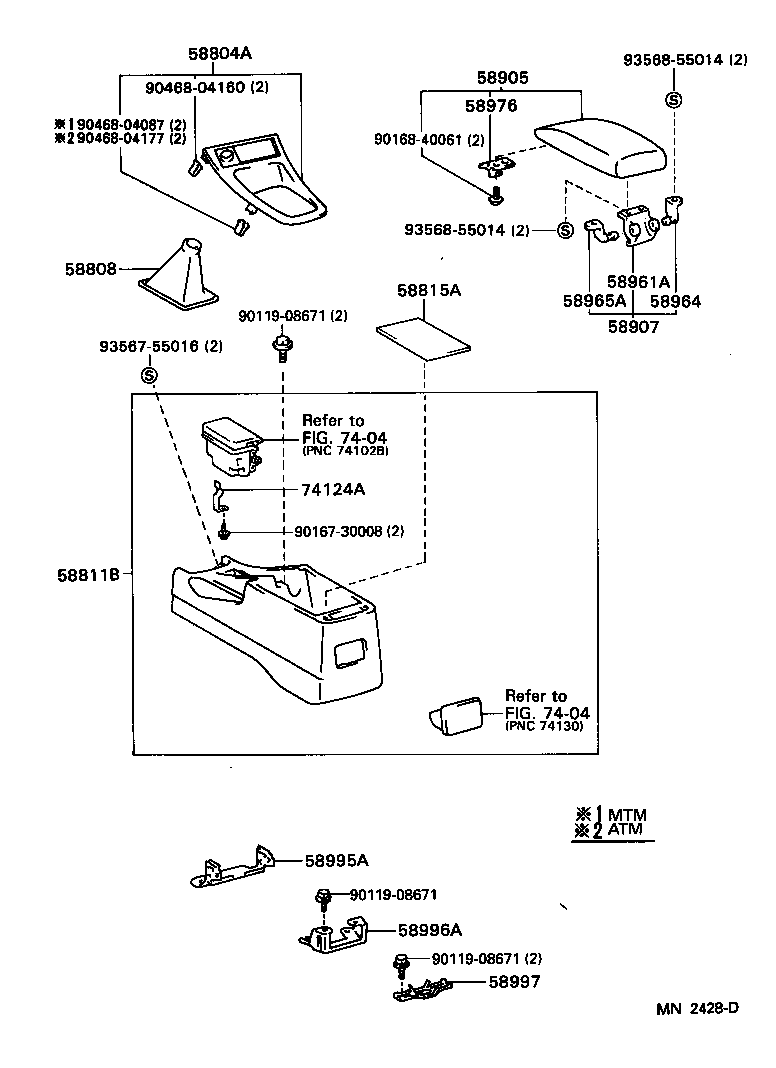

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58804A — Panel Sub-assy, Console, Upper | ||||
| 58804-20150 |
Panel Sub-assy, Console, Upper
1993-11 → —
|
ST204 ATM | — | |
| 58804-20160-C0 note |
Panel Sub-assy, Console, Upper
1993-11 → —
|
ST20# RHD MTM | — | |
| 58804-20170 |
Panel Sub-assy, Console, Upper
1993-11 → —
|
ST202 ATM | — | |
| 58804-20180-C0 note |
Panel Sub-assy, Console, Upper
1993-11 → —
|
ST202 LHD MTM | — | |
| 58808 — Cover Sub-assy, Shifting Hole | ||||
| 58808-20120-C0 note |
Cover Sub-assy, Shifting Hole
1993-11 → 1999-08
ended
|
ST20# MTM | — | |
| 58811B — Box, Console | ||||
| 58801-20230-C0 note |
Box, Console
1993-11 → 1995-08
ended
|
ST20# RHD | — | |
| 58801-20240-C0 note |
Box, Console
1993-11 → —
|
ST202 LHD | — | |
| 58801-20250-C0 note |
Box, Console
1995-08 → —
|
ST20# RHD | — | |
| 58815A — Carpet, Console Box | ||||
| 58815-20040 |
Carpet, Console Box
1993-11 → 1995-08
ended
|
ST20# RHD | — | |
| 58815-20050 |
Carpet, Console Box
1993-11 → 1995-08
ended
|
ST202 LHD | — | |
| 58815-20050 |
Carpet, Console Box
1995-08 → —
|
ST20# | — | |
| 58905 — Door Sub-assy, Console Compartment | ||||
| 58905-20220-C0 note |
Door Sub-assy, Console Compartment
1993-11 → —
|
ST20# RHD | — | |
| 58905-20230-C0 note |
Door Sub-assy, Console Compartment
1993-11 → —
|
ST202 LHD | — | |
| 58907 — Hinge Sub-assy, Console Compartment Door | ||||
| 58907-20030-C0 note |
Hinge Sub-assy, Console Compartment Door
1993-11 → —
|
ST20# | — | |
| 58961A — Hinge, Console Compartment Door Male | ||||
| 58961-20030 |
Hinge, Console Compartment Door Male
1993-11 → —
|
ST20# | — | |
| 58964 — Stopper, Console Compartment Door, NO.1 | ||||
| 58964-20030-C0 note |
Stopper, Console Compartment Door, NO.1
1993-11 → —
|
ST20# | — | |
| 58965A — Stopper, Console Compartment Door, NO.2 | ||||
| 58965-20040-C0 note |
Stopper, Console Compartment Door, NO.2
1993-11 → —
|
ST20# | — | |
| 58976 — Striker, Console Compartment Door Lock | ||||
| 58976-20020 |
Striker, Console Compartment Door Lock
1993-11 → —
|
ST20# | — | |
| 58995A — Bracket, Console Box Mounting, NO.1 | ||||
| 58995-20070 |
Bracket, Console Box Mounting, NO.1
1993-11 → —
|
ST20# MTM | — | |
| 58996A — Bracket, Console Box Mounting, NO.2 | ||||
| 58996-20060 |
Bracket, Console Box Mounting, NO.2
1993-11 → —
|
ST202 LHD | — | |
| 58996-20070 |
Bracket, Console Box Mounting, NO.2
1995-08 → —
|
ST20# RHD | — | |
| 58997 — Bracket, Console Box Mounting, NO.3 | ||||
| 58997-20050 |
Bracket, Console Box Mounting, NO.3
1993-11 → —
|
ST20# | — | |
| 74124A — Spring, Ash Receptacle | ||||
| 74124-20120 |
Spring, Ash Receptacle
1993-11 → —
|
ST20# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
