Toyota Celica

1993-11 → 1999-08 · chassis ST20# · catalogue 252370 · General

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

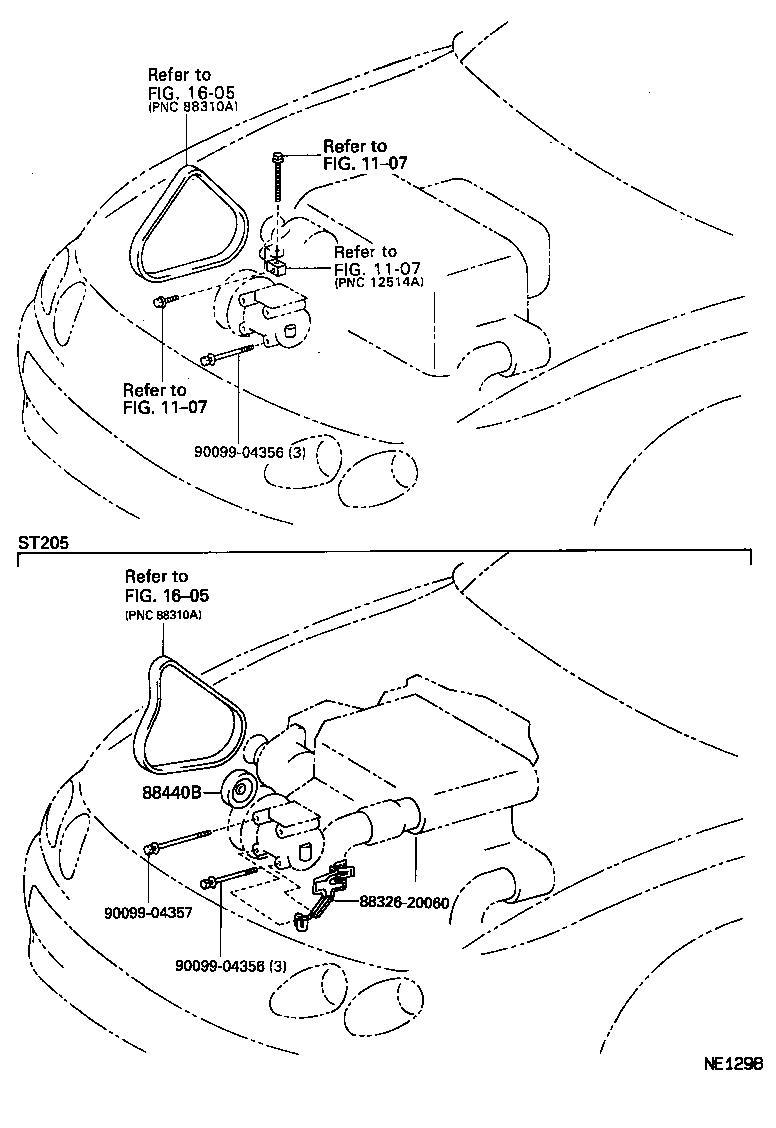

Exploded illustration NE1298 1605 — not listed in this catalogue 1107 — not listed in this catalogue 1107 — not listed in this catalogue 1107 — not listed in this catalogue 9009904356 — not listed in this catalogue 1605 — not listed in this catalogue 88440B — PULLEY ASSY, IDLE (1 parts) 8832620060 — not listed in this catalogue 9009904357 — not listed in this catalogue 9009904356 — not listed in this catalogue
NE1298 · 1 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
1 parts on this figure
Part number Description Fitment Price
88440B — Pulley Assy, Idle
88440-20120 Pulley Assy, Idle
1994-02 → —
ST205 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
