Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · General

Discontinued model Data version 1979-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

5 part groups · 3 illustrations

Illustrations

Figure MF2107

MF2107 1973-08 → 1975-11

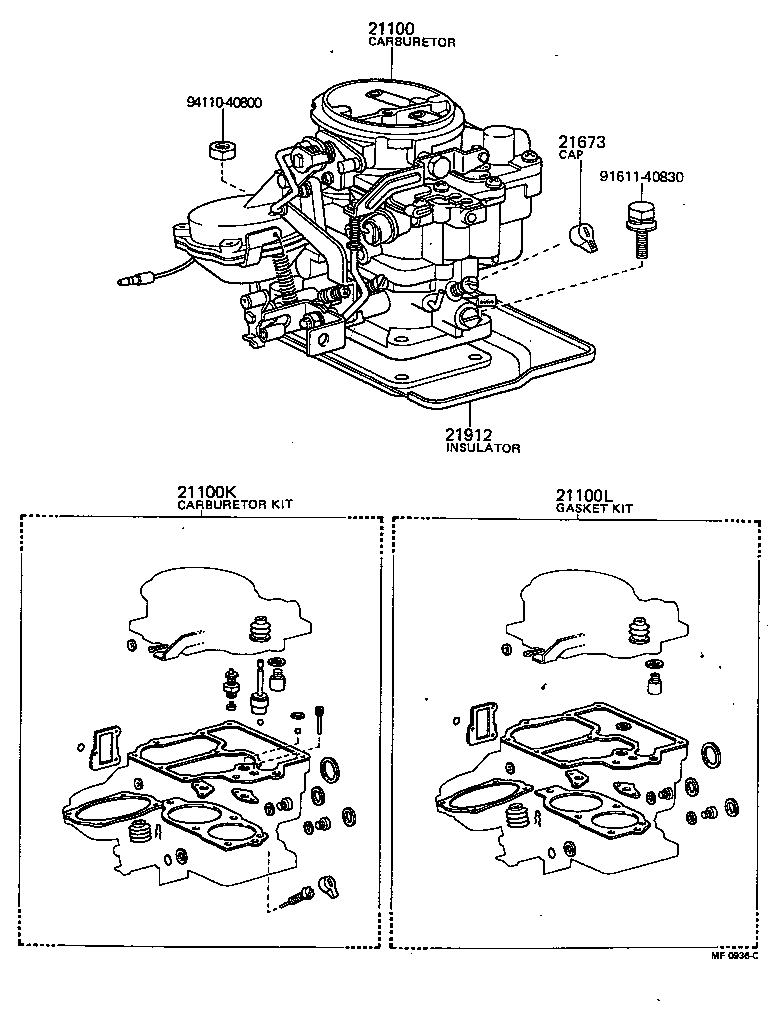

Figure MF0936C

MF0936C 1975-11 → 1978-08

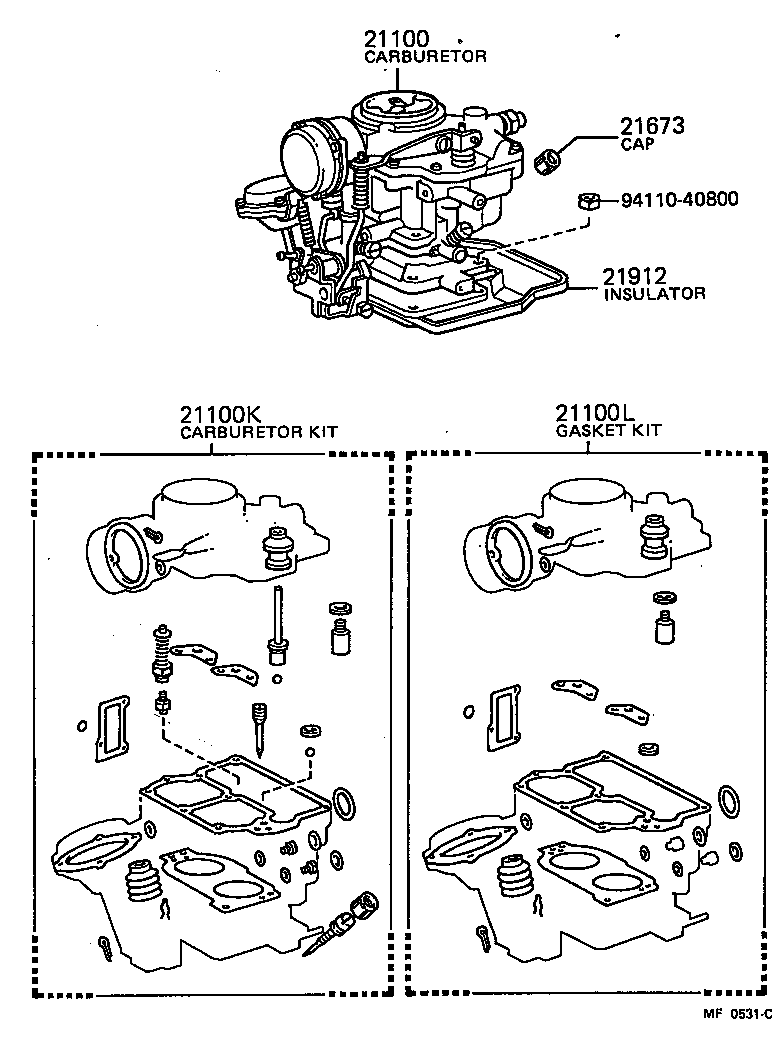

Figure MF0531C

MF0531C 1973-08 → 1979-05

Part groups

PNC	Description
21100	Carburetor Assy
21100K	Carburetor Kit
21100L	Gasket Kit, Carburetor
21673	Cap, Idle Limit
21912	Insulator, Carburetor Heat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
