Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · General

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

26 part groups · 8 illustrations

Illustrations

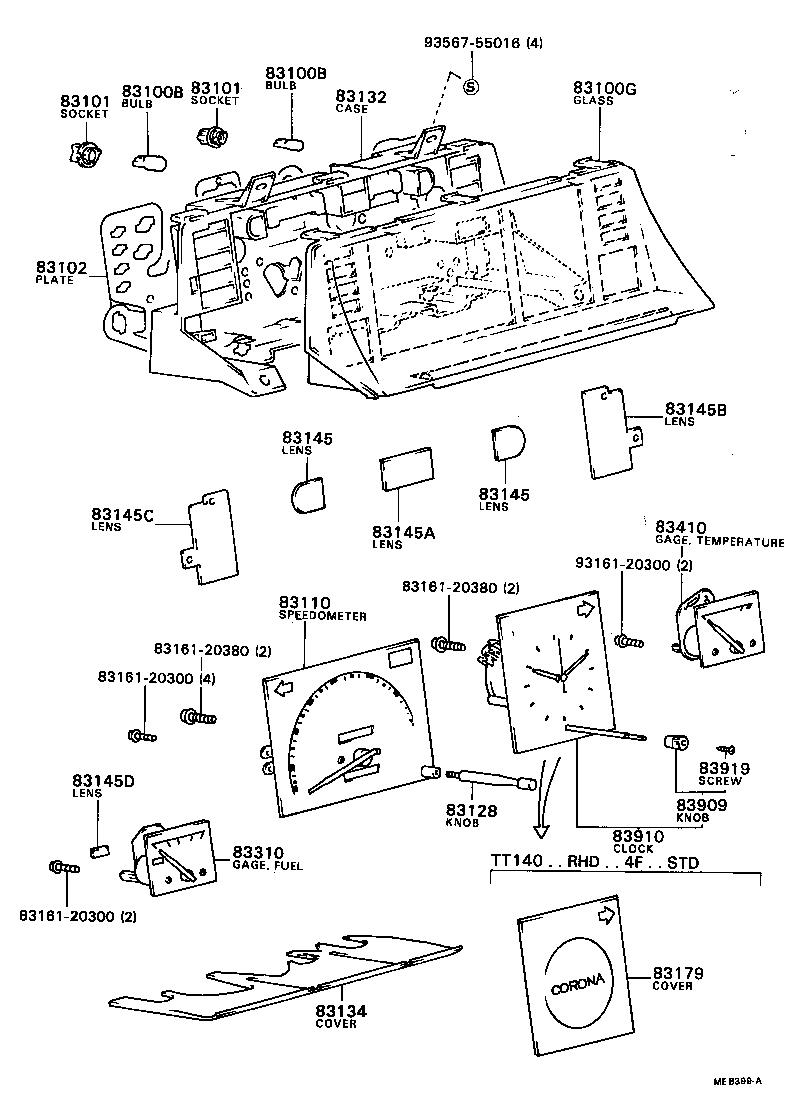

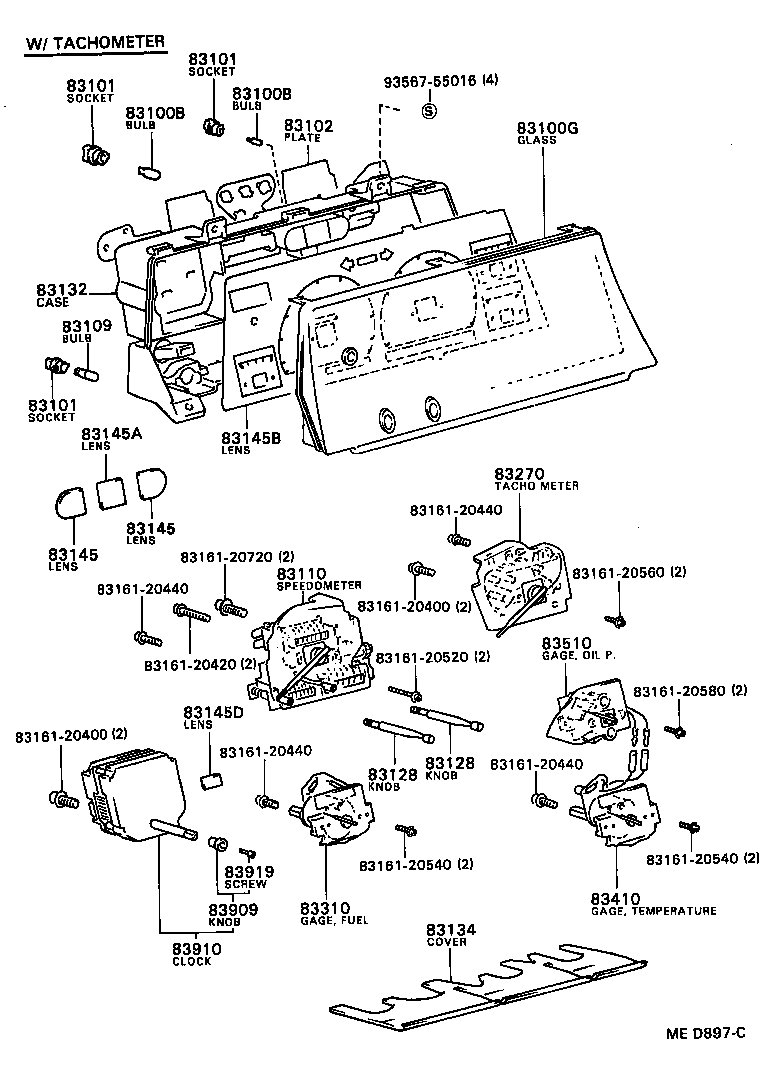

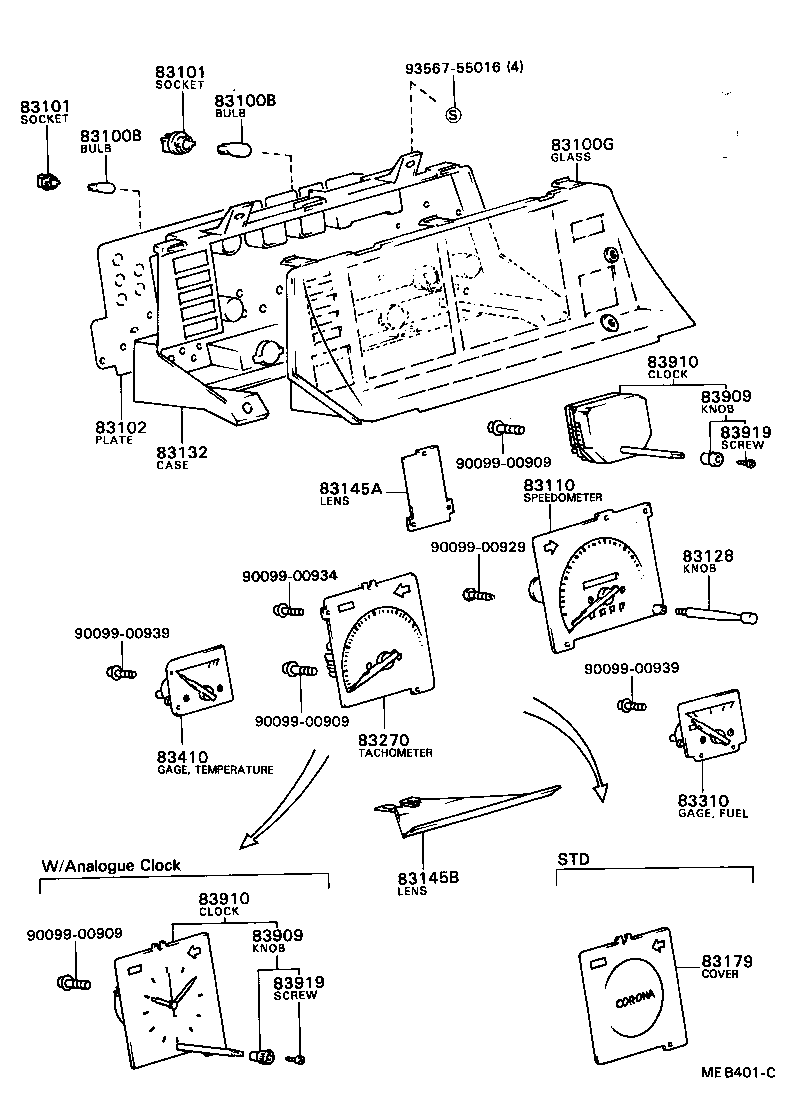

Figure MEB658D MEB658D 1982-01 → 1983-10 Figure MEB658D MEB658D 1986-01 → — Figure MEB399A MEB399A 1982-01 → 1985-08 Figure MEB399A MEB399A 1985-08 → 1986-12 Figure MED897C MED897C 1982-01 → 1985-08 Figure MED897C MED897C 1985-08 → 1986-12 Figure MEB401C MEB401C 1982-01 → — Figure 830583 830583 1982-01 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83128 Knob, Trip Counter
83132 Case, Combination Meter
83134 Cover, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83145D Lens, Meter, NO.5
83179 Cover, Combination Meter, Hole
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83510 Gage Assy, Oil Pressure Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83770 Adapter Assy, Speedometer Cable
83909 Knob, Clock
83910 Clock Assy
83910B Bulb, Clock Indicator
83915 Bracket, Clock
83919 Screw, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
