Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · General

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

12 part groups · 3 illustrations

Illustrations

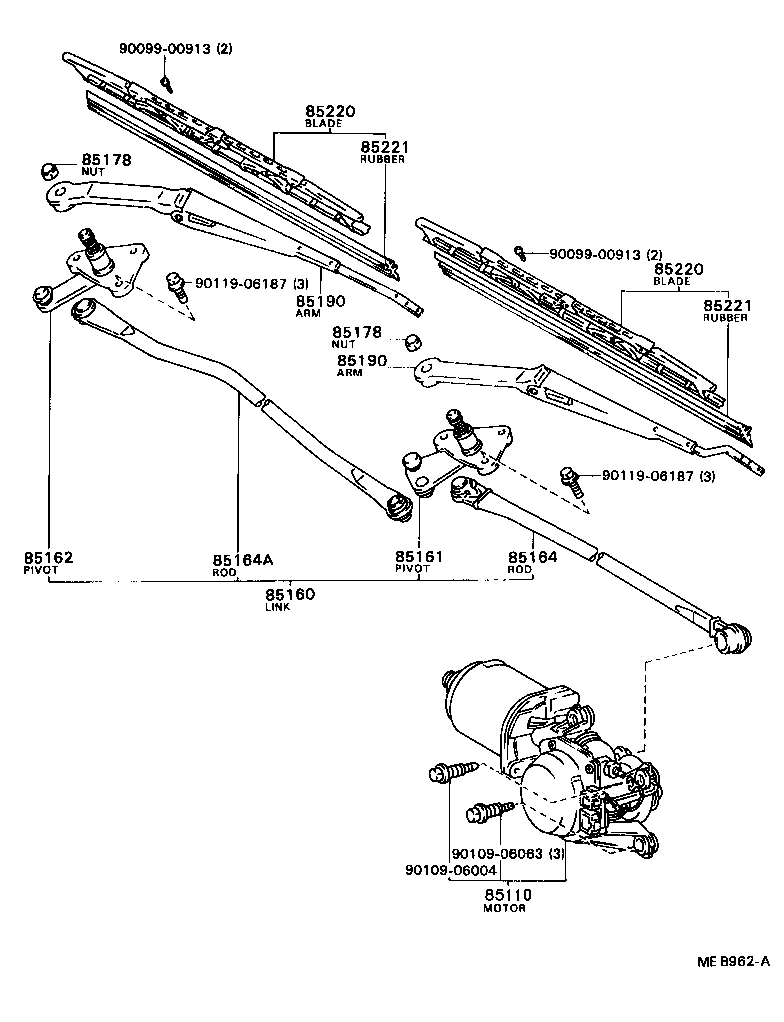

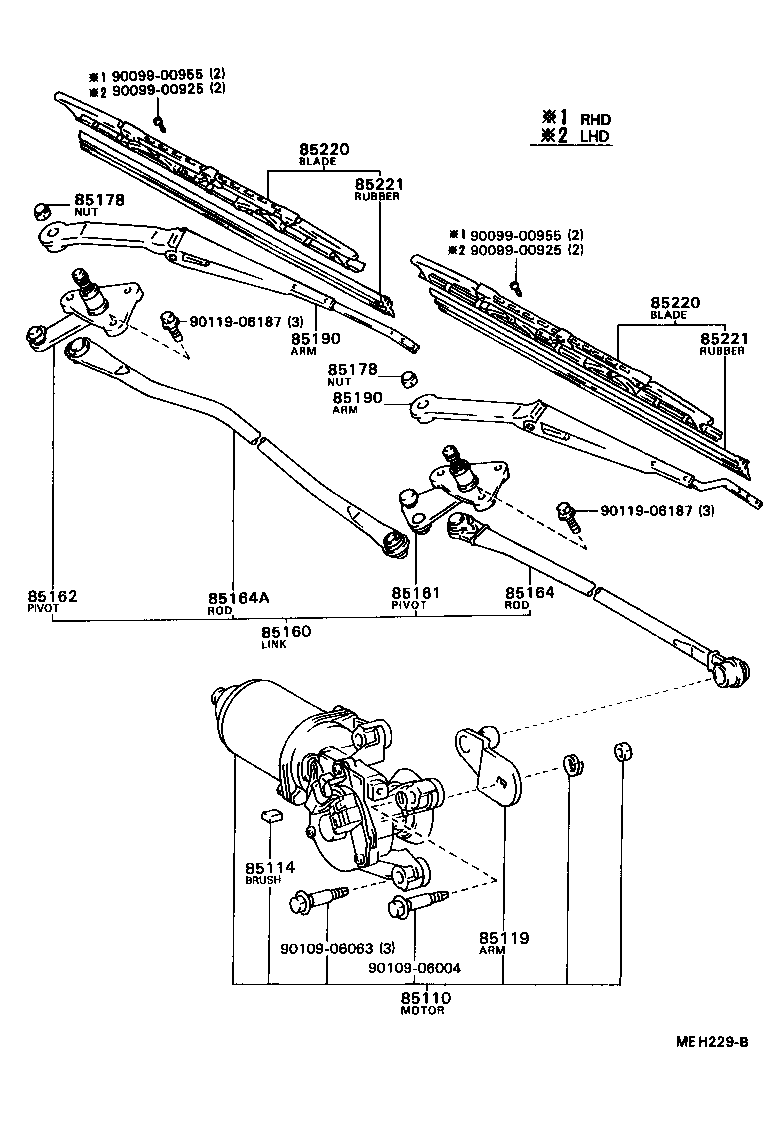

Figure MEB408 MEB408 1982-01 → 1982-03 Figure MEB962A MEB962A 1982-03 → — Figure MEH229B MEH229B 1986-01 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85114 Brush, Windshield Wiper Motor
85119 Crank, Windshield Wiper Motor
85160 Link Assy, Windshield Wiper
85161 Pivot, Windshield Wiper Link, NO.1
85162 Pivot, Windshield Wiper Link, NO.2
85164 Rod, Windshield Wiper Link, NO.1
85164A Rod, Windshield Wiper Link, NO.2
85178 Nut (FOR FRONT WIPER ARM SETTING)
85190 Arm Assy, Windshield Wiper
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
