Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · General

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

13 part groups · 3 illustrations

Illustrations

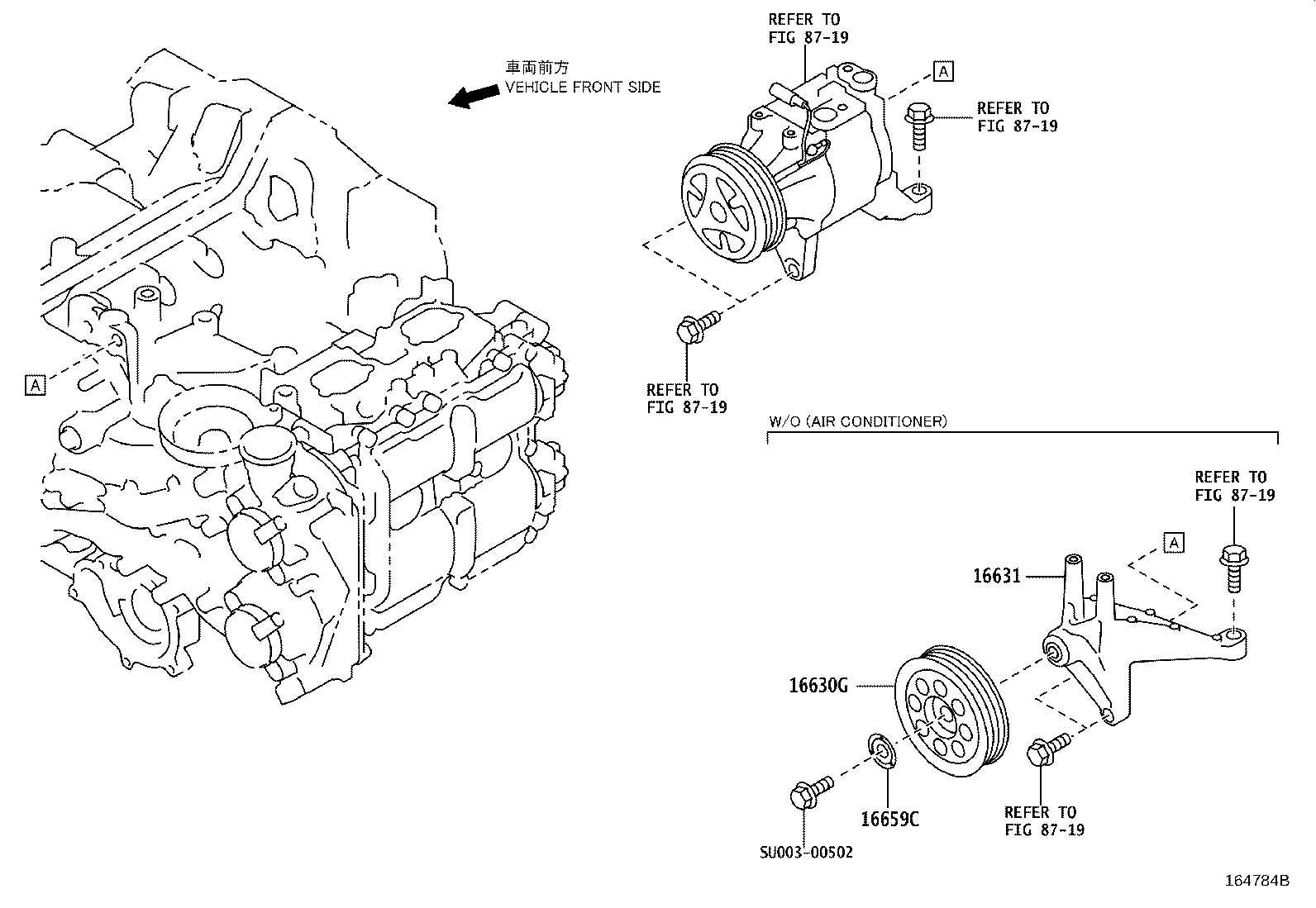

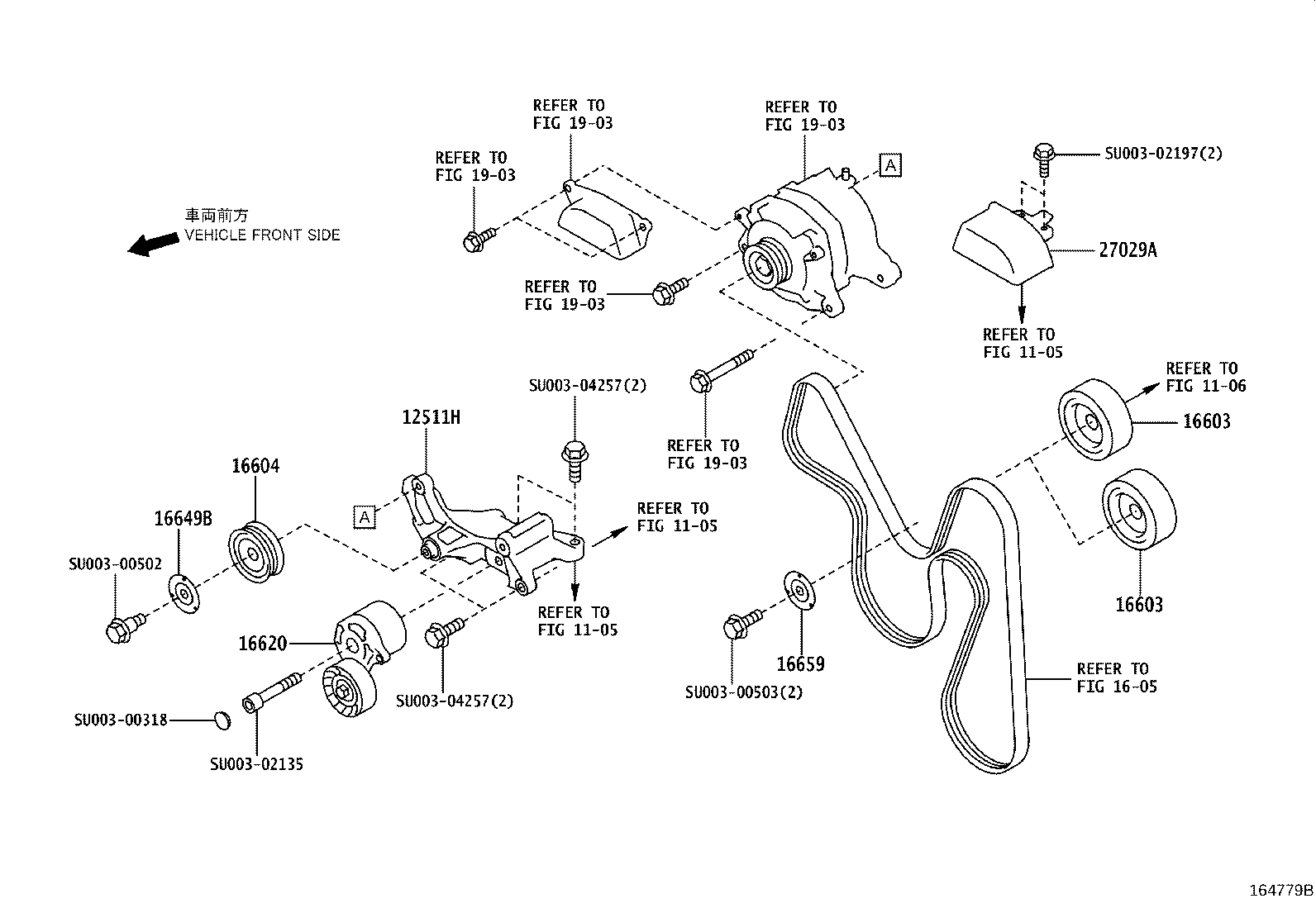

Figure 164778C 164778C 2012-04 → — Figure 164779B 164779B 2012-04 → — Figure 164784B 164784B 2012-04 → —

Part groups

PNCDescription
12511H Bracket, Alternator
16100 Pump Assy, Engine Water
16173 Pulley, Water Pump
16271 Gasket, Water Pump
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16630G Pulley Assy, Idler
16631 Bracket, Idler Pulley
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
16659C Plate, Idler Pulley Cover, NO.1
27029A Cover, Belt Alternator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
