Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · General

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

18 part groups · 4 illustrations

Illustrations

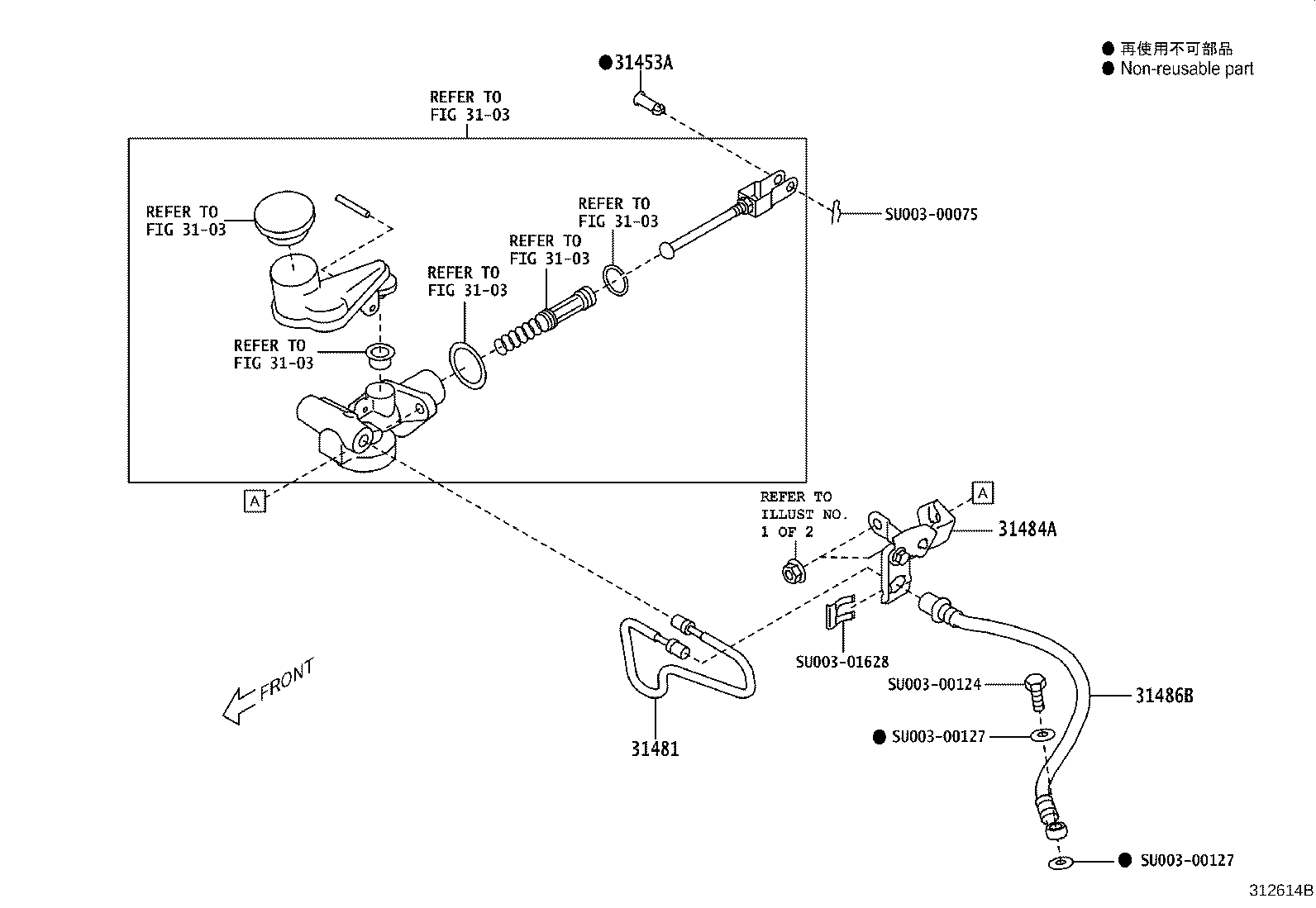

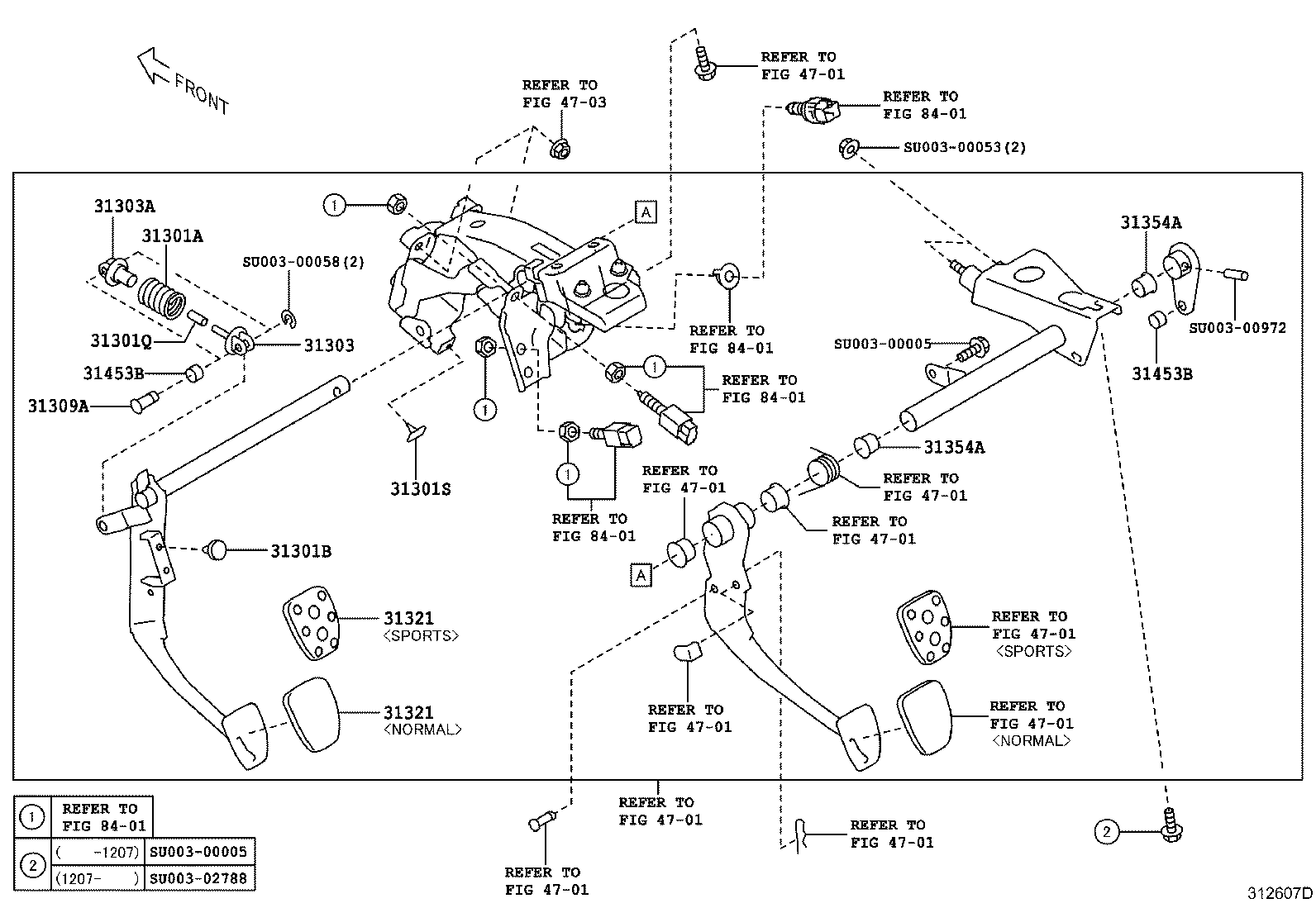

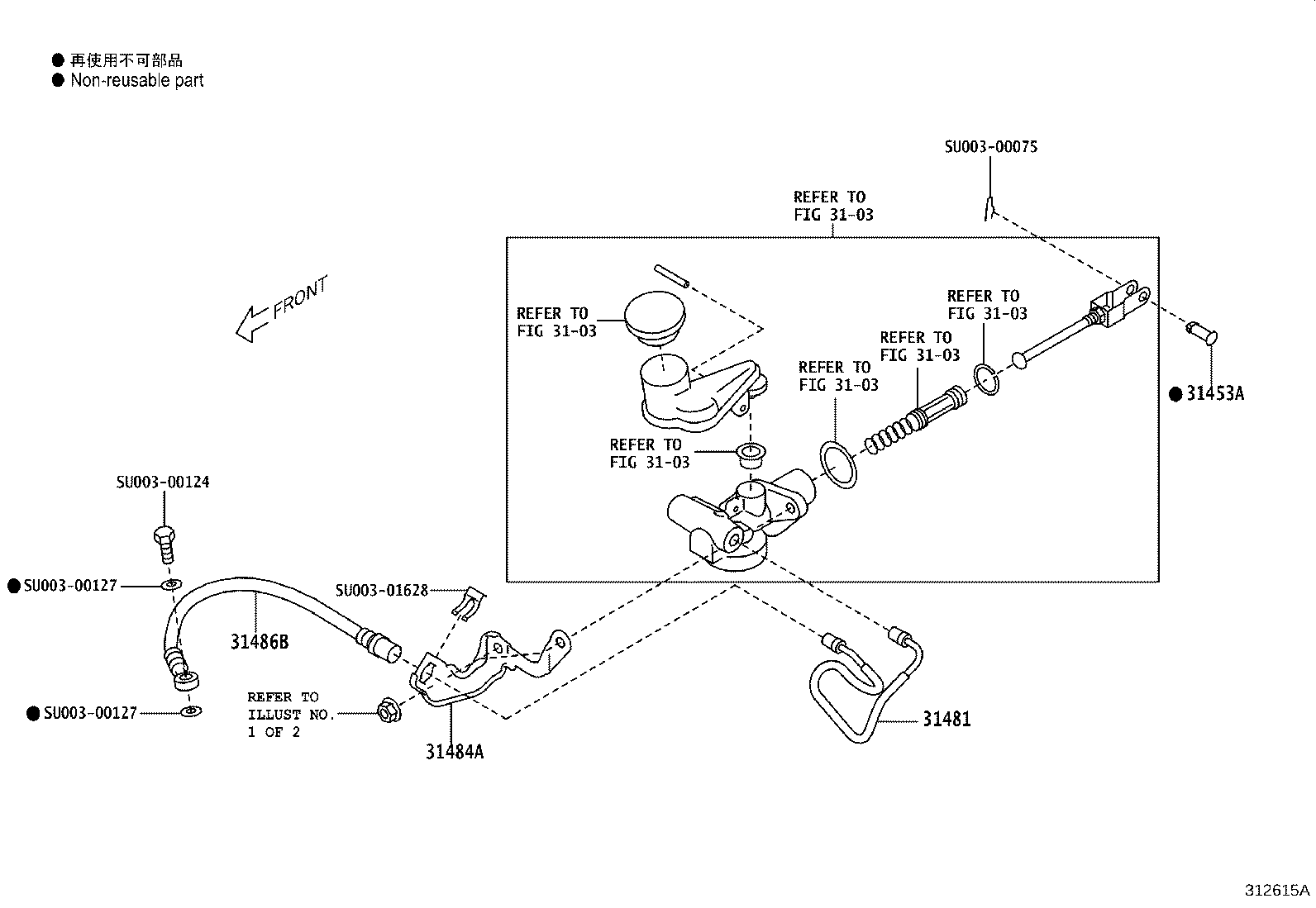

Figure 312674A 312674A 2012-04 → — Figure 312607D 312607D 2012-04 → — Figure 312614B 312614B 2012-04 → — Figure 312615A 312615A 2012-04 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301Q Bush(FOR CLUTCH PEDAL SPRING)
31301S Cushion, NO.2(FOR CLUTCH PEDAL)
31303 Rod Sub-assy, Pedal Return Spring
31303A Rod Sub-assy, Pedal Return Spring
31309A Pin, W/Hole(FOR PEDAL RETURN SPRING CLEVIS)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31354A Bush(FOR CLUTCH PEDAL SPRING SEAT UPPER)
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31486B Hose, Master Cylinder TO Release Cylinder
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
