Rear Axle Shaft & Hub

33 part groups · 3 illustrations

Illustrations

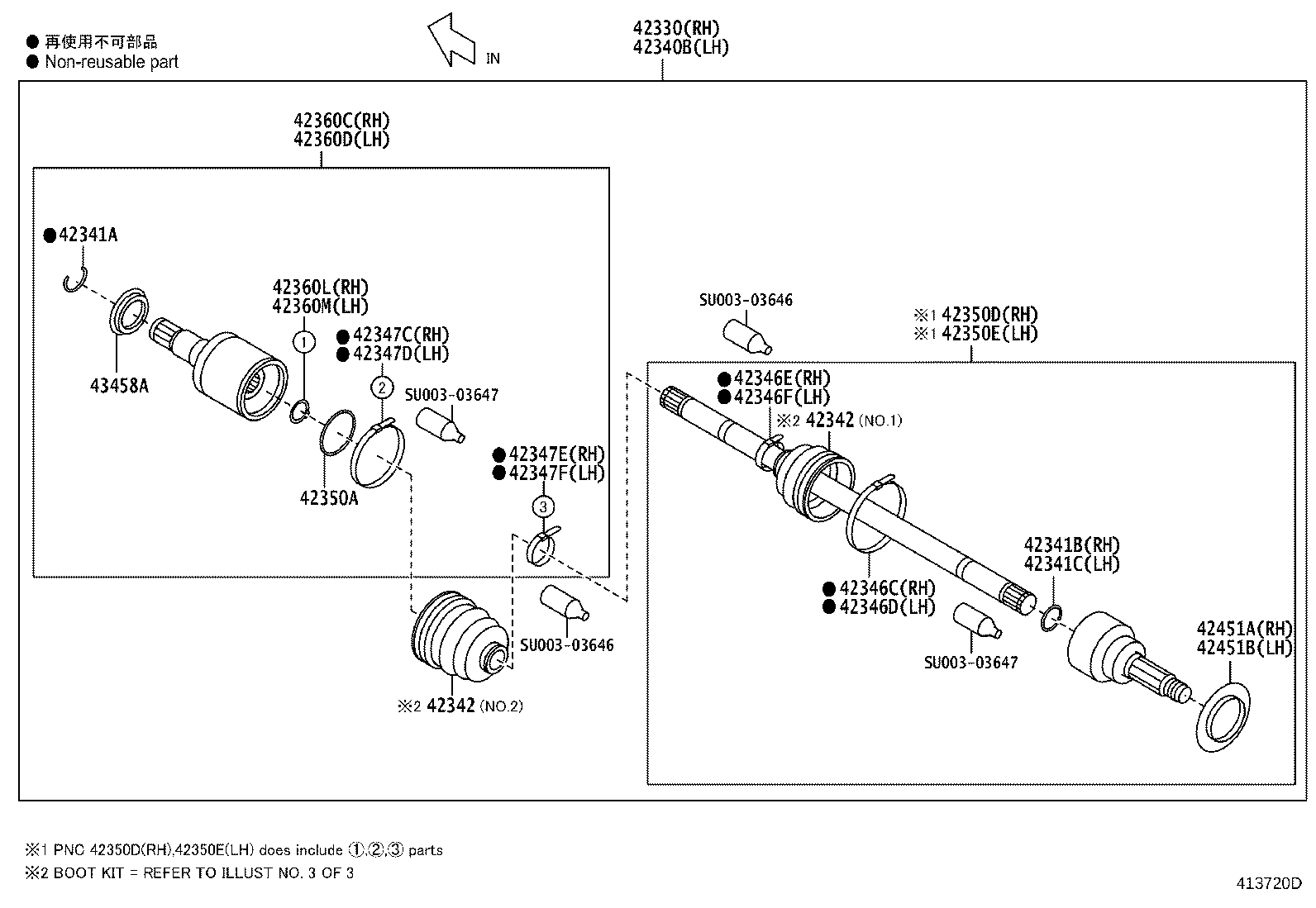

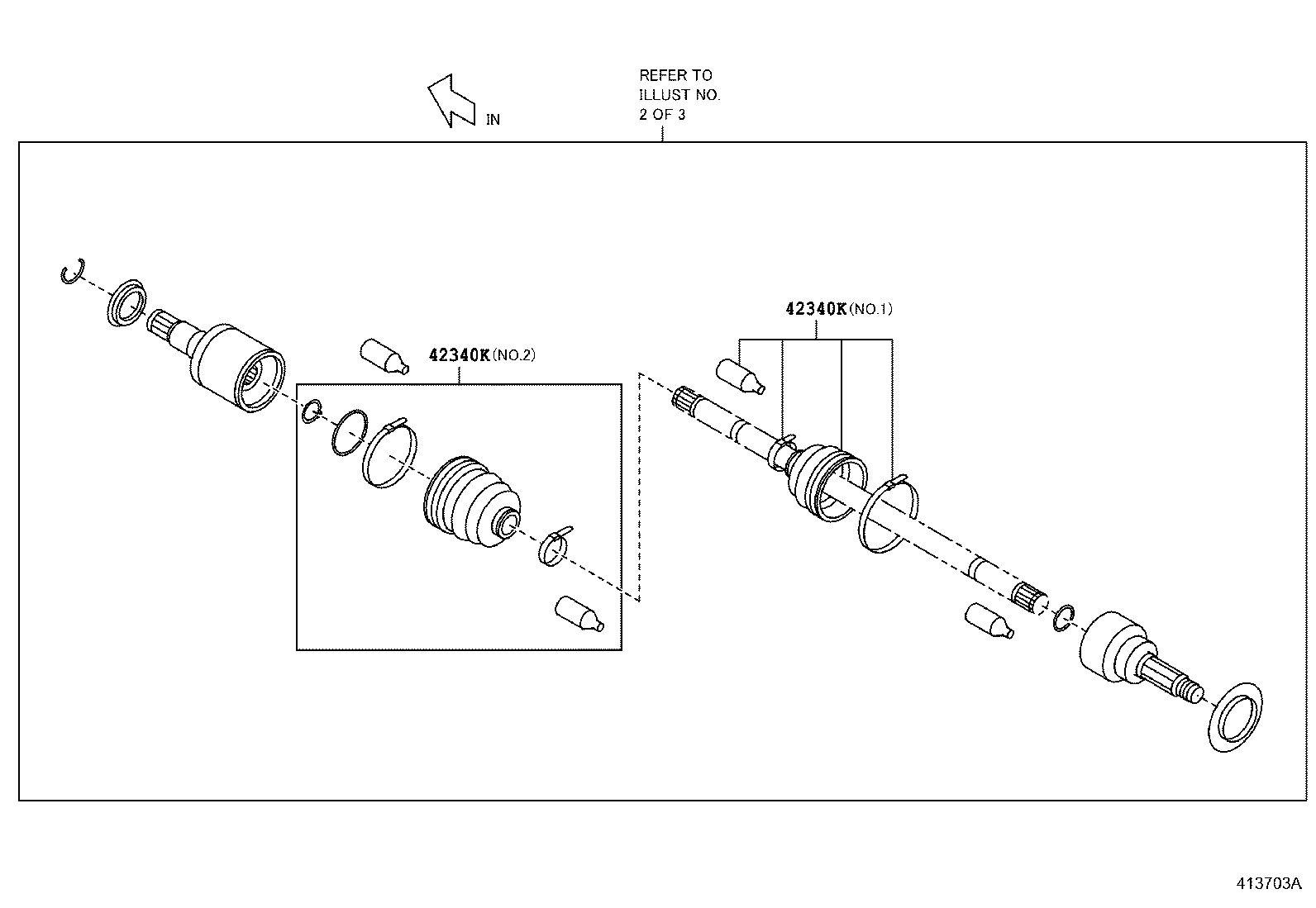

Figure 413721C 413721C 2012-04 → — Figure 413720D 413720D 2012-04 → — Figure 413703A 413703A 2012-04 → —

Part groups

PNCDescription
42311N Nut(FOR REAR AXLE SHAFT RH)
42311U Bolt, Hub(FOR REAR AXLE RH)
42312B Nut(FOR REAR AXLE SHAFT LH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42330 Shaft Assy, Rear Drive, RH
42340B Shaft Assy, Rear Drive, LH
42340K Boot Kit, Rear Drive Shaft Joint
42341A Ring, Snap (FOR REAR DRIVE SHAFT)
42341B Ring, Snap (FOR REAR DRIVE SHAFT RH)
42341C Ring, Snap (FOR REAR DRIVE SHAFT LH)
42342 Boot, Rear Drive Shaft Joint
42346C Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346D Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42346E Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346F Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42347C Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347D Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42347E Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347F Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42350A Ring, Hole Snap
42350D Joint Assy, Rear Drive Shaft Outboard, RH
42350E Joint Assy, Rear Drive Shaft Outboard, LH
42360C Joint Assy, Rear Drive Shaft Inboard, RH
42360D Joint Assy, Rear Drive Shaft Inboard, LH
42360L Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
42360M Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
42431 Disc, Rear
42450A Hub & Bearing Assy, Rear Axle, RH
42450B Hub & Bearing Assy, Rear Axle, LH
42451A Deflector, Rear Wheel Bearing Dust, NO.1 RH
42451B Deflector, Rear Wheel Bearing Dust, NO.1 LH
42491 Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
43458A Cover, Rear Drive Shaft Dust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
