Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · General

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

18 part groups · 2 illustrations

Illustrations

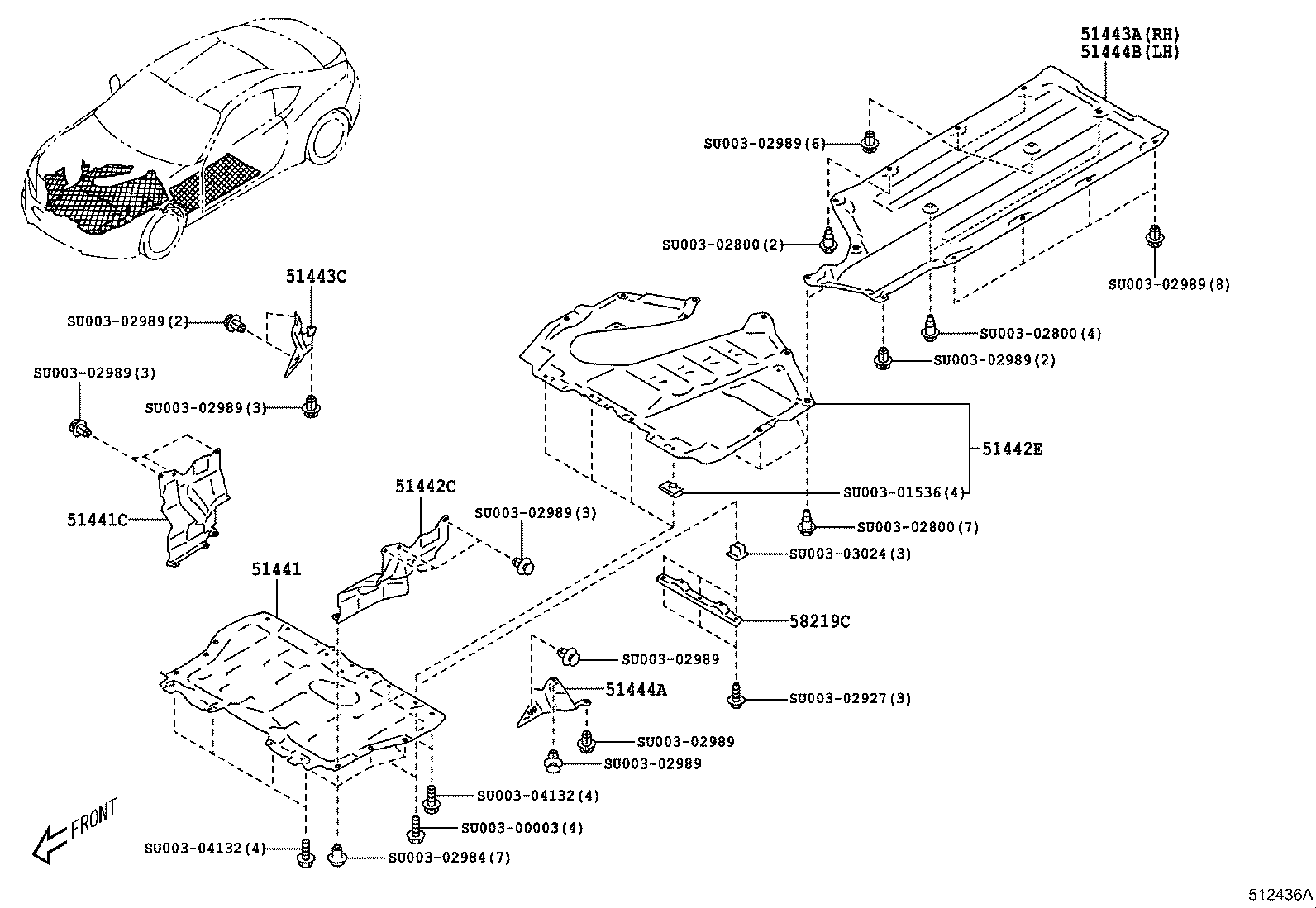

Figure 512443F 512443F 2012-04 → — Figure 512436A 512436A 2012-04 → —

Part groups

PNCDescription
51206A Member Sub-assy, Rear Suspension
51441 Cover, Engine Under, NO.1
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51442E Cover, Engine Under, NO.2
51443A Cover, Engine Under, Rear
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51444B Cover, Engine Under, Rear LH
52205H Cushion Sub-assy, Body Mounting, Rear RH
52206C Cushion Sub-assy, Body Mounting, Rear LH
52273A Stopper, Rear Suspension Member, Lower RH
52274A Stopper, Rear Suspension Member, Lower LH
52277B Stopper, Rear Suspension Member, Rear Upper
52278C Stopper, Rear Suspension Member, Rear Lower
52285 Bolt, Differential Support Member Mounting, NO.1
57104E Member Sub-assy, Front Cross
58219C Plate, Center Floor Rear End
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
