Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · General

Supported model Data version 2017-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

22 part groups · 4 illustrations

Illustrations

Figure 584751A

584751A 2012-04 → —

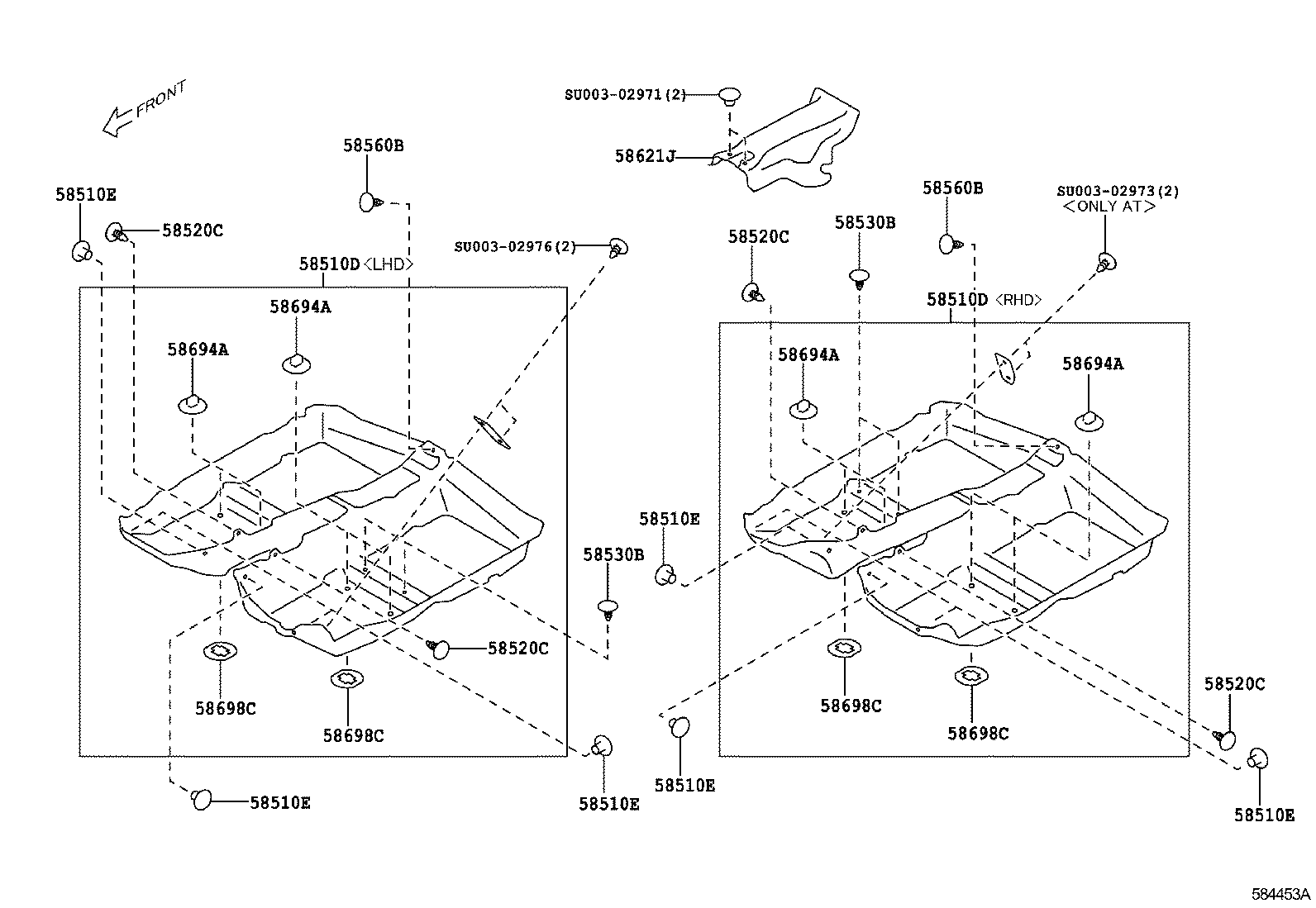

Figure 584453A

584453A 2012-04 → —

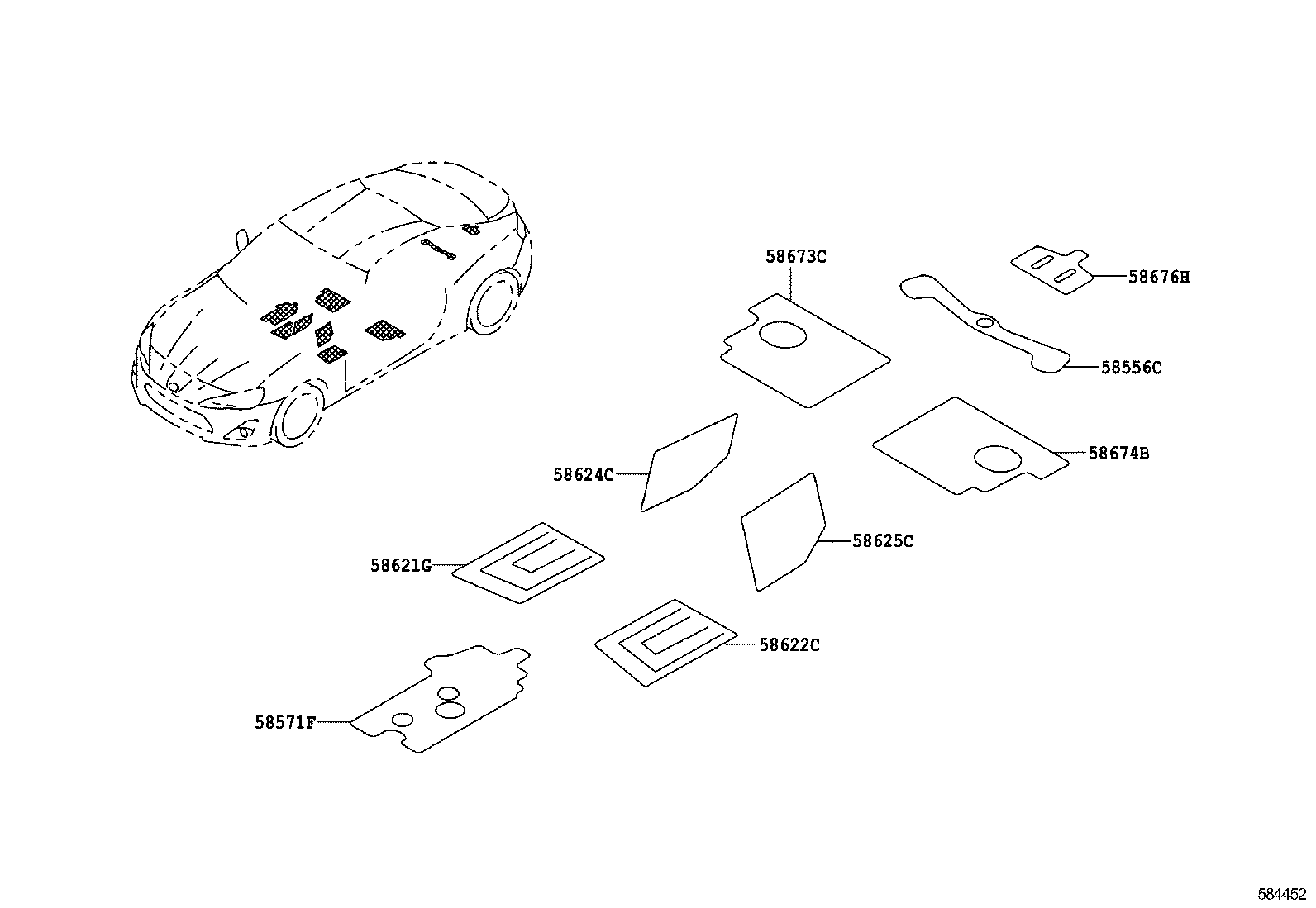

584452 2012-04 → —

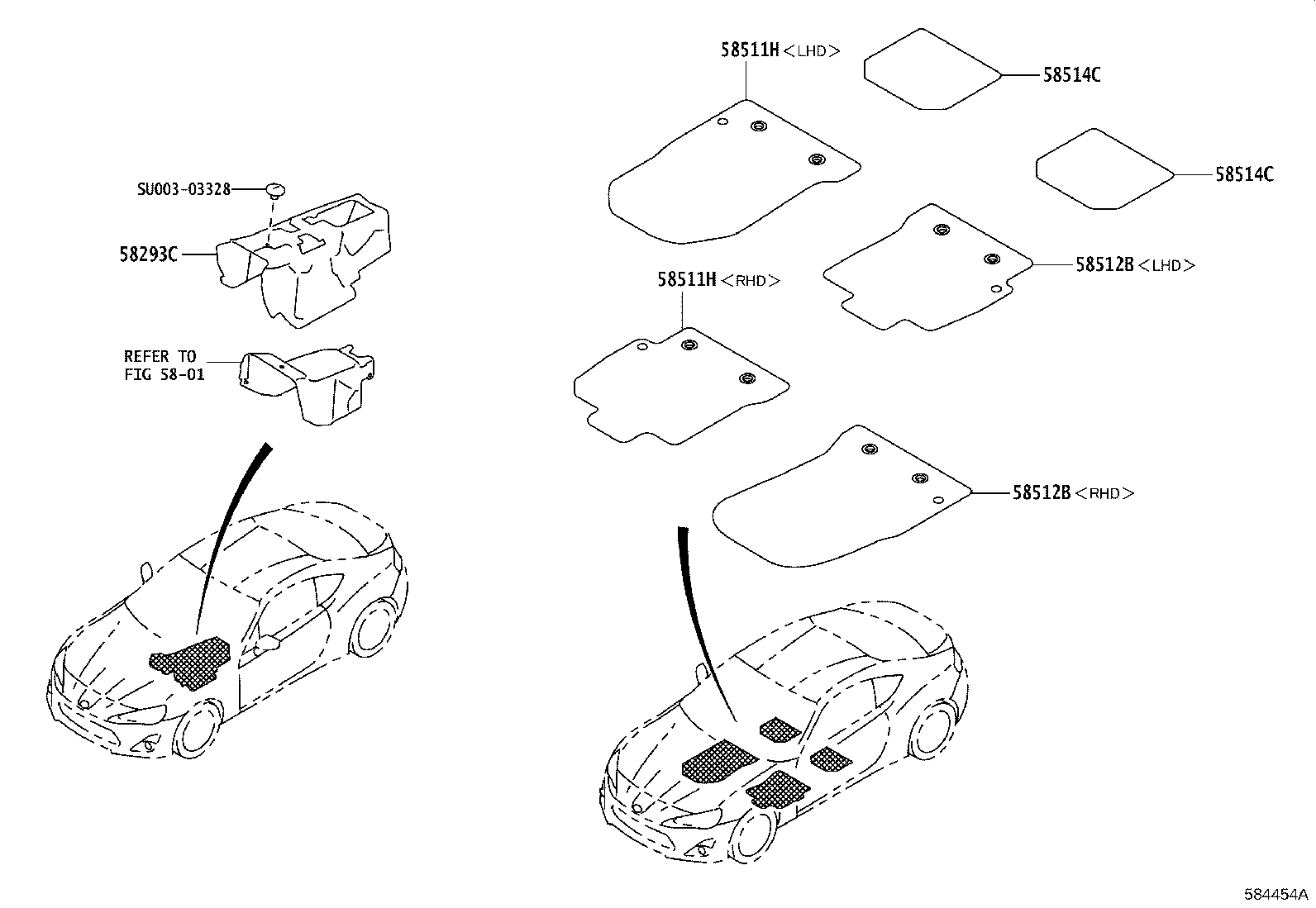

Figure 584454A

584454A 2012-04 → —

Part groups

PNC	Description
58190B	Rest Assy, Front Floor Foot
58293C	Pad, Front Floor
58510D	Carpet Assy, Floor, Front
58510E	Retainer, Floor Carpet
58511H	Mat, Floor, Front RH
58512B	Mat, Floor, Front LH
58514C	Mat, Froor, Rear
58520C	Clip(FOR FRONT FLOOR CARPET)
58530B	Clip(FOR FRONT FLOOR CARPET)
58556C	Silencer, Rear Floor
58560B	Clip(FOR FLOOR CARPET, REAR)
58571F	Pad, Front Floor, Front
58621G	Pad, Front Floor Silencer, RH
58621J	Silencer, Center Console, NO.1
58622C	Pad, Front Floor Silencer, LH
58624C	Pad, Center Floor Silencer, RH
58625C	Pad, Center Floor Silencer, LH
58673C	Pad, Rear Floor Silencer, NO.1
58674B	Pad, Rear Floor Silencer, NO.2
58676H	Pad, Rear Floor Silencer
58694A	Plate, Mat Set, Upper
58698C	Plate, Mat Set, Lower

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
