Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · General

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

16 part groups · 3 illustrations

Illustrations

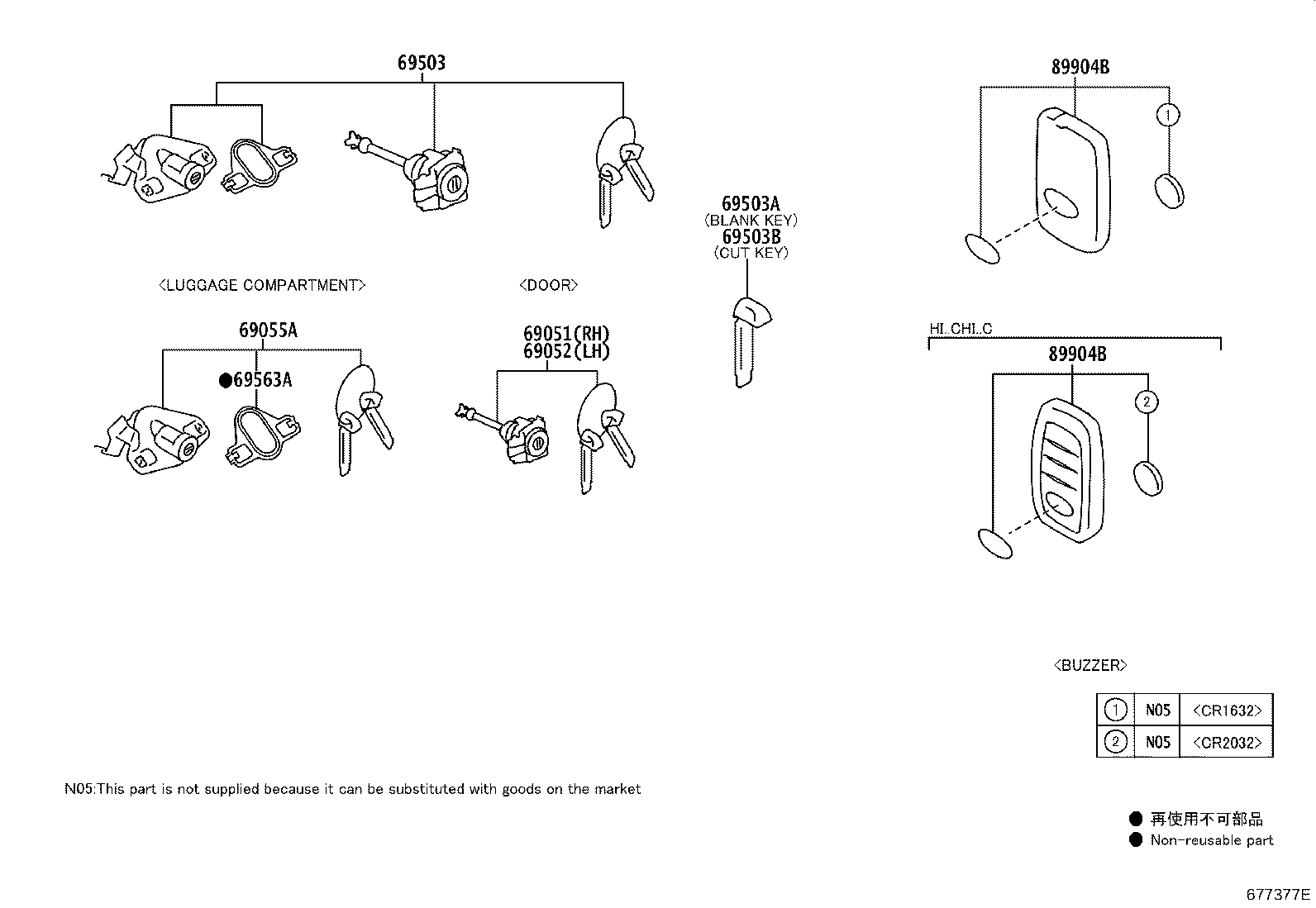

Figure 677375D 677375D 2012-04 → — Figure 677375D 677375D 2013-07 → 2015-05 Figure 677377E 677377E 2012-04 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
69563A Pad, Luggage Compartment Door Lock Cylinder
88027 Label, Key Less
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
8907A Switch Set, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89785B Transmitter, Transponder Key Master
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
