Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · General

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

10 part groups · 2 illustrations

Illustrations

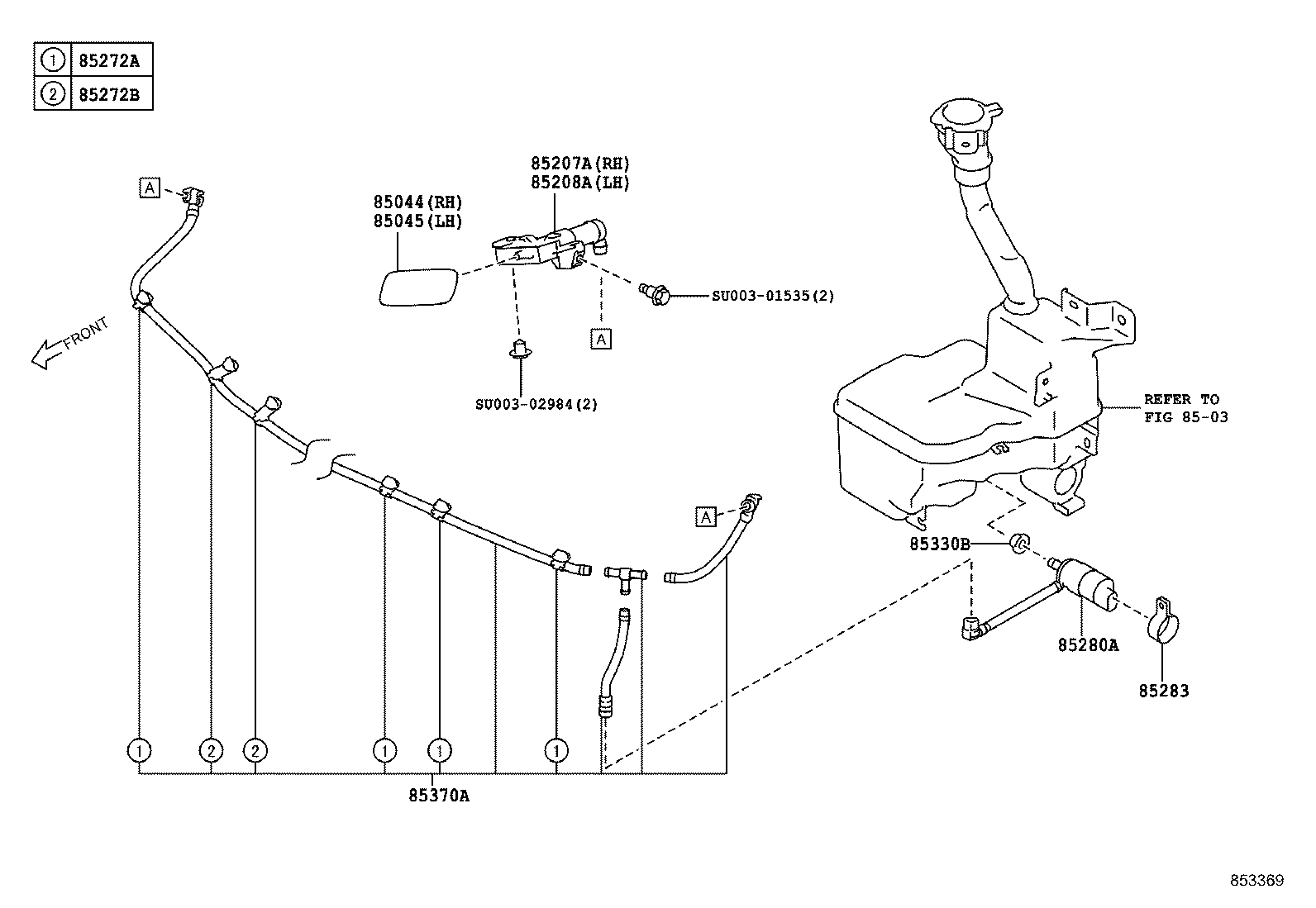

Figure 852850A 852850A 2012-04 → 2015-03 Figure 853369 853369 2015-04 → —

Part groups

PNCDescription
85044 Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH
85045 Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85272A Clamp, Headlamp Cleaner, NO.1
85272B Clamp, Headlamp Cleaner, NO.2
85280A Motor And Pump Assy, Headlamp Cleaner
85283 Bracket, Headlamp Cleaner Washer
85330B Bush, Headlamp Cleaner Washer Jar
85370A Hose Assy, Headlamp Cleaner Washer, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
