Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · General

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

7 part groups · 3 illustrations

Illustrations

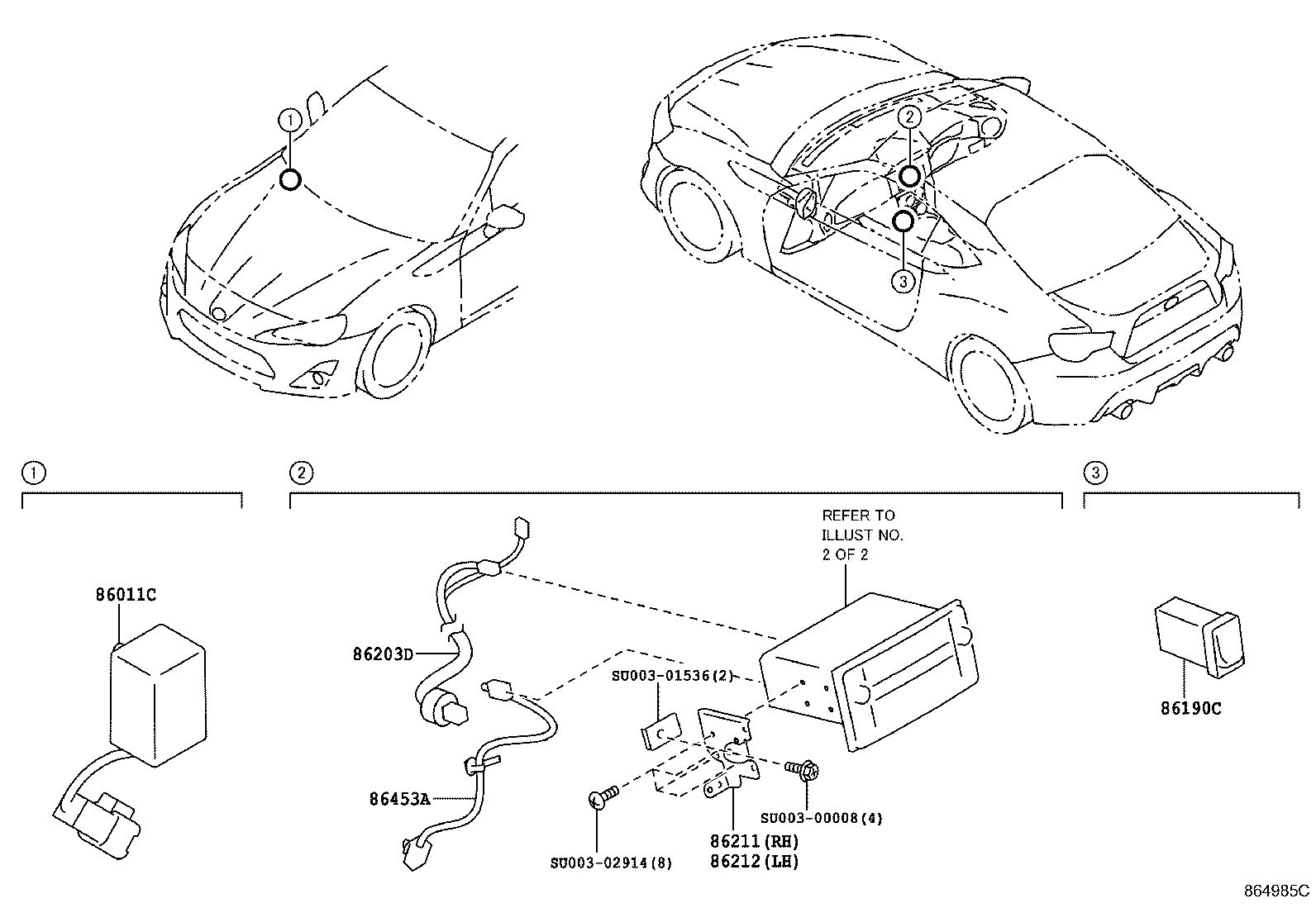

Figure 866722 866722 2012-04 → — Figure 864985C 864985C 2012-04 → — Figure 864952 864952 2012-04 → —

Part groups

PNCDescription
86011C Filter, Noise
86120 Receiver Assy, Radio
86190C Adapter Assy, Stereo Jack, NO.1
86203D Wire, Stereo Component, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86453A Wire, Multi-media Module
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
