Toyota 86
2016-08 → present · chassis ZN6 · catalogue 264220 · General
Supported model
Data version 2019-04
Fuel Injection System
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

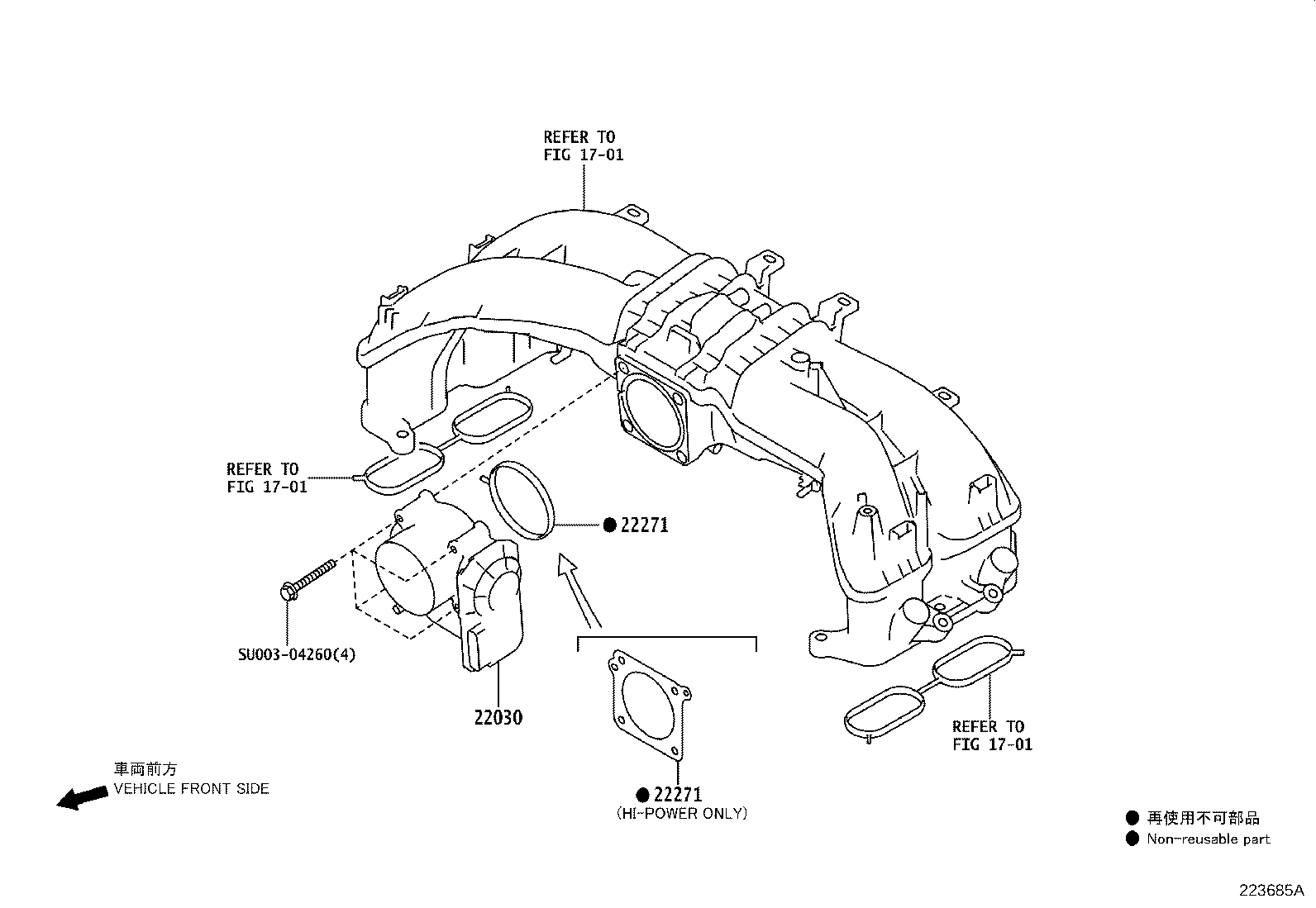

| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 22271 | Gasket, Throttle Body |

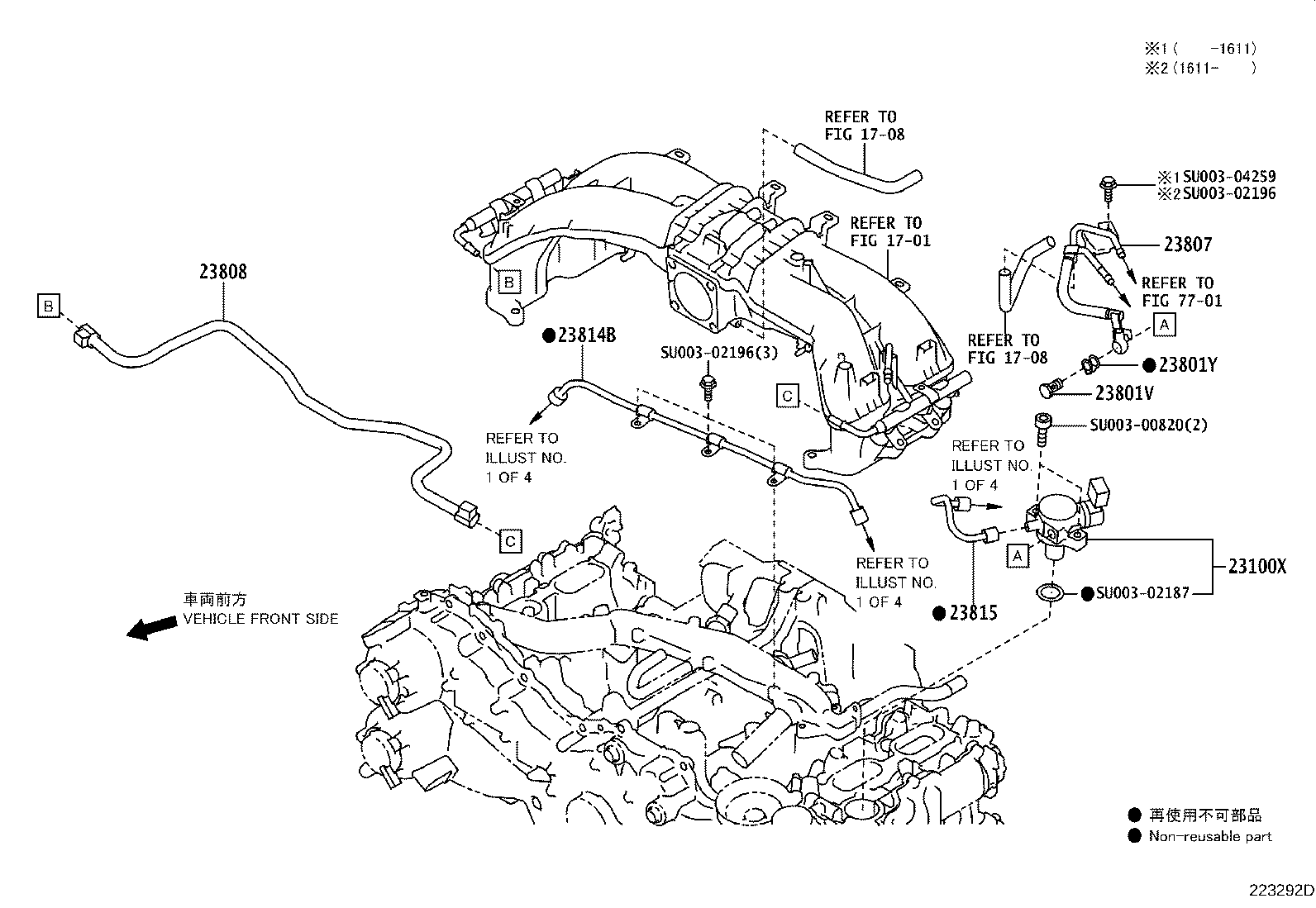

| 23100X | Pump Assy, Fuel (ENGINE ROOM SIDE) |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23255A | Seal, Fuel Injector |
| 23256 | Ring, Fuel Injector Back-up, NO.1 |
| 23257 | Ring, Fuel Injector Back-up, NO.2 |
| 23258 | Ring, Fuel Injector Back-up, NO.3 |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270D | Gasket(FOR PULSATION DAMPER) |
| 23295 | Holder, Injector, NO.1 |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23801V | Bolt, Union |
| 23801Y | Gasket |
| 23802B | Pipe Sub-assy, Fuel, NO.2 |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23808 | Pipe Sub-assy, Fuel Delivery, NO.2 |
| 23814B | Pipe, Fuel Delivery |
| 23814E | Pipe, Fuel Delivery, RH |
| 23815 | Pipe, Fuel Delivery, NO.2 |
| 23815E | Pipe, Fuel Delivery, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
