Toyota 86

2016-08 → present · chassis ZN6 · catalogue 264220 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Torque Converter, Front Oil Pump & Chain (ATM)

10 part groups · 2 illustrations

Illustrations

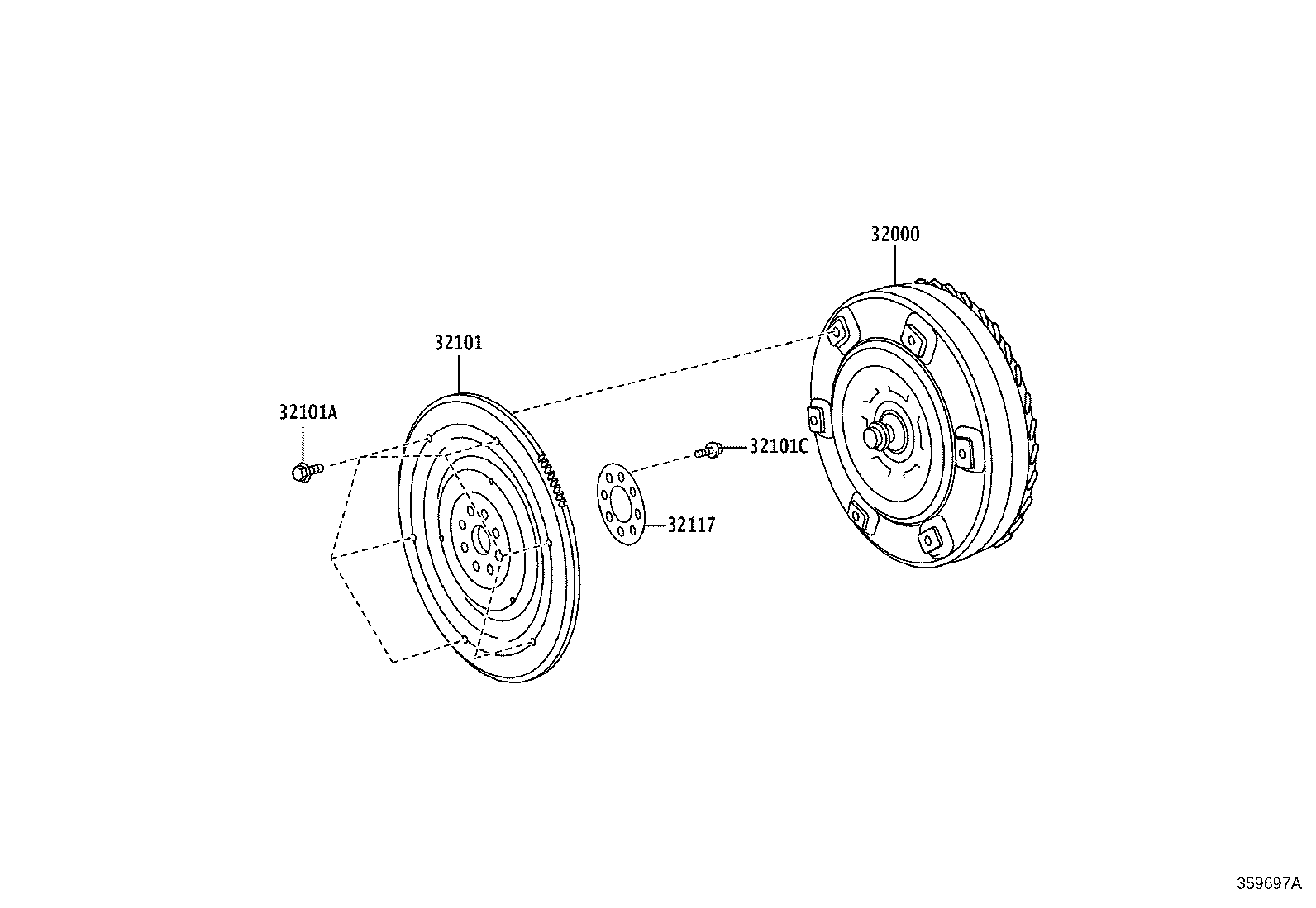

Figure 359696B 359696B 2016-08 → — Figure 359697A 359697A 2016-08 → —

Part groups

PNCDescription
32000 Converter Assy, Torque
32101 Gear Sub-assy, Drive Plate & Ring
32101A Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101C Bolt, Hexagon(FOR DRIVE PLATE SETTING)
32117 Spacer, Drive Plate, Rear
35301 Body Sub-assy, Front Oil Pump
35301A Seal, Oil (FOR FRONT OIL PUMP)
35301B Ring, O (FOR FRONT OIL PUMP BODY)
35301F Bolt (FOR FRONT OIL PUMP SETTING)
35617 Ring, Clutch Drum Oil Seal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
