Transmission Case & Oil Pan (ATM)

22 part groups · 3 illustrations

Illustrations

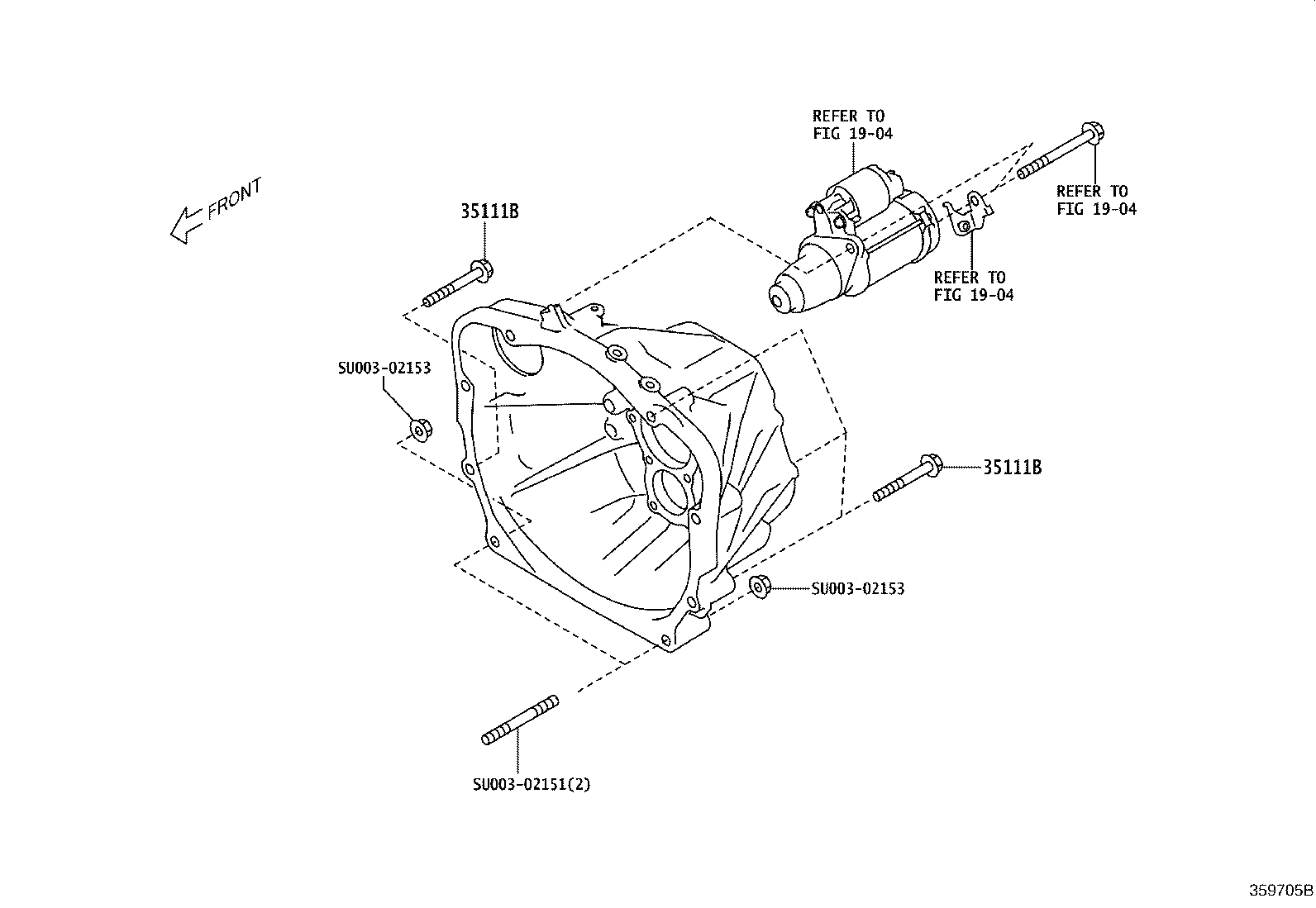

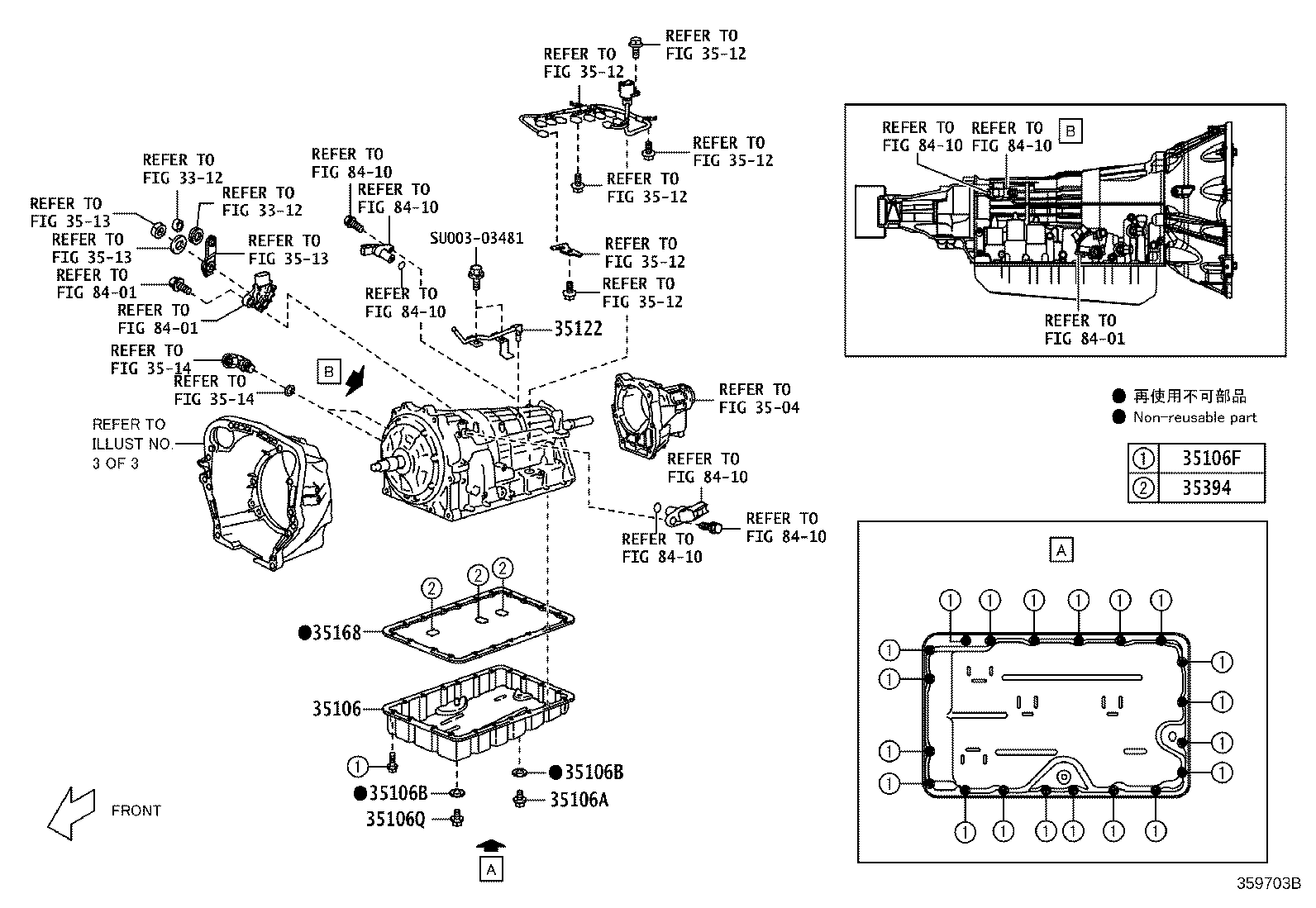

Figure 359707C 359707C 2016-08 → — Figure 359703B 359703B 2016-08 → — Figure 359705B 359705B 2016-08 → —

Part groups

PNCDescription
35015S Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
35015T Ring, O(FOR TRANSMISSION CASE ADAPTER)
35104 Case Sub-assy, Automatic Transmission
35104M Plug, Refill(ATM)
35104N Ring, O (FOR REFILL PLUG)
35104Q Plug, NO.1 (FOR TRANSAXLE CASE)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35106Q Plug (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111 Housing, Automatic Transmission
35111B Bolt (FOR TRANSMISSION HOUSING & ENGINE SETTING)
35111K Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35122 Tube, Breather (FOR AUTOMATIC TRANSAXLE)
35141B Plug (FOR AUTOMATIC TRANSMISSION CASE)
35141G Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35145C Gasket, Transaxle Case
35159 Gasket, Brake Drum
35168 Gasket, Automatic Transmission Oil Pan
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
