Planetary Gear, Reverse Piston & Counter Gear(ATM)

28 part groups · 3 illustrations

Illustrations

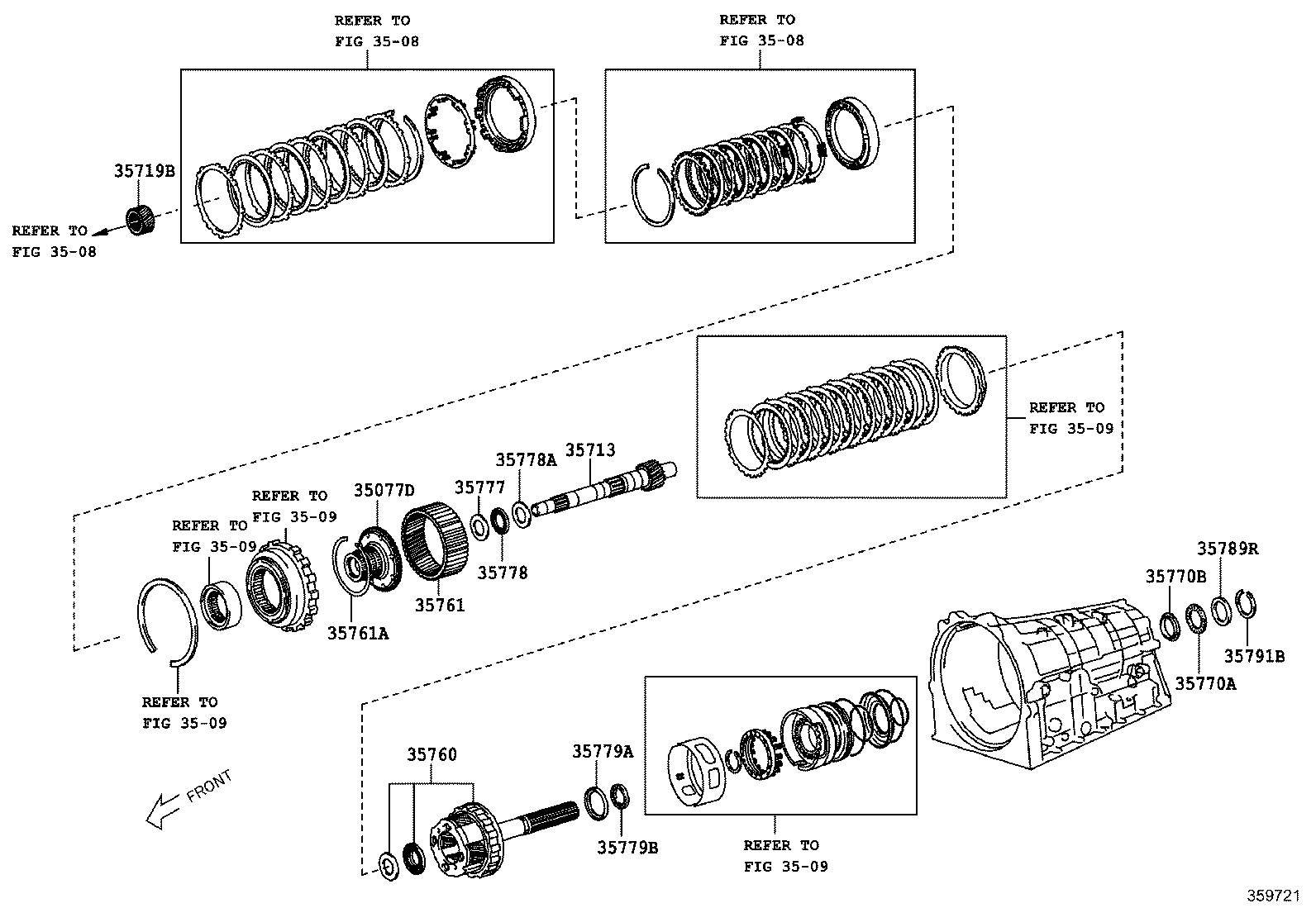

Figure 359719A 359719A 2016-08 → — Figure 359720A 359720A 2016-08 → — Figure 359721 359721 2016-08 → —

Part groups

PNCDescription
35076C Flange Sub-assy, Front Planetary Ring Gear
35076D Bearing, Thrust Needle Roller(FOR FRONT PLANETARY FLANGE)
35076F Ring, Hole Snap (FOR FRONT PLANETARY RING GEAR FLANGE)
35077D Flange Sub-assy, RR Planetary Ring Gear
35713 Shaft, Intermediate
35719B Gear, Planetary Sun
35720 Gear Assy, Front Planetary
35737A Washer, Planetary Carrier Thrust, NO.1
35738 Washer, Planetary Carrier Thrust, NO.2
35743 Gear, Front Planetary Ring
35750 Gear Assy, Center Planetary
35760 Gear Assy, Rear Planetary
35761 Gear, Rear Planetary Ring
35761A Ring, Hole Snap (FOR REAR PLANETARY RING GEAR)
35763 Gear, Center Planetary Ring
35763A Ring, Snap(FOR CENTER PLANETARY RING GEAR)
35770A Bearing, Thrust (FOR OUTPUT SHAFT)
35770B Race, Thrust Bearing (FOR OUTPUT SHAFT)
35777 Race, Thrust Bearing, NO.7
35778 Race, Thrust Bearing, NO.8
35778A Bearing, Thrust Needle Roller
35779A Race, Thrust Bearing, NO.9
35779B Bearing, Thrust Needle Roller
35785B Race, Thrust Bearing, NO.4
35785C Bearing, Thrust Needle Roller
35789B Race, Thrust Bearing (FOR FRONT PLANETARY FLANGE REAR)
35789R Race, Thrust Bearing (FOR REAR OUTPUT SHAFT)
35791B Ring, Hole Snap(FOR 1 WAY CLUTCH)
