Toyota 86
2016-08 → present · chassis ZN6 · catalogue 264220 · General
Supported model
Data version 2019-04

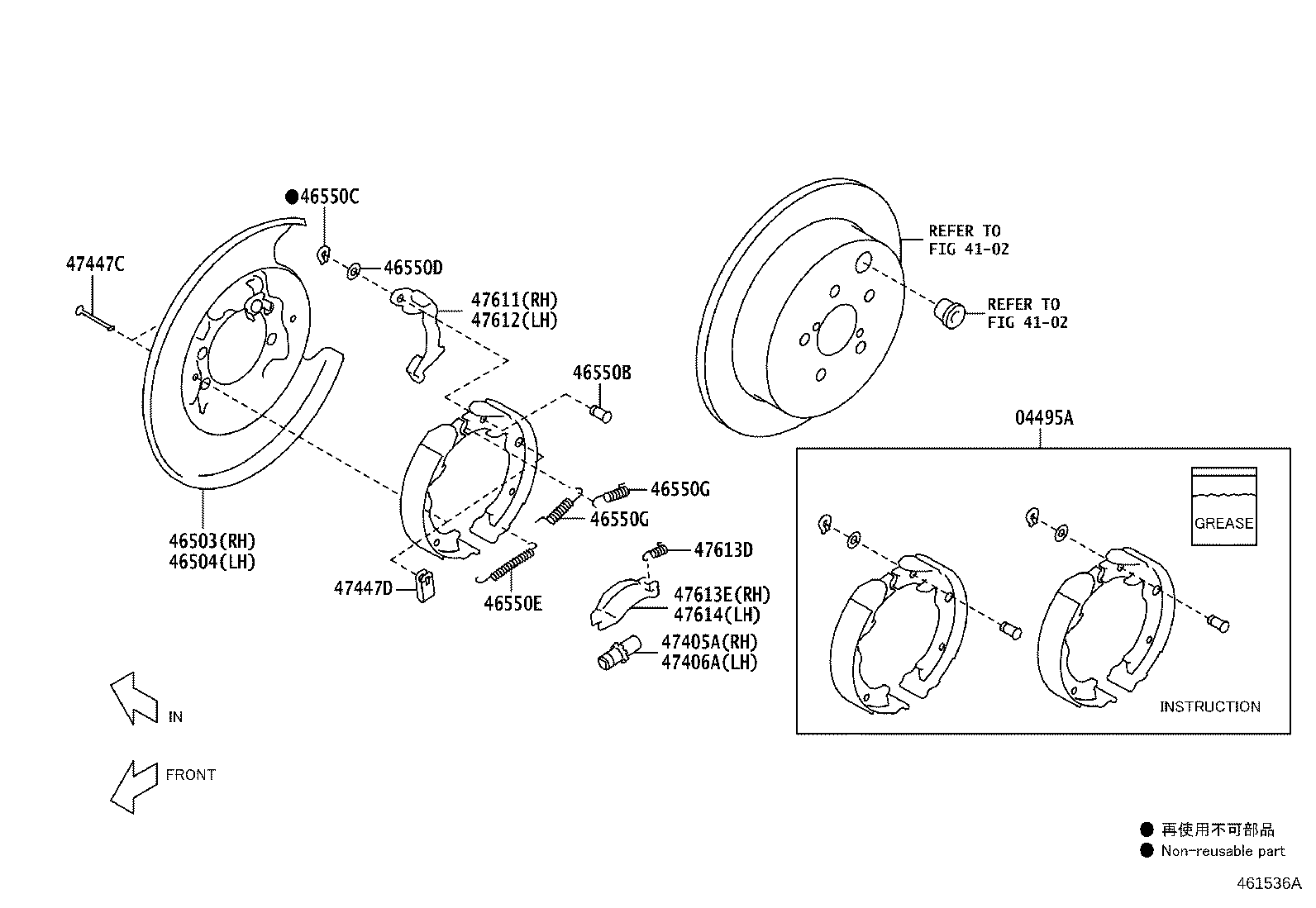

Parking Brake & Cable
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04495A | Shoe Kit, Parking Brake |
| 46210 | Lever Assy, Parking Brake |
| 46401 | Bracket Sub-assy, Cable Support |
| 46410C | Clamp(FOR PARKING BRAKE FRONT CABLE) |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420A | Clamp, NO.1(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46451B | Bracket, Parking Brake Cable Support |
| 46451C | Bracket, Parking Brake Cable Support, NO.1 |
| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46504 | Plate Sub-assy, Parking Brake, LH |
| 46524 | Cover, Parking Brake Dust |
| 46550B | Pin(FOR PARKING BRAKE SHOE) |
| 46550C | Washer, Type C(FOR PARKING BRAKE SHOE) |
| 46550D | Washer, Wave(FOR PARKING BRAKE SHOE) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46550G | Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN) |
| 47405A | Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) |
| 47406A | Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) |
| 47447C | Pin, Shoe Hold Down Spring(FOR PARKING BRAKE) |
| 47447D | Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN) |
| 47611 | Lever, Parking Brake Shoe, RH |
| 47612 | Lever, Parking Brake Shoe, LH |
| 47613D | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 47613E | Strut, Parking Brake Shoe, RH |
| 47614 | Strut, Parking Brake Shoe, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
