Toyota 86
2016-08 → present · chassis ZN6 · catalogue 264220 · General
Supported model
Data version 2019-04

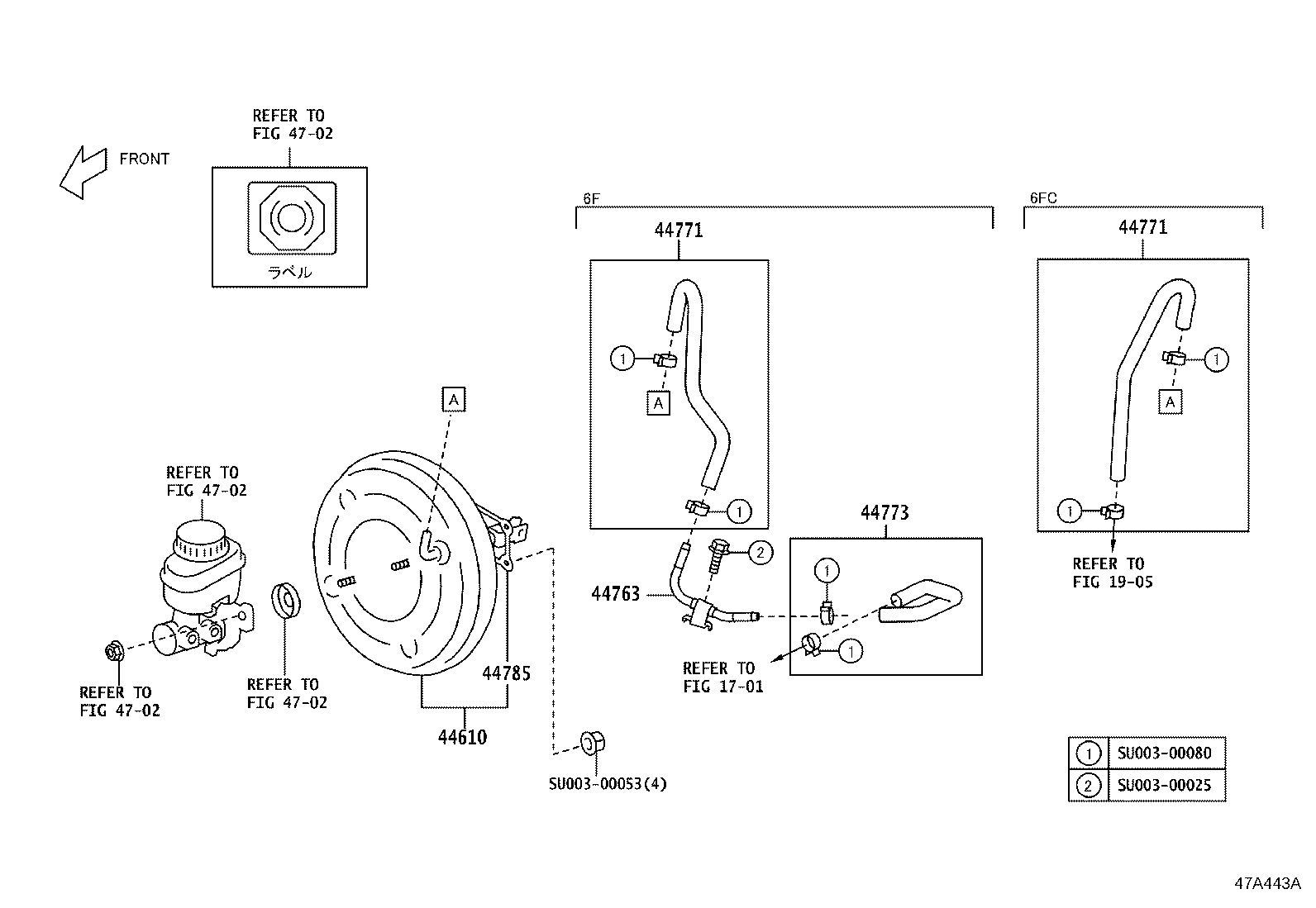

Brake Booster & Vacuum Tube
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44763 | Tube, Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44773 | Hose, Vacuum, NO.2 |
| 44785 | Gasket, Brake Booster |
| 47288C | Label, Fluid Mark |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
