Rear Disc Brake Caliper & Dust Cover

18 part groups · 4 illustrations

Illustrations

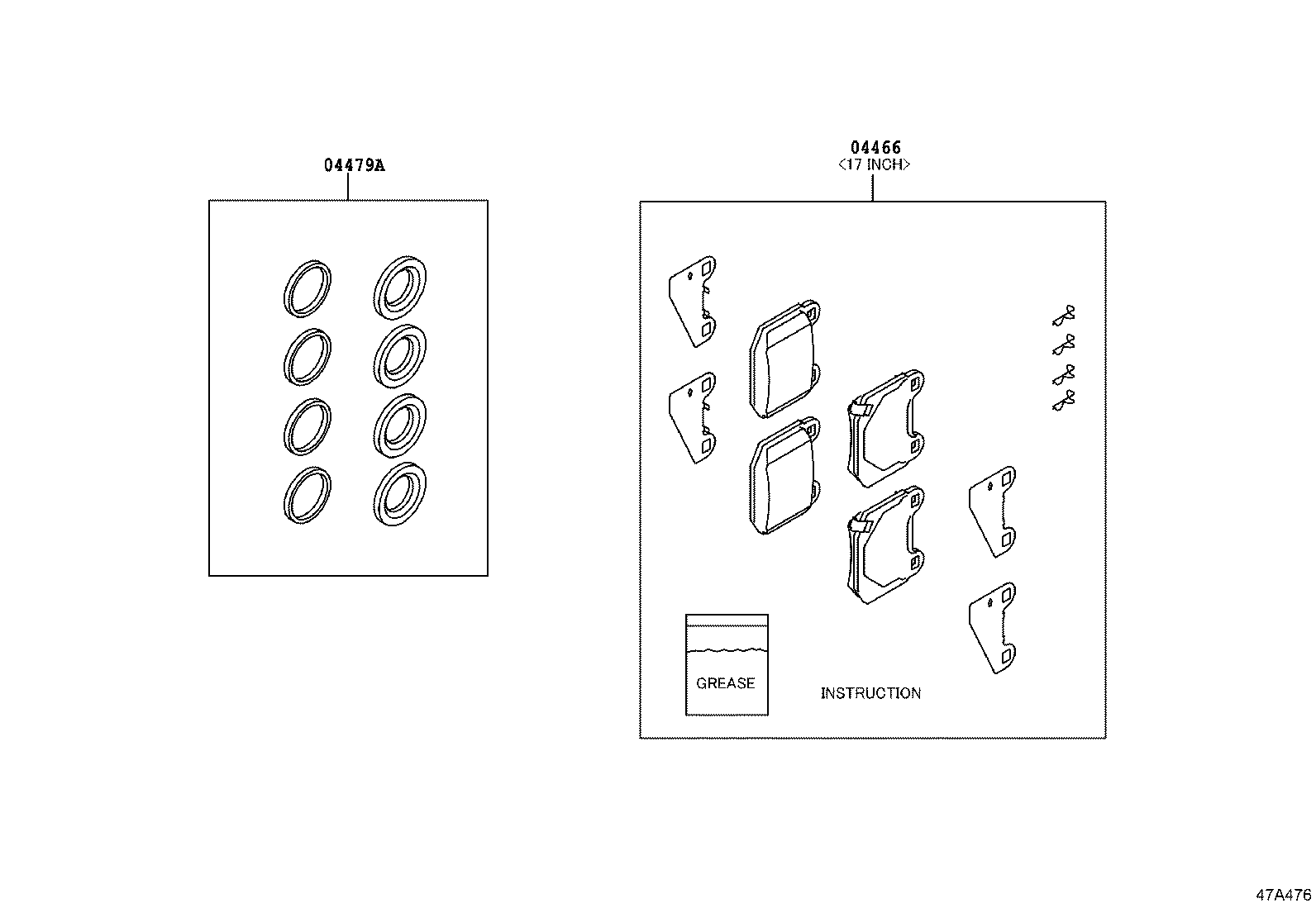

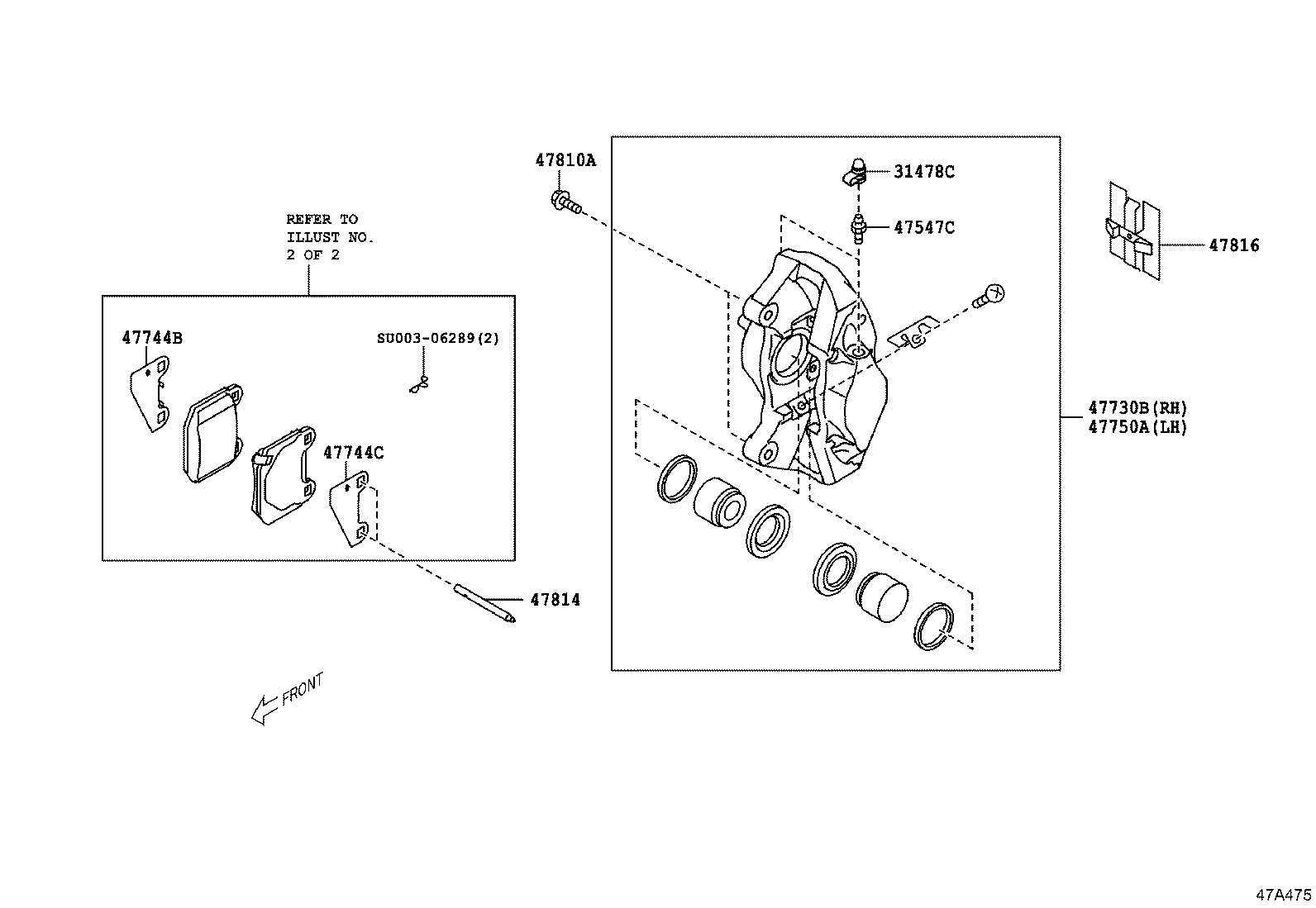

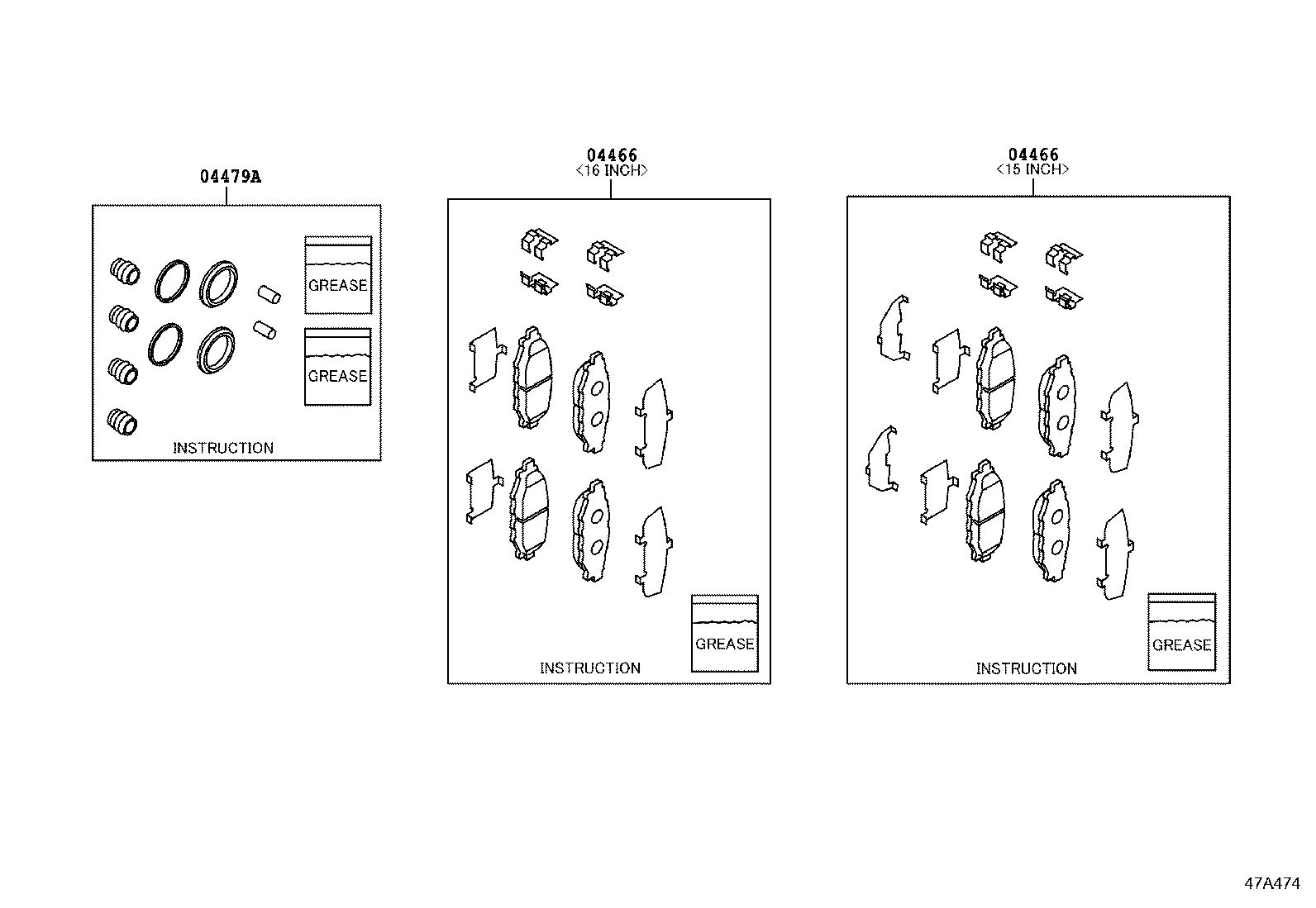

Figure 47A473A 47A473A 2016-08 → — Figure 47A474 47A474 2016-08 → — Figure 47A475 47A475 2016-08 → — Figure 47A476 47A476 2016-08 → —

Part groups

PNCDescription
04466 Pad Kit, Disc Brake, Rear
04479A Cylinder Kit, Disc Brake, Rear
31478C Cap, Bleeder Plug(FOR REAR DISC BRAKE)
47547C Plug, Bleeder(FOR REAR DISC BRAKE)
47721C Mounting, Rear Disc Brake Cylinder, RH
47721D Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
47722A Mounting, Rear Disc Brake Cylinder, LH
47730B Cylinder Assy, Rear Disc Brake, RH
47731B Piston, Rear Disc Brake
47744B Shim, Anti-squeal(FOR REAR DISC BRAKE)
47744C Shim, Anti-squeal, NO.1(FOR REAR DISC BRAKE)
47745B Shim, Anti-squeal, NO.2(FOR REAR DISC BRAKE)
47750A Cylinder Assy, Disc Brake, Rear LH
47769A Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47810A Bolt, Hexagon(FOR REAR CALIPER)
47814 Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47815 Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
47816 Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
