Toyota 86

2016-08 → present · chassis ZN6 · catalogue 264220 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

30 part groups · 2 illustrations

Illustrations

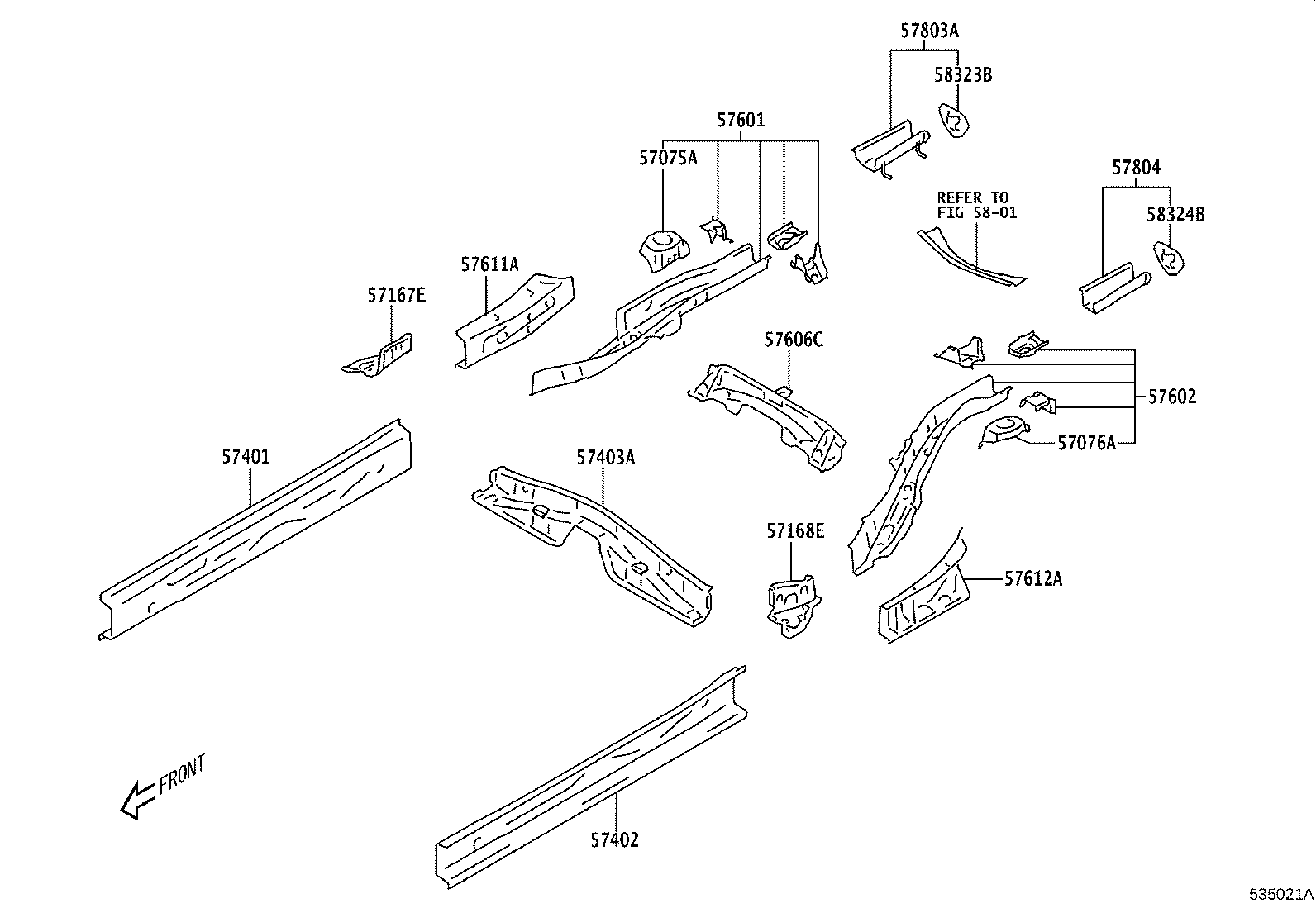

Figure 535019A 535019A 2016-08 → — Figure 535021A 535021A 2016-08 → —

Part groups

PNCDescription
57027B Member Sub-assy, Front Side, Inner RH
57028B Member Sub-assy, Front Side, Inner LH
57075A Bracket Sub-assy, Rear Suspension Arm, RH
57076A Bracket Sub-assy, Rear Suspension Arm, LH
57101 Member Sub-assy, Front Side, RH
57101E Member Sub-assy, Front Side, Inner RH
57102 Member Sub-assy, Front Side, LH
57102C Member Sub-assy, Front Side, Inner LH
57115A Plate, Front Side Member, Outer RH
57116A Plate, Front Side Member, Outer LH
57151A Reinforcement, Front Side Member, NO.1 RH
57152 Reinforcement, Front Side Member, NO.1 LH
57167E Gusset, Front Crossmember Side, RH
57168E Gusset, Front Crossmember Side, LH
57197 Box, Torque, Front RH
57198 Box, Torque, Front LH
57401 Member Sub-assy, Main Floor Side, RH
57402 Member Sub-assy, Main Floor Side, LH
57403A Member Sub-assy, Center Floor Cross, NO.3
57455D Gusset, Front Floor Crossmember, RH
57456C Gusset, Front Floor Crossmember, LH
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57606C Member Sub-assy, Rear Floor Cross, NO.2
57611A Member, Rear Floor Side, RH
57612A Member, Rear Floor Side, LH
57803A Reinforcement Sub-assy, Rear Floor Side Member, Rear RH
57804 Reinforcement Sub-assy, Rear Floor Side Member, Rear LH
58323B Reinforce, Rear Bumper Arm Support, RH
58324B Reinforce, Rear Bumper Arm Support, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
