Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · General

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

19 part groups · 6 illustrations

Illustrations

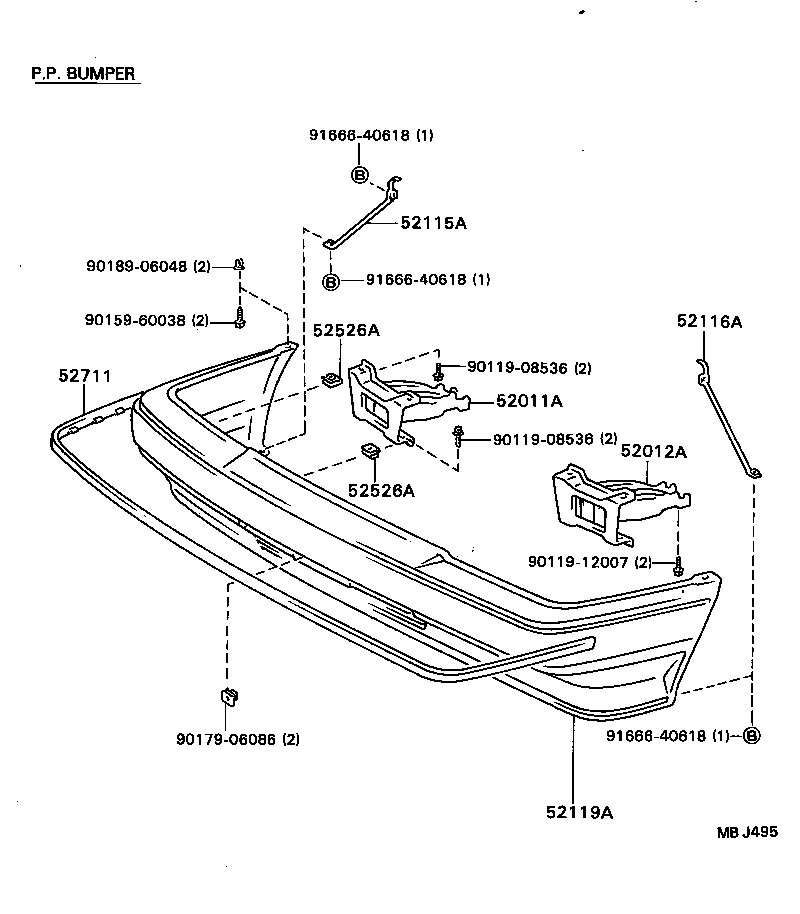

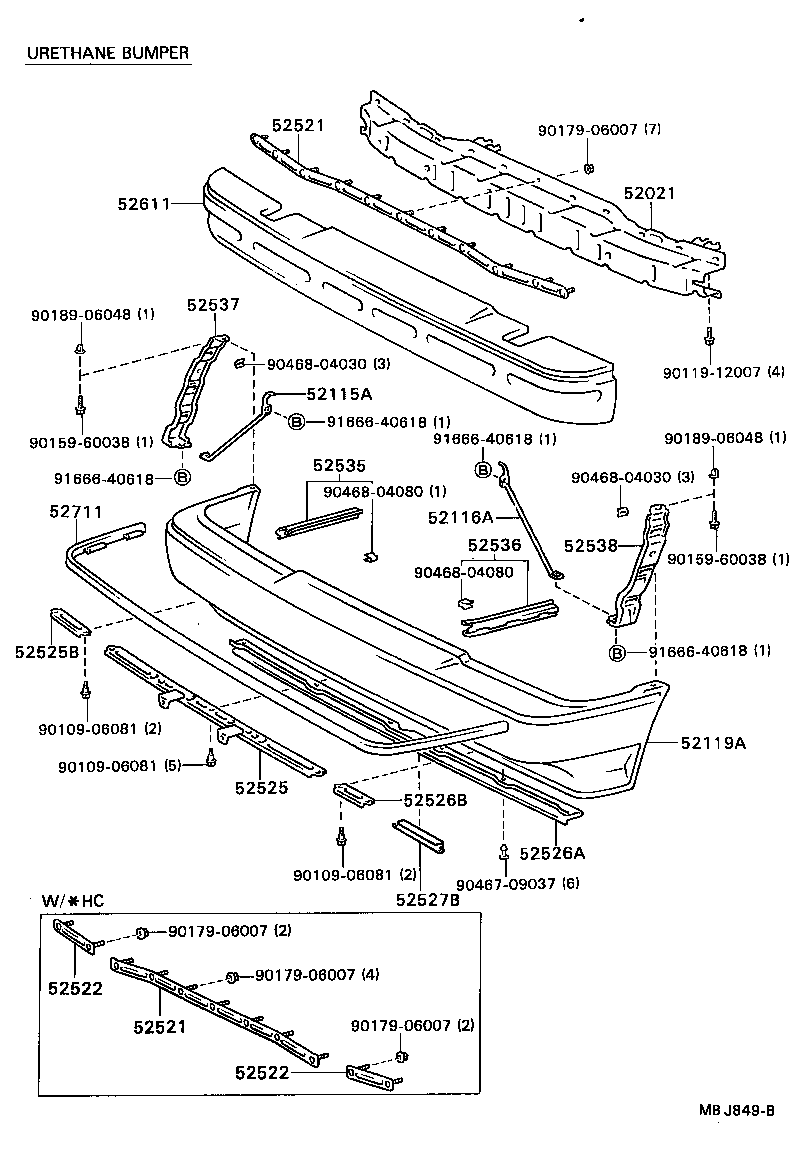

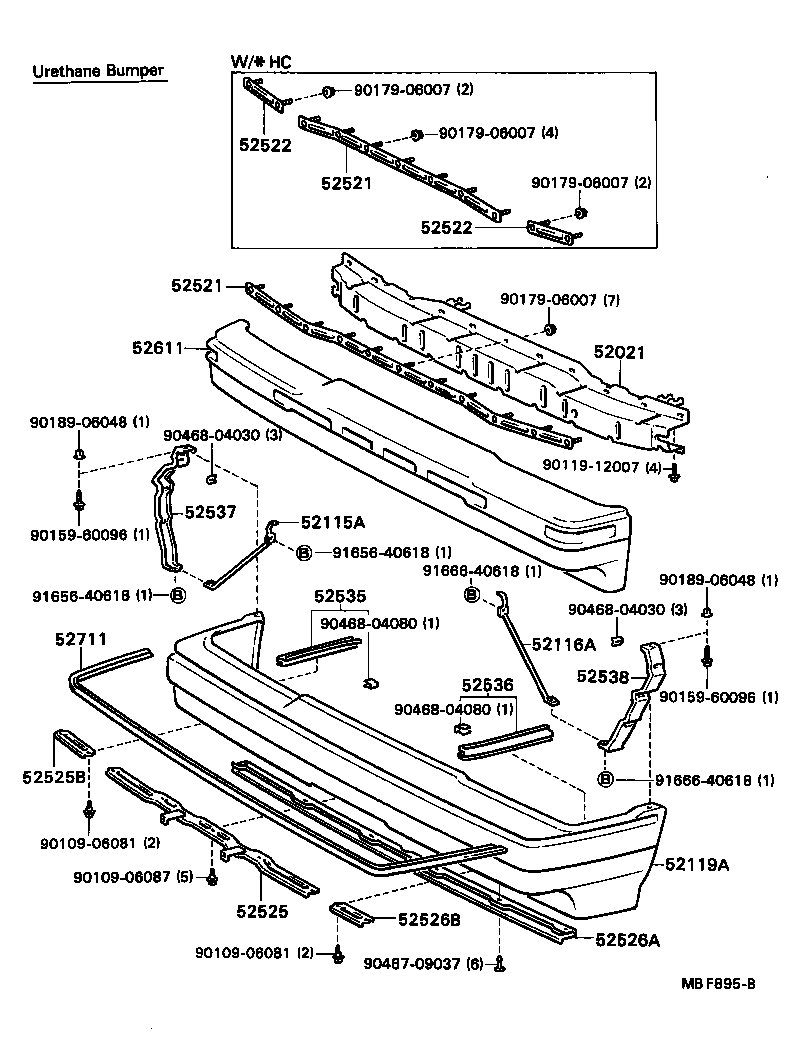

Figure MBF879B MBF879B 1983-10 → 1985-08 Figure MBF879B MBF879B 1985-08 → 1986-08 Figure MBJ495 MBJ495 1985-08 → — Figure MBF895B MBF895B 1983-10 → 1985-08 Figure MBF895B MBF895B 1985-08 → 1986-08 Figure MBJ849B MBJ849B 1985-08 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526A Retainer, Front Bumper, Lower NO.1
52526B Retainer, Front Bumper, Lower Side LH
52527B Retainer, Front Bumper, Lower NO.2
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537 Retainer, Front Bumper End, RH
52538 Retainer, Front Bumper End, LH
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
