Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · General

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

21 part groups · 5 illustrations

Illustrations

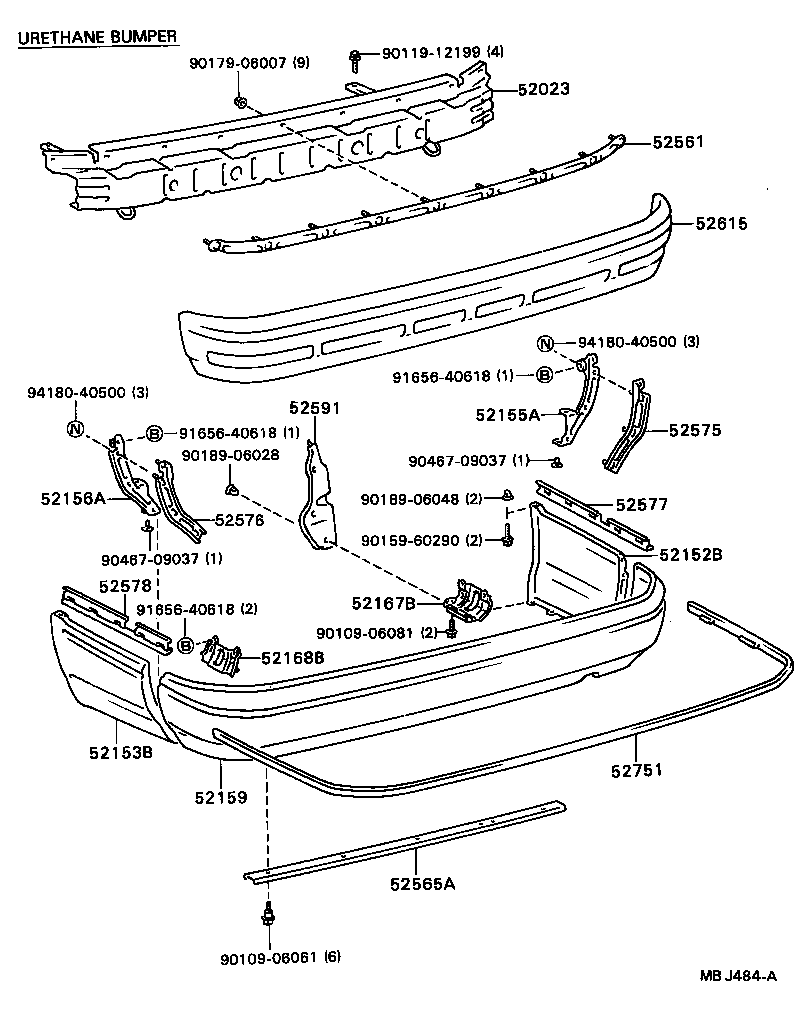

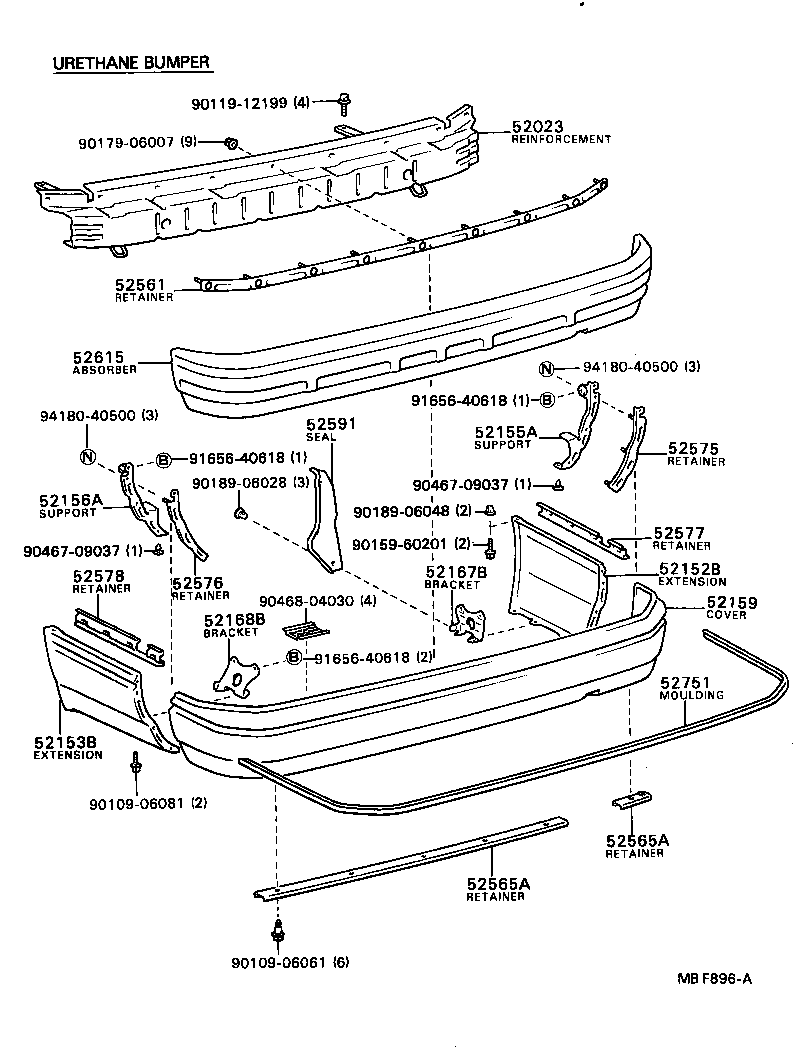

Figure MBF880C MBF880C 1983-10 → — Figure MBF880C MBF880C 1985-08 → 1986-08 Figure MBF896A MBF896A 1983-10 → 1985-08 Figure MBF896A MBF896A 1985-08 → 1986-08 Figure MBJ484A MBJ484A 1985-08 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52023 Reinforcement Sub-assy, Rear Bumper
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52167B Bracket, Rear Bumper Extension Mounting, RH
52168B Bracket, Rear Bumper Extension Mounting, LH
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52577 Retainer, Rear Bumper Side, NO.2 RH
52578 Retainer, Rear Bumper Side, NO.2 LH
52591 Seal, Rear Bumper Side, RH
52615 Absorber, Rear Bumper Energy
52751 Moulding, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
