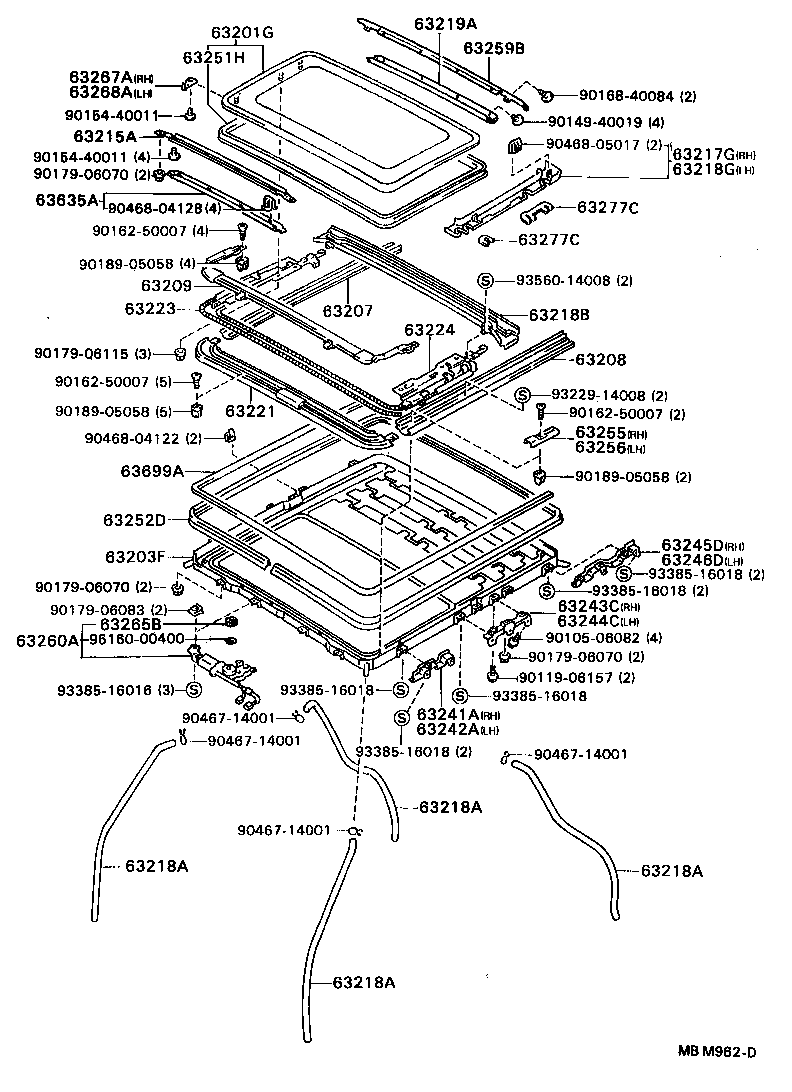

Exploded illustration MBM962D 63219A — GARNISH, SLIDING ROOF, REAR (3 parts) 63201G — GLASS SUB-ASSY, SLIDING ROOF (2 parts) 63259B — HOLDER, SLIDING ROOF WEATHERSTRIP (1 parts) 63251H — WEATHERSTRIP, SLIDING ROOF (1 parts) 63267A — PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH (1 parts) 63268A — PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH (1 parts) 9016840084 — not listed in this catalogue 9015440011 — not listed in this catalogue 9014940019 — not listed in this catalogue 63215A — MOULDING, ROOF WINDOW, UPPER (1 parts) 9046805017 — not listed in this catalogue 63217G — GARNISH, SLIDING ROOF SIDE, RH (2 parts) 9015440011 — not listed in this catalogue 63218G — GARNISH, SLIDING ROOF SIDE, LH (2 parts) 9017906070 — not listed in this catalogue 63635A — GARNISH, SLIDING ROOF, FRONT (3 parts) 63277C — SHIM, SLIDING ROOF PANEL (4 parts) 9046804128 — not listed in this catalogue 9016250007 — not listed in this catalogue 63277C — SHIM, SLIDING ROOF PANEL (4 parts) 9018905058 — not listed in this catalogue 9356014008 — not listed in this catalogue 63209 — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (1 parts) 63223 — CABLE, SLIDING ROOF DRIVE, RH (4 parts) 63207 — RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH (1 parts) 63218B — CHANNEL, ROOF DRIP, REAR (1 parts) 63224 — CABLE, SLIDING ROOF DRIVE, LH (4 parts) 9017906115 — not listed in this catalogue 63208 — RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH (1 parts) 9016250007 — not listed in this catalogue 9322914008 — not listed in this catalogue 63221 — CASING, SLIDING ROOF CABLE GUIDE (1 parts) 9018905058 — not listed in this catalogue 9016250007 — not listed in this catalogue 63255 — COVER, SLIDING ROOF GUIDE RAIL, RH (1 parts) 9046804122 — not listed in this catalogue 63256 — COVER, SLIDING ROOF GUIDE RAIL, LH (1 parts) 63699A — SEAL, SLIDING ROOF GUIDE RAIL (1 parts) 9018905058 — not listed in this catalogue 63252D — WEATHERSTRIP, SLIDING ROOF HOUSING (1 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (1 parts) 63203F — HOUSING SUB-ASSY, SLIDING ROOF (1 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (1 parts) 9338516018 — not listed in this catalogue 9017906070 — not listed in this catalogue 9338516018 — not listed in this catalogue 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (1 parts) 9017906083 — not listed in this catalogue 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (1 parts) 63265B — GEAR, SLIDING ROOF DRIVE (1 parts) 63260A — GEAR SUB-ASSY, SLIDING ROOF DRIVE (3 parts) 9010506082 — not listed in this catalogue 9616000400 — not listed in this catalogue 9017906070 — not listed in this catalogue 9011906157 — not listed in this catalogue 9338516016 — not listed in this catalogue 9338516018 — not listed in this catalogue 9338516018 — not listed in this catalogue 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (1 parts) 9046714001 — not listed in this catalogue 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (1 parts) 9046714001 — not listed in this catalogue 9338516018 — not listed in this catalogue 9046714001 — not listed in this catalogue 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (3 parts) 9046714001 — not listed in this catalogue 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (3 parts) 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (3 parts) 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (3 parts)
MBM962D · 36 callouts, 33 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
63201G — Glass Sub-assy, Sliding Roof
63201-20060 note Glass Sub-assy, Sliding Roof
1987-12 → 1989-10 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63201-20061 note Glass Sub-assy, Sliding Roof
1989-10 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63203F — Housing Sub-assy, Sliding Roof
63203-20070 Housing Sub-assy, Sliding Roof
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63207 — Rail Sub-assy, Sliding Roof Guide, RH
63207-30040 Rail Sub-assy, Sliding Roof Guide, RH
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63208 — Rail Sub-assy, Sliding Roof Guide, LH
63208-30040 Rail Sub-assy, Sliding Roof Guide, LH
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63209 — Panel Sub-assy, Roof Wind Deflector
63209-20050 Panel Sub-assy, Roof Wind Deflector
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63215A — Moulding, Roof Window, Upper
63215-30020 Moulding, Roof Window, Upper
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63217G — Garnish, Sliding Roof Side, RH
63217-30030-01 note Garnish, Sliding Roof Side, RH
1987-12 → 1992-08 ended
ST171 LB GCC —
63217-30030-01 note Garnish, Sliding Roof Side, RH
1987-12 → 1992-08 ended
AT171,CT170;ST171 SED GCC;ST171 (LB,SED) +2 —
63218A — Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-14020 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1987-12 → 1992-08 ended
ST171 LB CBR —
63249-20050 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63249-20150 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1987-12 → 1992-08 ended
AT171,CT170,ST171 SED (CBR,DSL) —
63218B — Channel, Roof Drip, Rear
63218-30030 Channel, Roof Drip, Rear
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63218G — Garnish, Sliding Roof Side, LH
63218-30040-01 note Garnish, Sliding Roof Side, LH
1987-12 → 1992-08 ended
AT171,CT170;ST171 SED GCC;ST171 (LB,SED) +2 —
63218-30040-01 note Garnish, Sliding Roof Side, LH
1987-12 → 1992-08 ended
ST171 LB GCC —
63219A — Garnish, Sliding Roof, Rear
63219-30030 Garnish, Sliding Roof, Rear
1987-12 → 1991-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63219-30030-20 note Garnish, Sliding Roof, Rear
1991-08 → 1992-08 ended
ST171 GT —
63219-30030-20 note Garnish, Sliding Roof, Rear
1991-08 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (EXS,GL,GX,XL) (CBR,DSL) —
63221 — Casing, Sliding Roof Cable Guide
63221-30040 Casing, Sliding Roof Cable Guide
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63223 — Cable, Sliding Roof Drive, RH
63223-20060 Cable, Sliding Roof Drive, RH
1987-12 → 1988-12 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63223-20061 Cable, Sliding Roof Drive, RH
1988-12 → 1989-04 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63223-20062 Cable, Sliding Roof Drive, RH
1989-04 → 1989-06 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63223-20063 Cable, Sliding Roof Drive, RH
1989-06 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63224 — Cable, Sliding Roof Drive, LH
63224-20060 Cable, Sliding Roof Drive, LH
1987-12 → 1988-12 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63224-20061 Cable, Sliding Roof Drive, LH
1988-12 → 1989-04 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63224-20062 Cable, Sliding Roof Drive, LH
1989-04 → 1989-06 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63224-20063 Cable, Sliding Roof Drive, LH
1989-06 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-20040 Bracket, Sliding Roof Housing Front Mounting, RH
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63242-20020 Bracket, Sliding Roof Housing Front Mounting, LH
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-20050 Bracket, Sliding Roof Housing Center Mounting, RH
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-20050 Bracket, Sliding Roof Housing Center Mounting, LH
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-20020 Bracket, Sliding Roof Housing Rear Mounting, RH
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63246-20020 Bracket, Sliding Roof Housing Rear Mounting, LH
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63251H — Weatherstrip, Sliding Roof
63251-30020 Weatherstrip, Sliding Roof
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63252D — Weatherstrip, Sliding Roof Housing
63252-20020 Weatherstrip, Sliding Roof Housing
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63255 — Cover, Sliding Roof Guide Rail, RH
63255-20020 Cover, Sliding Roof Guide Rail, RH
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63256 — Cover, Sliding Roof Guide Rail, LH
63255-20020 Cover, Sliding Roof Guide Rail, LH
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63259B — Holder, Sliding Roof Weatherstrip
63259-30040 Holder, Sliding Roof Weatherstrip
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63260A — Gear Sub-assy, Sliding Roof Drive
63260-20050 Gear Sub-assy, Sliding Roof Drive
1987-12 → 1988-12 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63260-20051 Gear Sub-assy, Sliding Roof Drive
1988-12 → 1991-07 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63260-20052 Gear Sub-assy, Sliding Roof Drive
1991-07 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63265B — Gear, Sliding Roof Drive
63265-20010 Gear, Sliding Roof Drive
1989-11 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63267A — Protector, Sliding Roof Weatherstrip, RH
63267-30040 Protector, Sliding Roof Weatherstrip, RH
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63268A — Protector, Sliding Roof Weatherstrip, LH
63268-30040 Protector, Sliding Roof Weatherstrip, LH
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63277C — Shim, Sliding Roof Panel
63277-20020 note Shim, Sliding Roof Panel
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63277-20030 note Shim, Sliding Roof Panel
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63277-20040 note Shim, Sliding Roof Panel
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63277-20050 note Shim, Sliding Roof Panel
1987-12 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63635A — Garnish, Sliding Roof, Front
63635-30010 Garnish, Sliding Roof, Front
1987-12 → 1991-08 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
63635-30010-20 note Garnish, Sliding Roof, Front
1991-08 → 1992-08 ended
ST171 GT —
63635-30010-20 note Garnish, Sliding Roof, Front
1991-08 → 1992-08 ended
AT171,CT170,ST171 (LB,SED) (EXS,GL,GX,XL) (CBR,DSL) —
63699A — Seal, Sliding Roof Guide Rail
63699-12040 Seal, Sliding Roof Guide Rail
1987-12 → 1992-03 ended
AT171,CT170,ST171 (LB,SED) (CBR,DSL) —
