Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

17 part groups · 40 illustrations

Illustrations

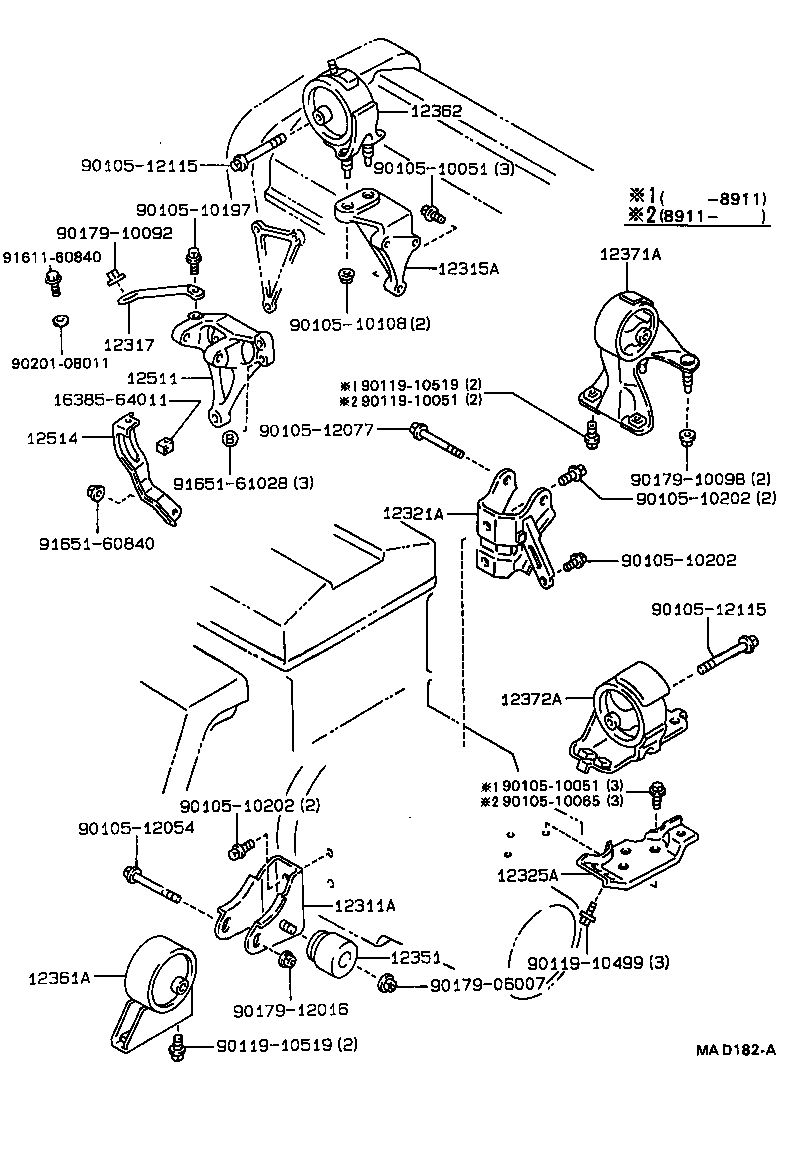

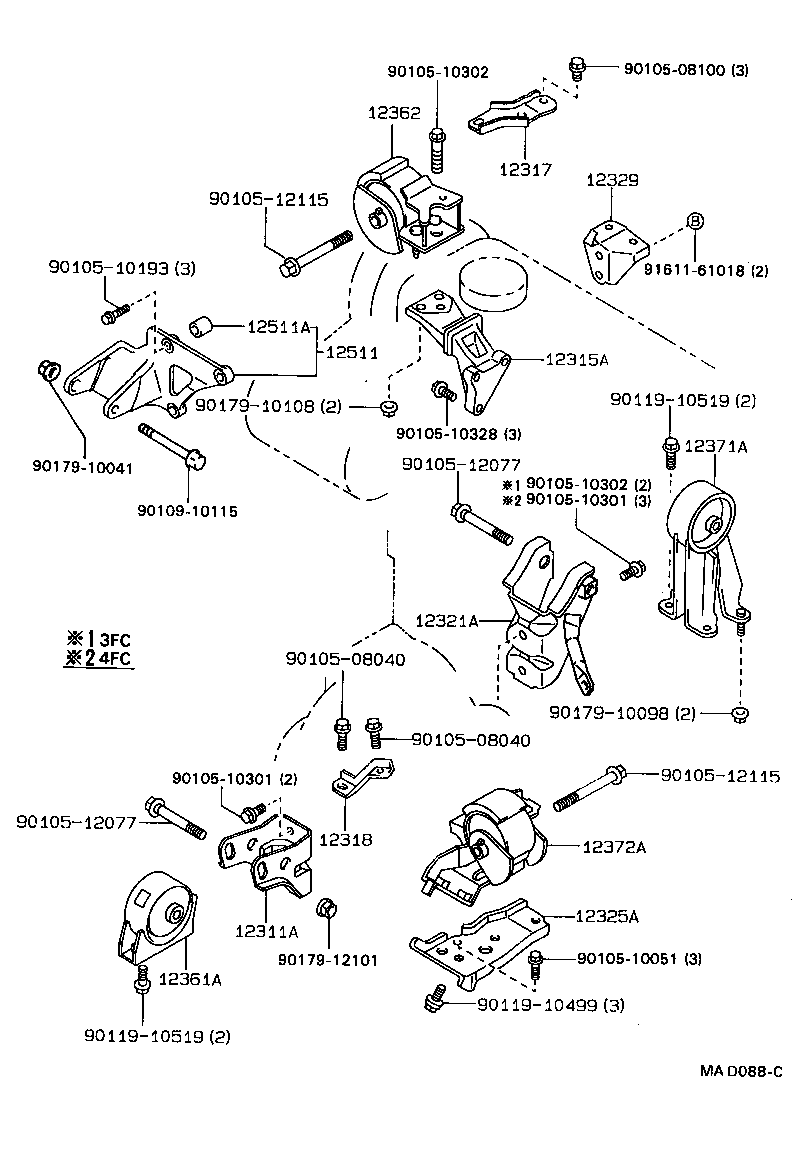

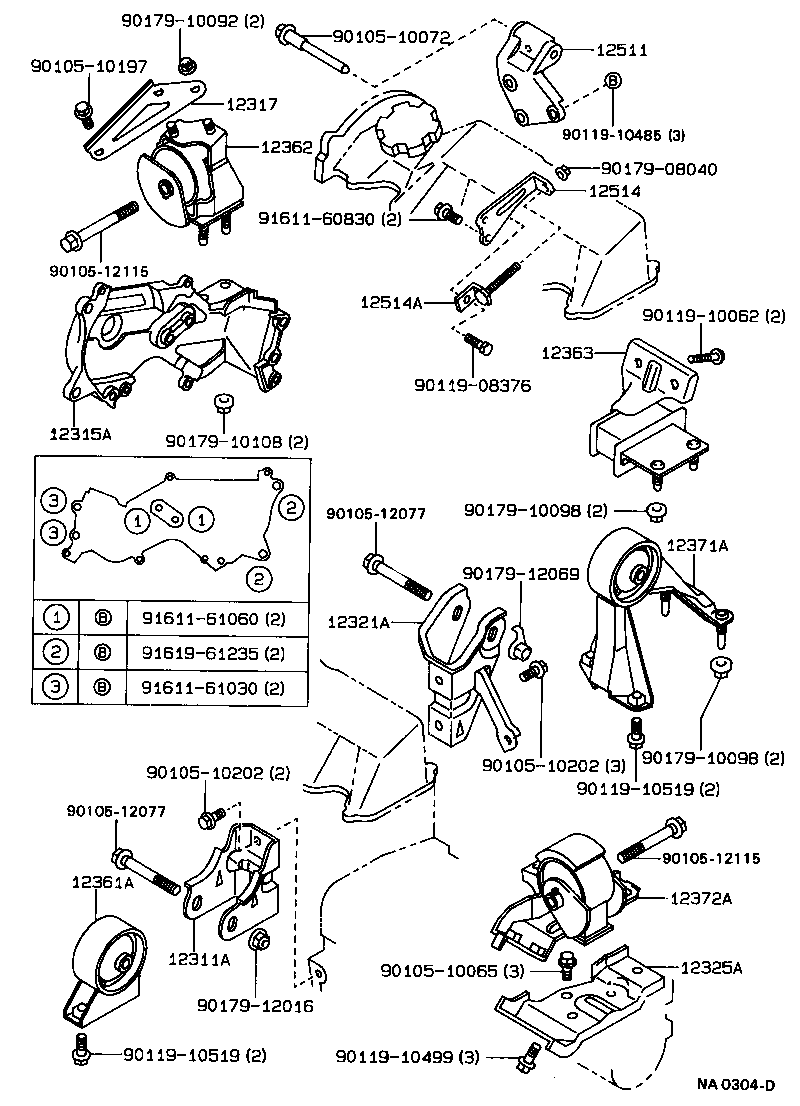

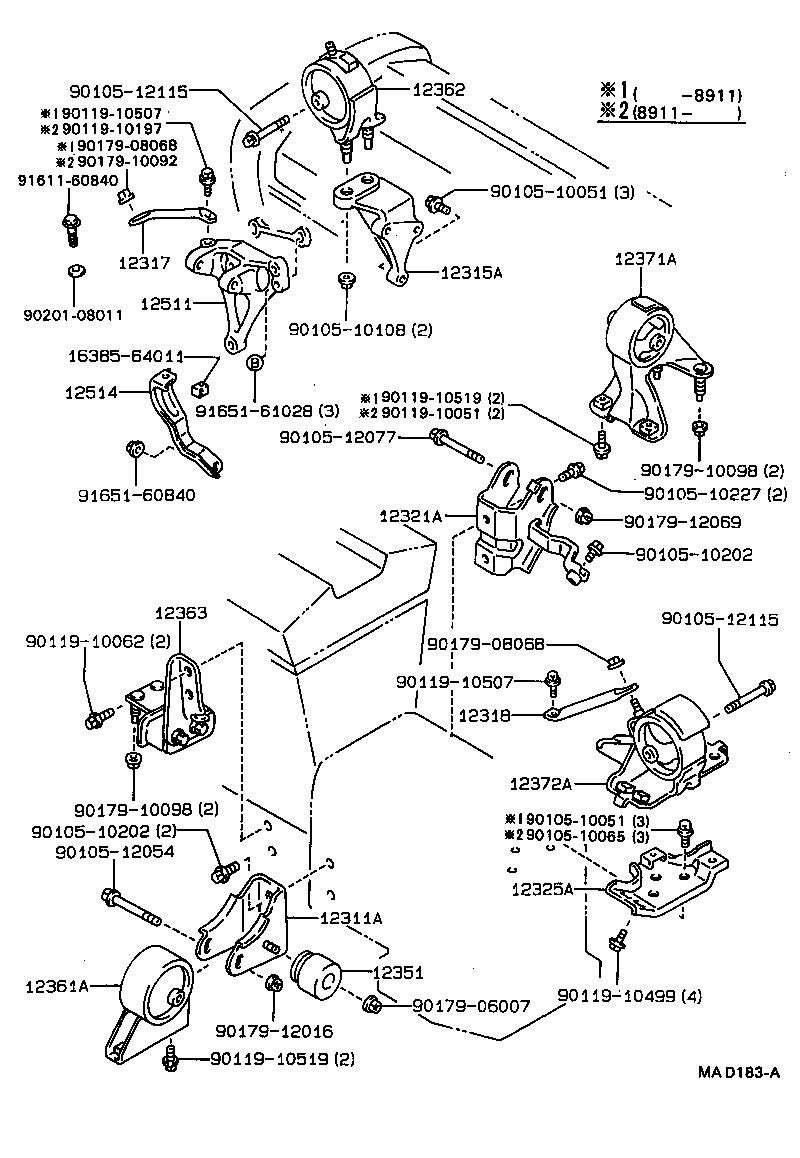

Figure MAD087C MAD087C 1987-12 → — Figure MAD088C MAD088C 1987-12 → — Figure MAD087C MAD087C 1987-12 → — Figure MAD088C MAD088C 1987-12 → — Figure MAD182A MAD182A 1987-12 → — Figure MAD183A MAD183A 1987-12 → — Figure NA0304D NA0304D 1987-12 → — Figure NA0304D NA0304D 1987-12 → — Figure MAD087C MAD087C 1987-12 → — Figure MAD088C MAD088C 1987-12 → — Figure MAD182A MAD182A 1987-12 → — Figure MAD183A MAD183A 1987-12 → — Figure NA0304D NA0304D 1987-12 → — Figure MAD087C MAD087C 1987-12 → — Figure MAD088C MAD088C 1987-12 → — Figure MAD182A MAD182A 1987-12 → — Figure MAD183A MAD183A 1987-12 → — Figure NA0304D NA0304D 1987-12 → — Figure MAD087C MAD087C 1987-12 → — Figure MAD088C MAD088C 1987-12 → — Figure MAD182A MAD182A 1987-12 → — Figure MAD183A MAD183A 1987-12 → — Figure NA0304D NA0304D 1987-12 → — Figure MAD087C MAD087C 1987-12 → — Figure MAD088C MAD088C 1987-12 → — Figure MAD182A MAD182A 1987-12 → — Figure MAD183A MAD183A 1987-12 → — Figure NA0304D NA0304D 1987-12 → — Figure MAD087C MAD087C 1987-12 → — Figure MAD088C MAD088C 1987-12 → — Figure MAD182A MAD182A 1987-12 → — Figure MAD183A MAD183A 1987-12 → — Figure NA0304D NA0304D 1987-12 → — Figure MAD087C MAD087C 1987-12 → — Figure MAD088C MAD088C 1987-12 → — Figure MAD182A MAD182A 1987-12 → — Figure MAD183A MAD183A 1987-12 → — Figure NA0304D NA0304D 1987-12 → — Figure MAD182A MAD182A 1987-12 → — Figure MAD183A MAD183A 1987-12 → —

Part groups

PNCDescription
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12317 Stay, Engine Mounting, RH
12318 Stay, Engine Mounting, LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12329 Support, Engine Mounting Stay
12351 Damper, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12363 Insulator, Engine Mounting, Center
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
