Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

14 part groups · 4 illustrations

Illustrations

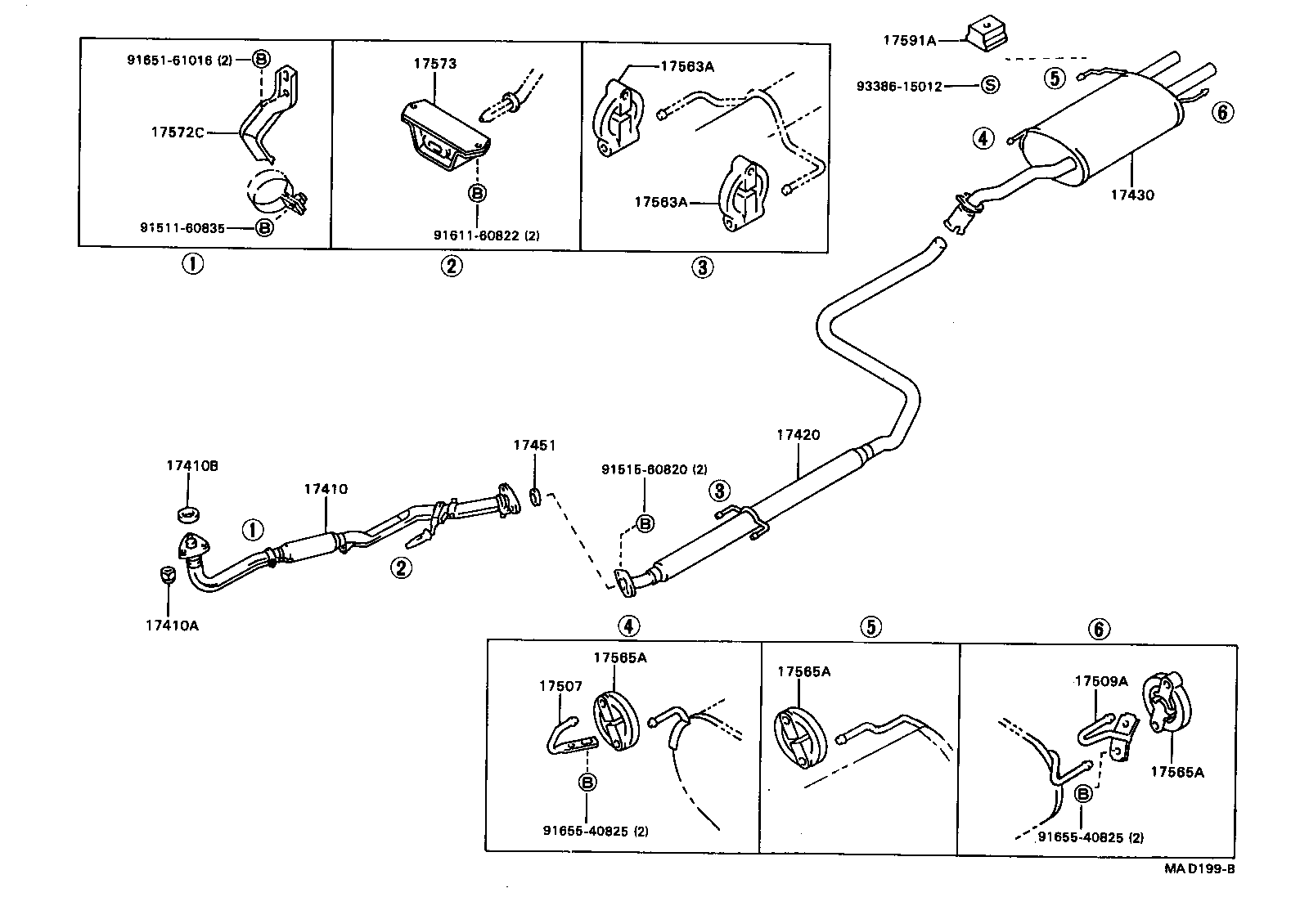

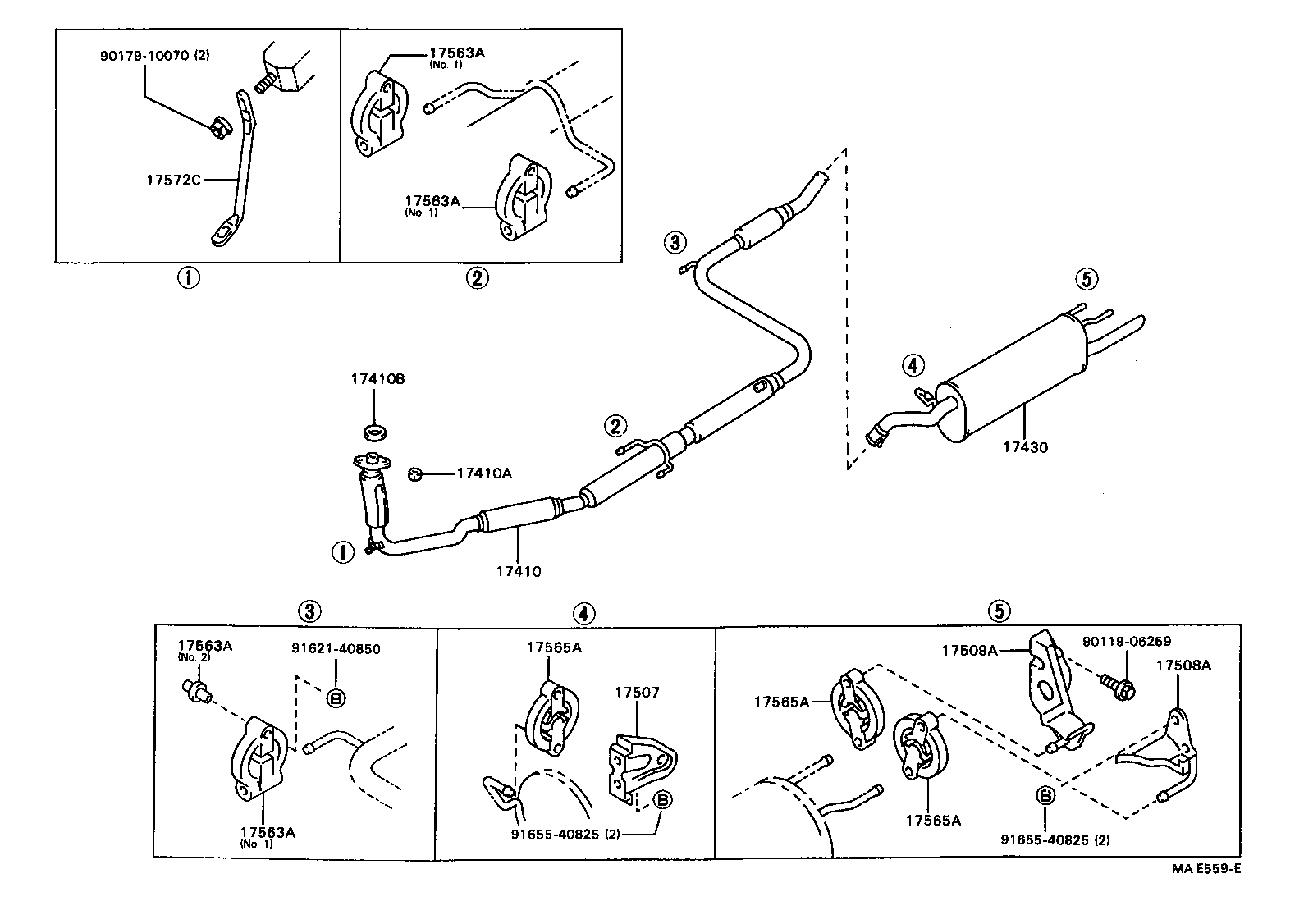

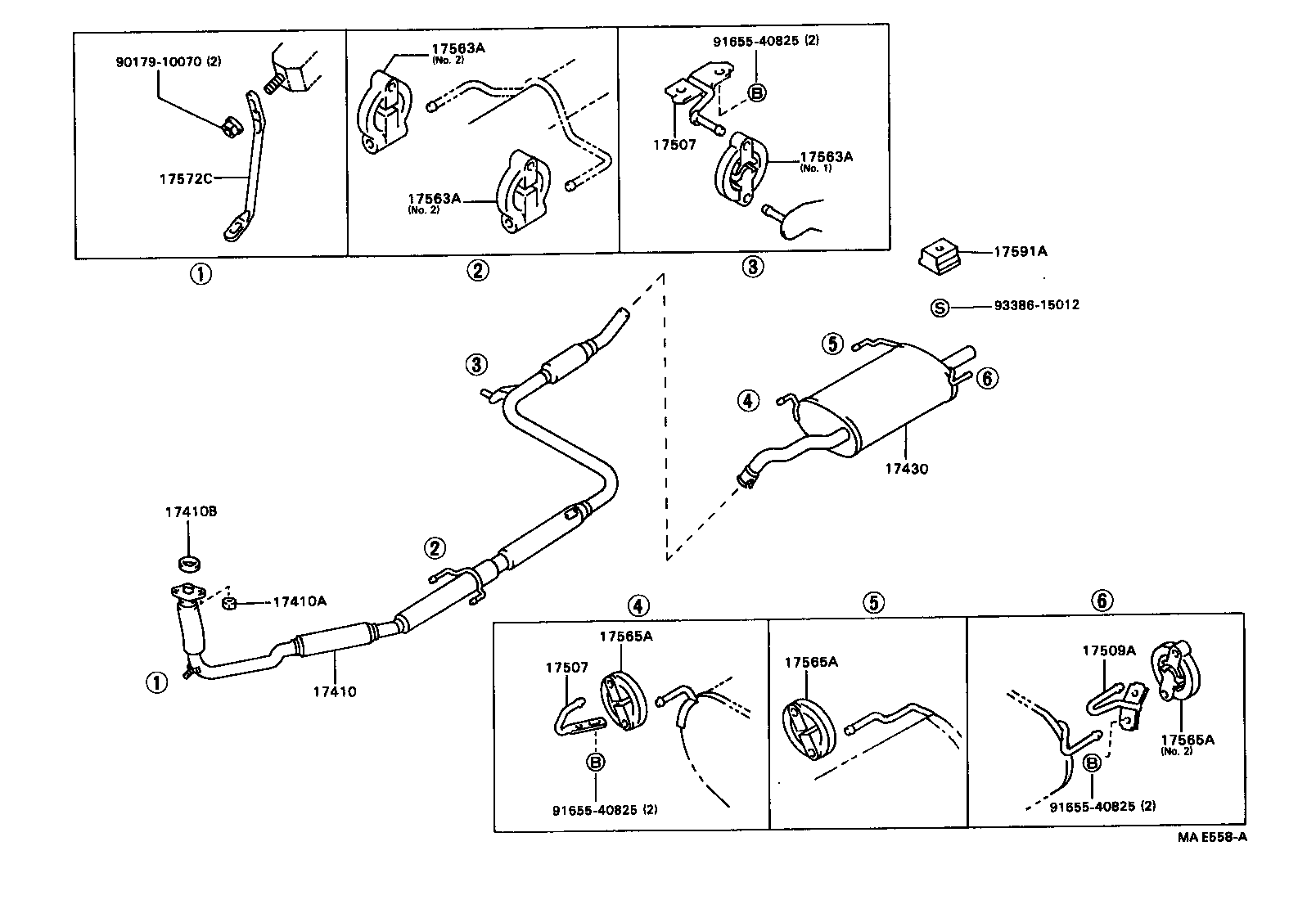

Figure MAD198B MAD198B 1987-12 → — Figure MAD199B MAD199B 1987-12 → — Figure MAE558A MAE558A 1987-12 → — Figure MAE559E MAE559E 1987-12 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17591A Stopper, Exhaust Pipe Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
