Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

21 part groups · 48 illustrations

Illustrations

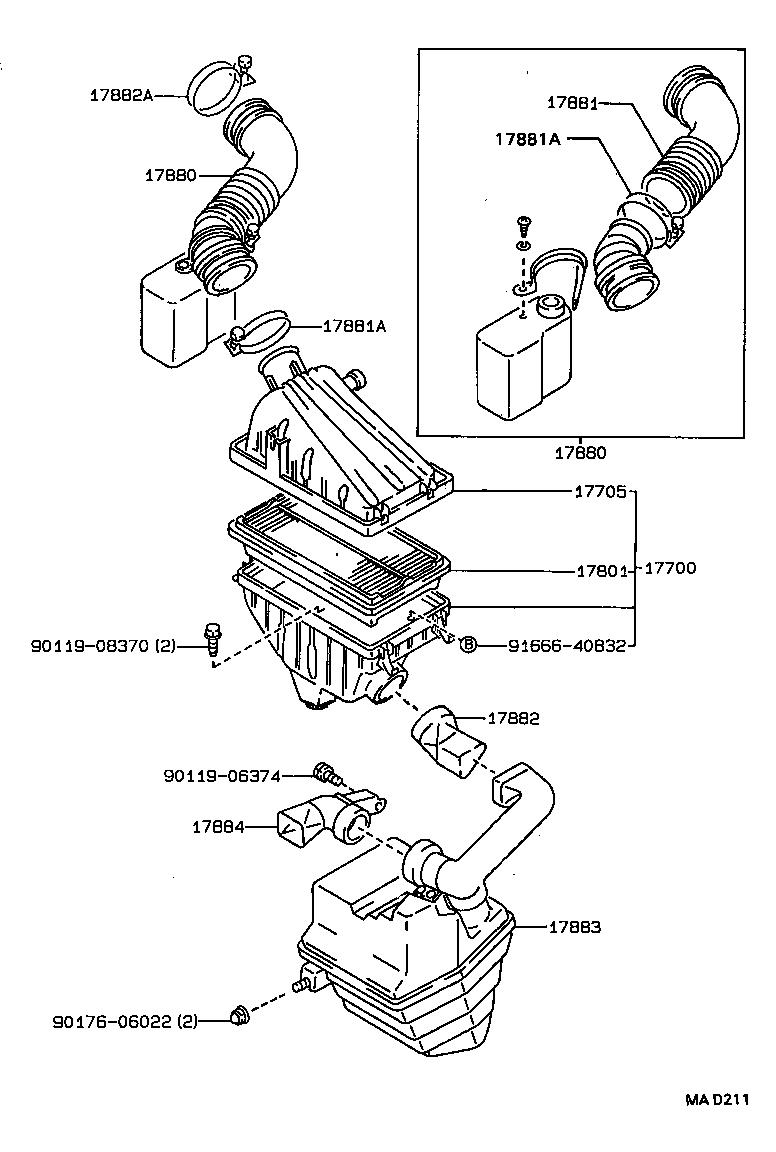

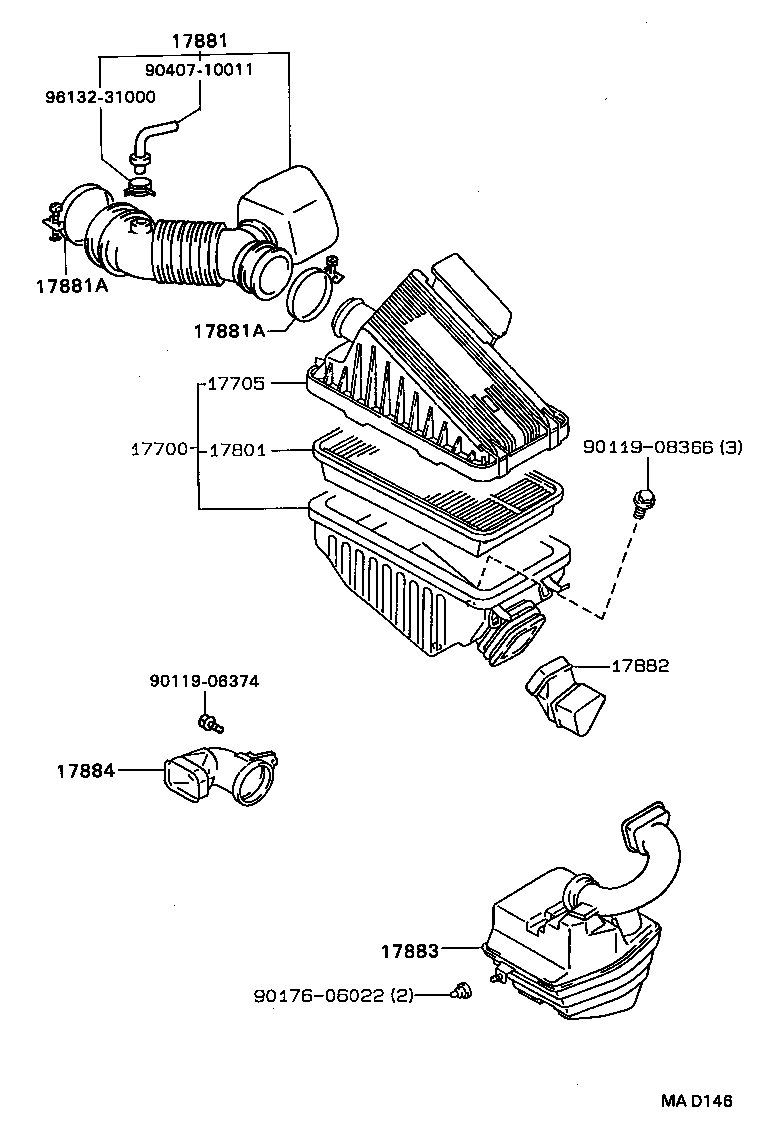

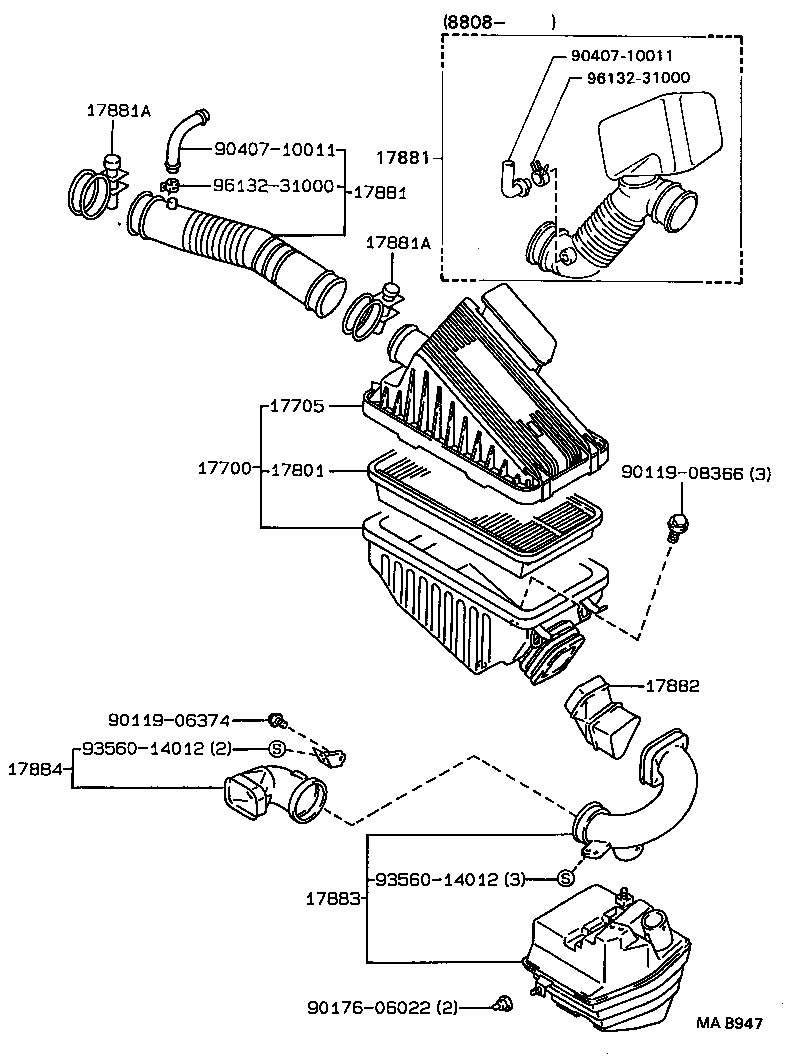

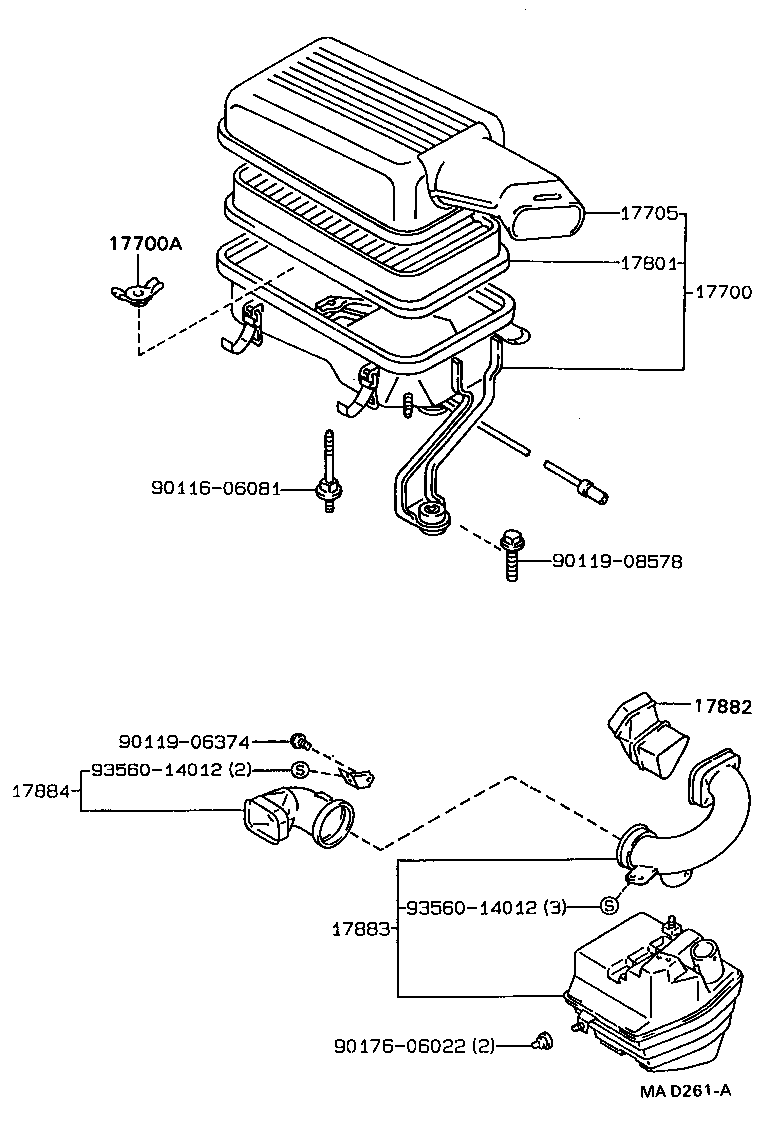

Figure NA0423B NA0423B 1987-12 → — Figure NA0423B NA0423B 1987-12 → — Figure MAD261A MAD261A 1987-12 → — Figure MAD219A MAD219A 1987-12 → — Figure MAD211 MAD211 1987-12 → — Figure MAB947 MAB947 1987-12 → 1989-11 Figure MAD146 MAD146 1989-11 → — Figure MAB947 MAB947 1987-12 → 1989-11 Figure MAD146 MAD146 1989-11 → — Figure NA0423B NA0423B 1987-12 → — Figure MAD261A MAD261A 1987-12 → — Figure MAD219A MAD219A 1987-12 → — Figure MAD211 MAD211 1987-12 → — Figure MAB947 MAB947 1987-12 → 1989-11 Figure MAD146 MAD146 1989-11 → — Figure NA0423B NA0423B 1987-12 → — Figure MAD261A MAD261A 1987-12 → — Figure MAD219A MAD219A 1987-12 → — Figure MAD211 MAD211 1987-12 → — Figure MAB947 MAB947 1987-12 → 1989-11 Figure MAD146 MAD146 1989-11 → — Figure NA0423B NA0423B 1987-12 → — Figure MAD261A MAD261A 1987-12 → — Figure MAD219A MAD219A 1987-12 → — Figure MAD211 MAD211 1987-12 → — Figure MAB947 MAB947 1987-12 → 1989-11 Figure MAD146 MAD146 1989-11 → — Figure NA0423B NA0423B 1987-12 → — Figure MAD261A MAD261A 1987-12 → — Figure MAD219A MAD219A 1987-12 → — Figure MAD211 MAD211 1987-12 → — Figure MAB947 MAB947 1987-12 → 1989-11 Figure MAD146 MAD146 1989-11 → — Figure NA0423B NA0423B 1987-12 → — Figure MAD261A MAD261A 1987-12 → — Figure MAD219A MAD219A 1987-12 → — Figure MAD211 MAD211 1987-12 → — Figure MAB947 MAB947 1987-12 → 1989-11 Figure MAD146 MAD146 1989-11 → — Figure NA0423B NA0423B 1987-12 → — Figure MAD261A MAD261A 1987-12 → — Figure MAD219A MAD219A 1987-12 → — Figure MAD211 MAD211 1987-12 → — Figure MAB947 MAB947 1987-12 → 1989-11 Figure MAD146 MAD146 1989-11 → — Figure MAD261A MAD261A 1987-12 → — Figure MAD219A MAD219A 1987-12 → — Figure MAD211 MAD211 1987-12 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17730 Precleaner Assy, Air W/Hose
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17730C Case, Precleaner
17730E Bracket, Precleaner, NO.1
17744 Cup, Precleaner
17751 Inlet, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17884 Hose, Air Cleaner, NO.4
59105 Pipe Sub-assy, Hot Air Intake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
