Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 79 illustrations

Illustrations

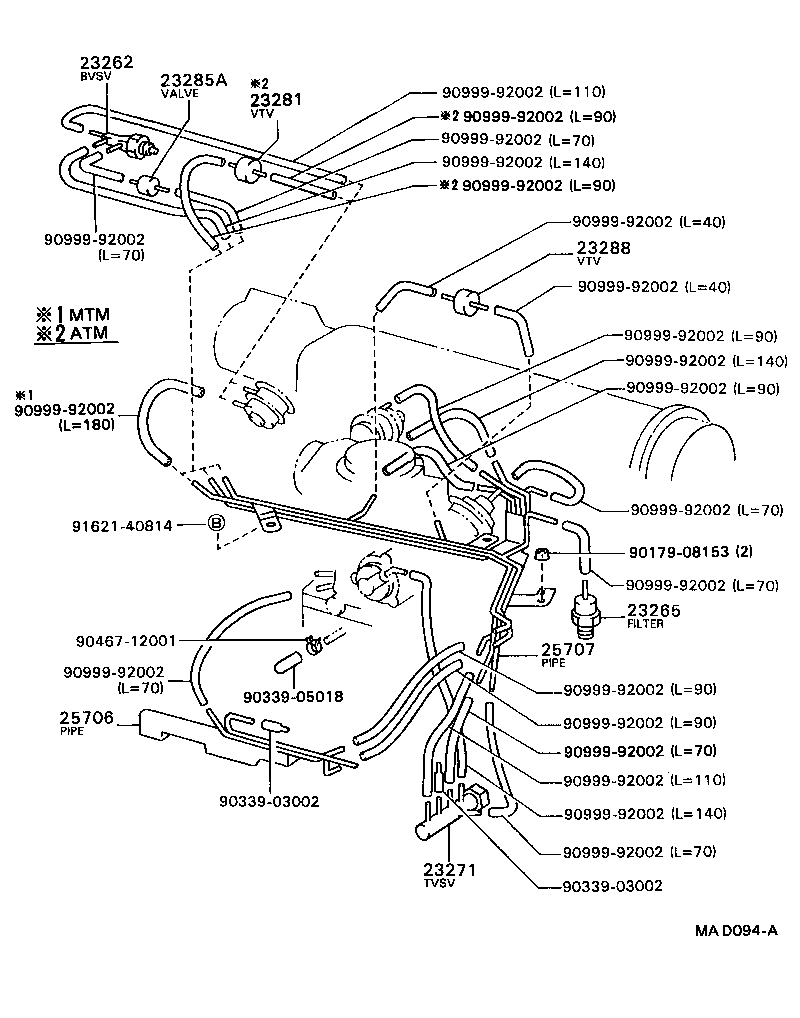

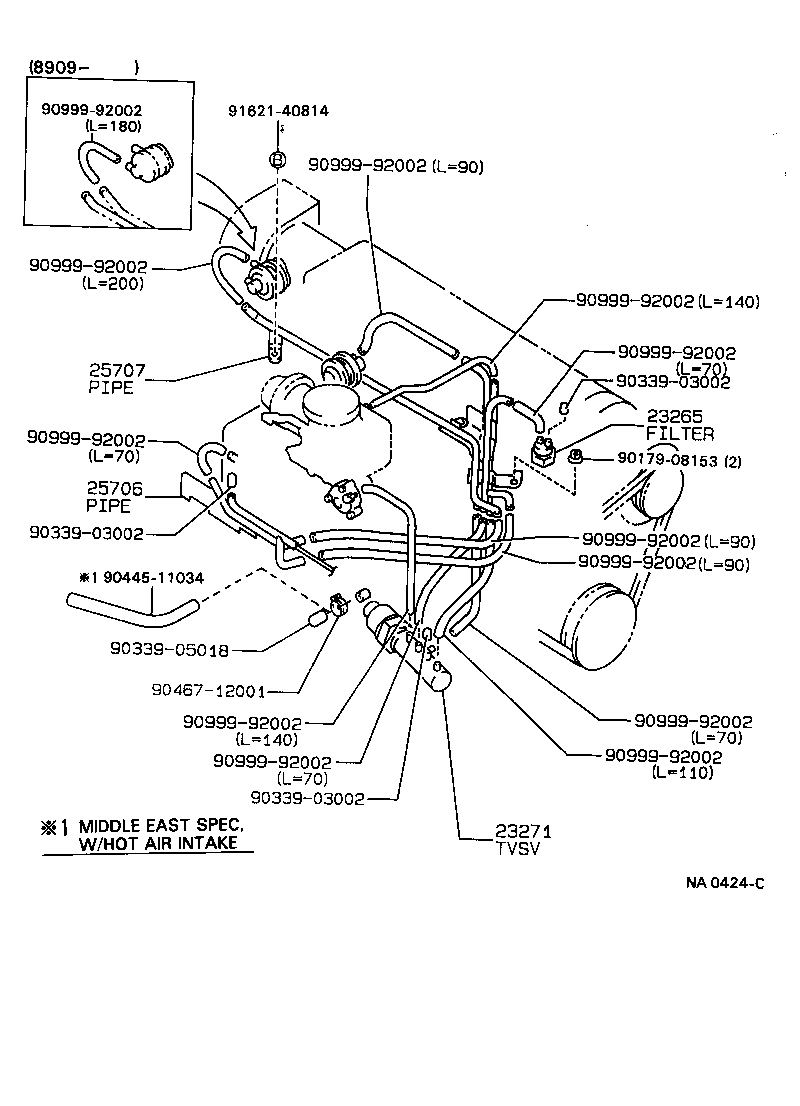

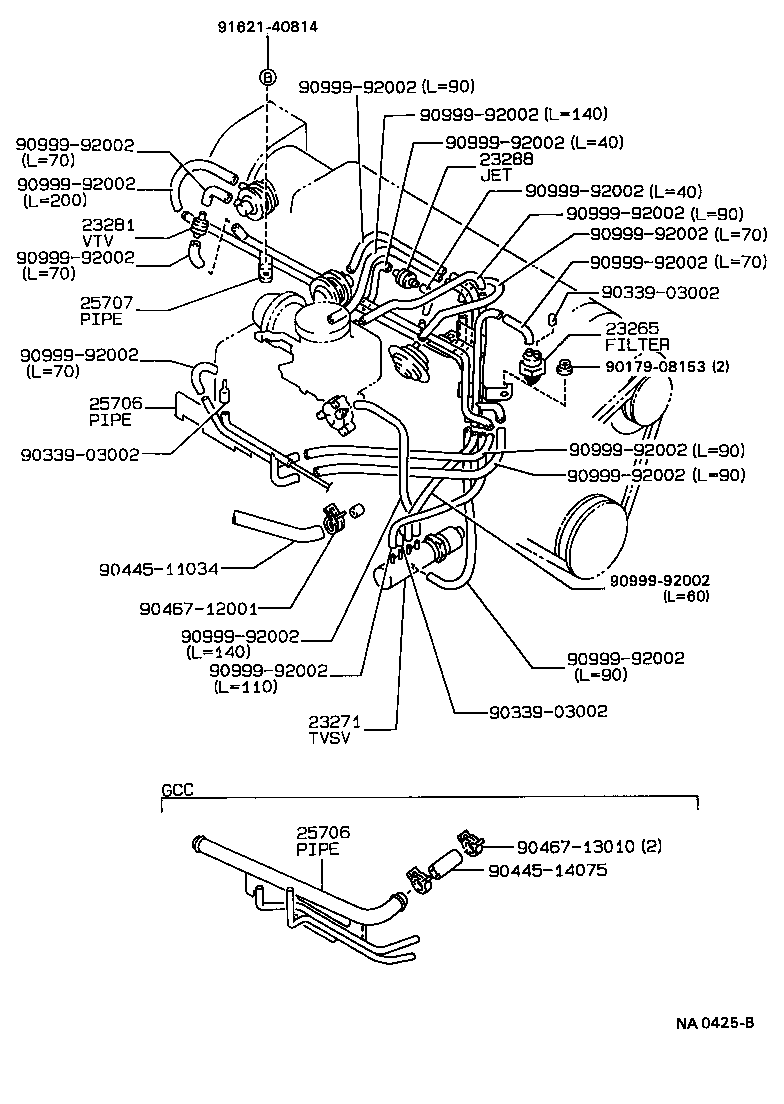

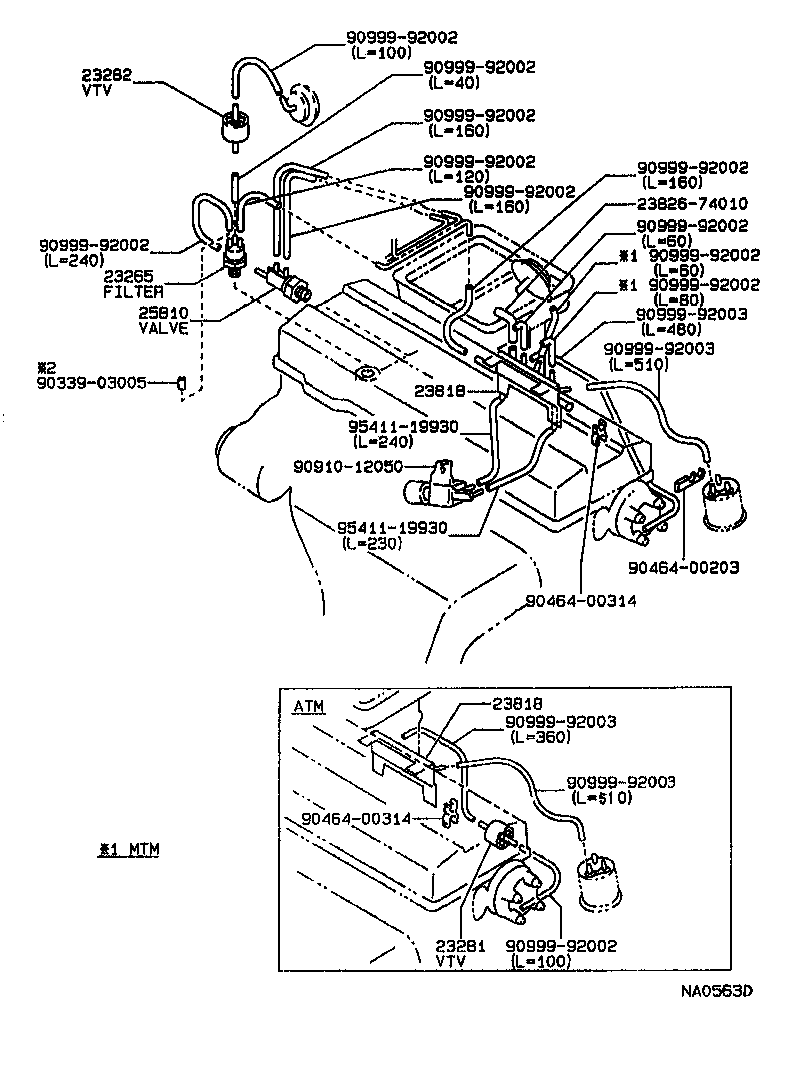

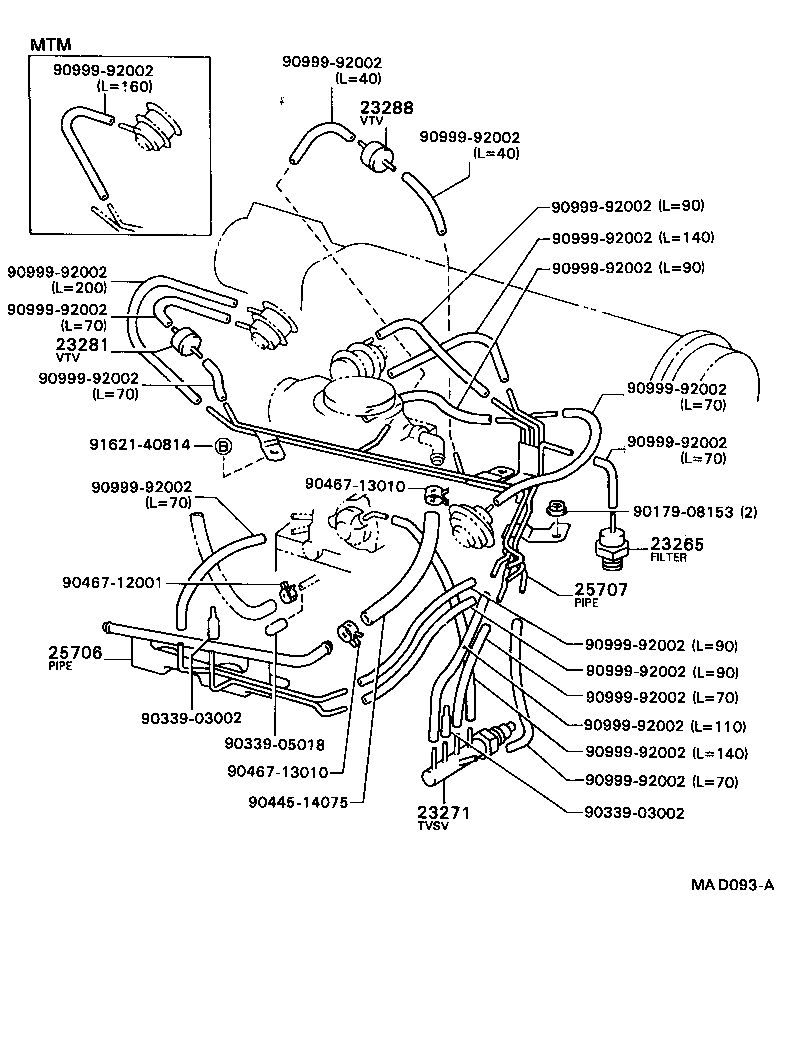

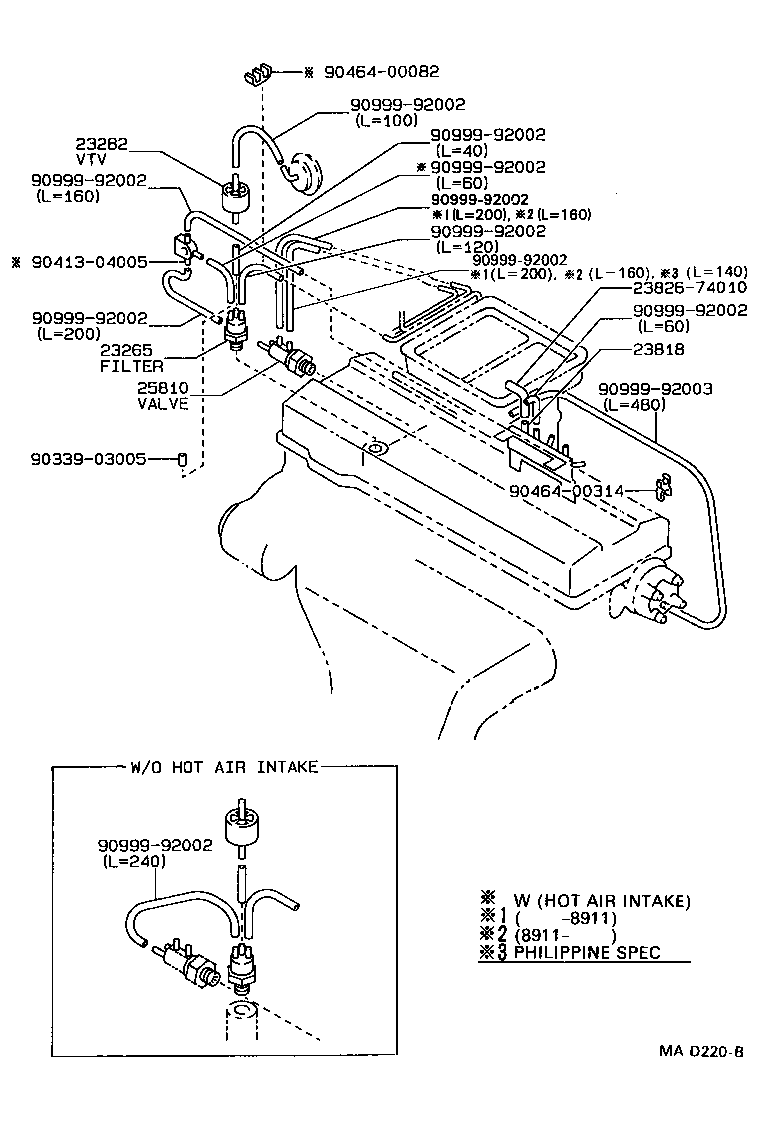

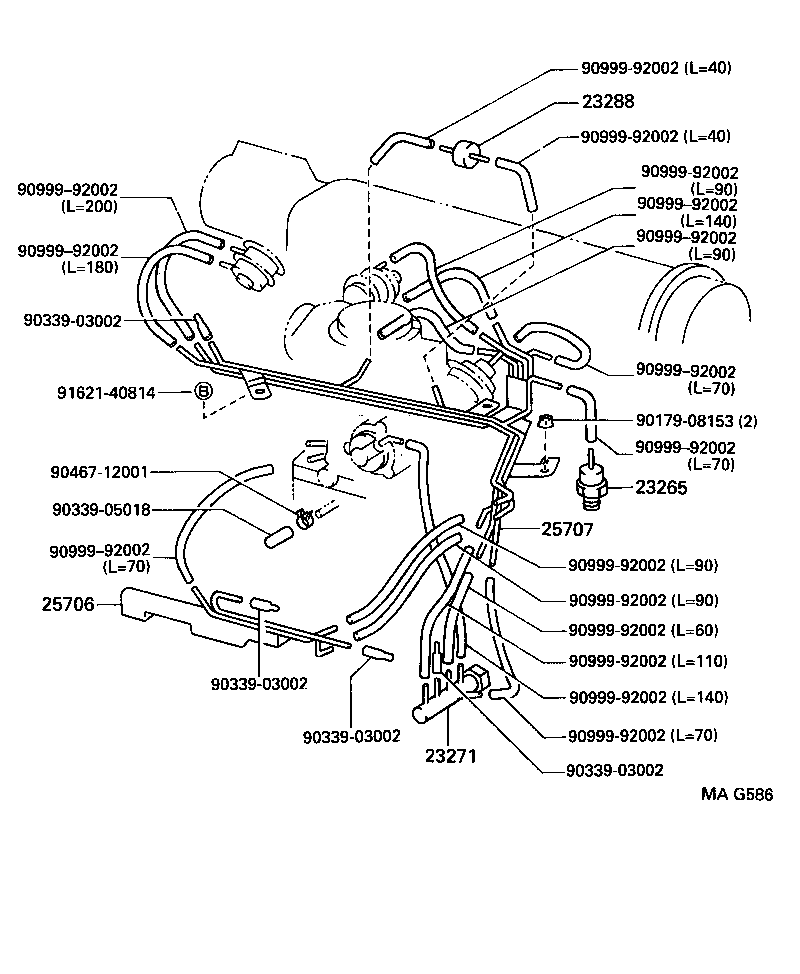

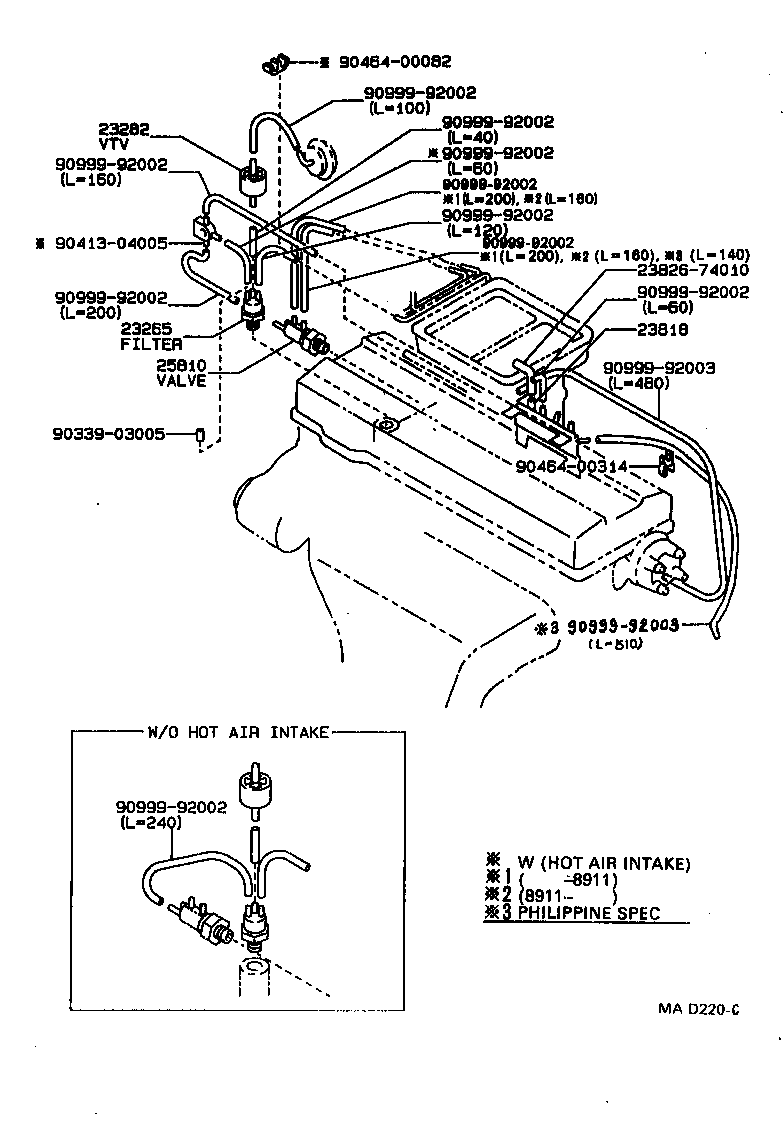

Figure MA9504B MA9504B 1987-12 → — Figure NA0424C NA0424C 1987-12 → — Figure NA0425B NA0425B 1987-12 → 1988-02 Figure NA0425B NA0425B 1987-12 → 1989-11 Figure MAD093A MAD093A 1989-11 → — Figure MAD094A MAD094A 1989-07 → — Figure MAD094A MAD094A 1989-11 → — Figure MAG586 MAG586 1992-05 → — Figure MA9504B MA9504B 1987-12 → — Figure NA0424C NA0424C 1987-12 → — Figure NA0425B NA0425B 1987-12 → 1988-02 Figure NA0425B NA0425B 1987-12 → 1989-11 Figure MAD093A MAD093A 1989-11 → — Figure MAD094A MAD094A 1989-07 → — Figure MAD094A MAD094A 1989-11 → — Figure MAG586 MAG586 1992-05 → — Figure MAD220B MAD220B 1987-12 → — Figure NA0563D NA0563D 1987-12 → — Figure MAD220C MAD220C 1987-12 → — Figure MA9504B MA9504B 1987-12 → — Figure MA9504B MA9504B 1987-12 → — Figure NA0424C NA0424C 1987-12 → — Figure NA0425B NA0425B 1987-12 → 1988-02 Figure NA0425B NA0425B 1987-12 → 1989-11 Figure MAD093A MAD093A 1989-11 → — Figure MAD094A MAD094A 1989-07 → — Figure MAD094A MAD094A 1989-11 → — Figure MAG586 MAG586 1992-05 → — Figure MAD220B MAD220B 1987-12 → — Figure NA0563D NA0563D 1987-12 → — Figure MAD220C MAD220C 1987-12 → — Figure MA9504B MA9504B 1987-12 → — Figure NA0424C NA0424C 1987-12 → — Figure NA0425B NA0425B 1987-12 → 1988-02 Figure NA0425B NA0425B 1987-12 → 1989-11 Figure MAD093A MAD093A 1989-11 → — Figure MAD094A MAD094A 1989-07 → — Figure MAD094A MAD094A 1989-11 → — Figure MAG586 MAG586 1992-05 → — Figure MAD220B MAD220B 1987-12 → — Figure NA0563D NA0563D 1987-12 → — Figure MAD220C MAD220C 1987-12 → — Figure MA9504B MA9504B 1987-12 → — Figure NA0424C NA0424C 1987-12 → — Figure NA0425B NA0425B 1987-12 → 1988-02 Figure NA0425B NA0425B 1987-12 → 1989-11 Figure MAD093A MAD093A 1989-11 → — Figure MAD094A MAD094A 1989-07 → — Figure MAD094A MAD094A 1989-11 → — Figure MAG586 MAG586 1992-05 → — Figure MAD220B MAD220B 1987-12 → — Figure NA0563D NA0563D 1987-12 → — Figure MAD220C MAD220C 1987-12 → — Figure MA9504B MA9504B 1987-12 → — Figure NA0424C NA0424C 1987-12 → — Figure NA0425B NA0425B 1987-12 → 1988-02 Figure NA0425B NA0425B 1987-12 → 1989-11 Figure MAD093A MAD093A 1989-11 → — Figure MAD094A MAD094A 1989-07 → — Figure MAD094A MAD094A 1989-11 → — Figure MAG586 MAG586 1992-05 → — Figure MAD220B MAD220B 1987-12 → — Figure NA0563D NA0563D 1987-12 → — Figure MAD220C MAD220C 1987-12 → — Figure MA9504B MA9504B 1987-12 → — Figure NA0424C NA0424C 1987-12 → — Figure NA0425B NA0425B 1987-12 → 1988-02 Figure NA0425B NA0425B 1987-12 → 1989-11 Figure MAD093A MAD093A 1989-11 → — Figure MAD094A MAD094A 1989-07 → — Figure MAD094A MAD094A 1989-11 → — Figure MAG586 MAG586 1992-05 → — Figure MAD220B MAD220B 1987-12 → — Figure NA0563D NA0563D 1987-12 → — Figure MAD220C MAD220C 1987-12 → — Figure MA9504B MA9504B 1987-12 → — Figure MAD220B MAD220B 1987-12 → — Figure NA0563D NA0563D 1987-12 → — Figure MAD220C MAD220C 1987-12 → —

Part groups

PNCDescription
17341D Hose, NO.1(FOR IDLE-UP)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23288 Jet, NO.1
23818 Pipe, Fuel Vapor Feed
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25810 Valve Assy, Bimetal
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
