Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

6 part groups · 6 illustrations

Illustrations

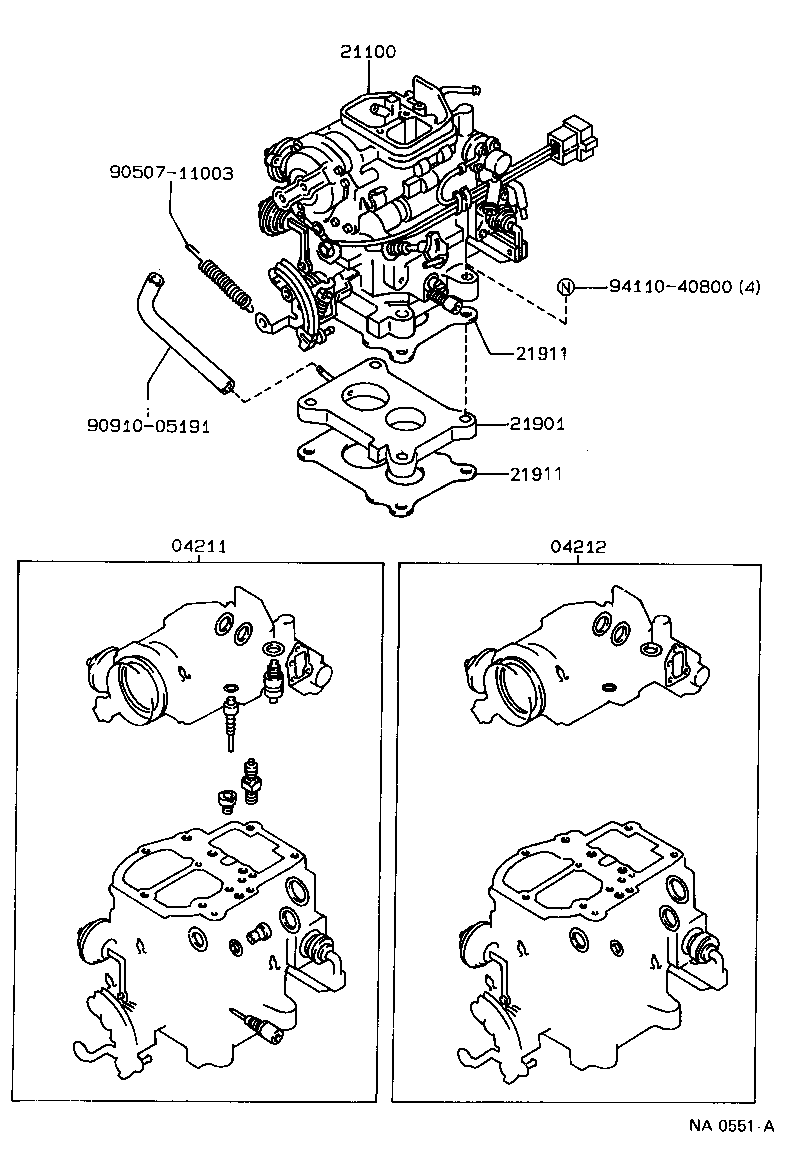

Figure MAC145 MAC145 1987-12 → — Figure MAC145 MAC145 1987-12 → — Figure NA0551A NA0551A 1987-12 → — Figure MAC145 MAC145 1987-12 → — Figure NA0551A NA0551A 1987-12 → — Figure NA0551A NA0551A 1987-12 → —

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21100 Carburetor Assy
21901 Insulator Sub-assy, Carburetor Heat, NO.1
21911 Gasket, Carburetor
21916 Gasket, Carburetor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
